Home >> Chrysler >> 2005 >> 300 Base >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P0196 To P0325 >> Diagnosis And Testing >> P0221-Throttle Position Sensor 2 Performance >> Circuit Schematic

Circuit Schematic

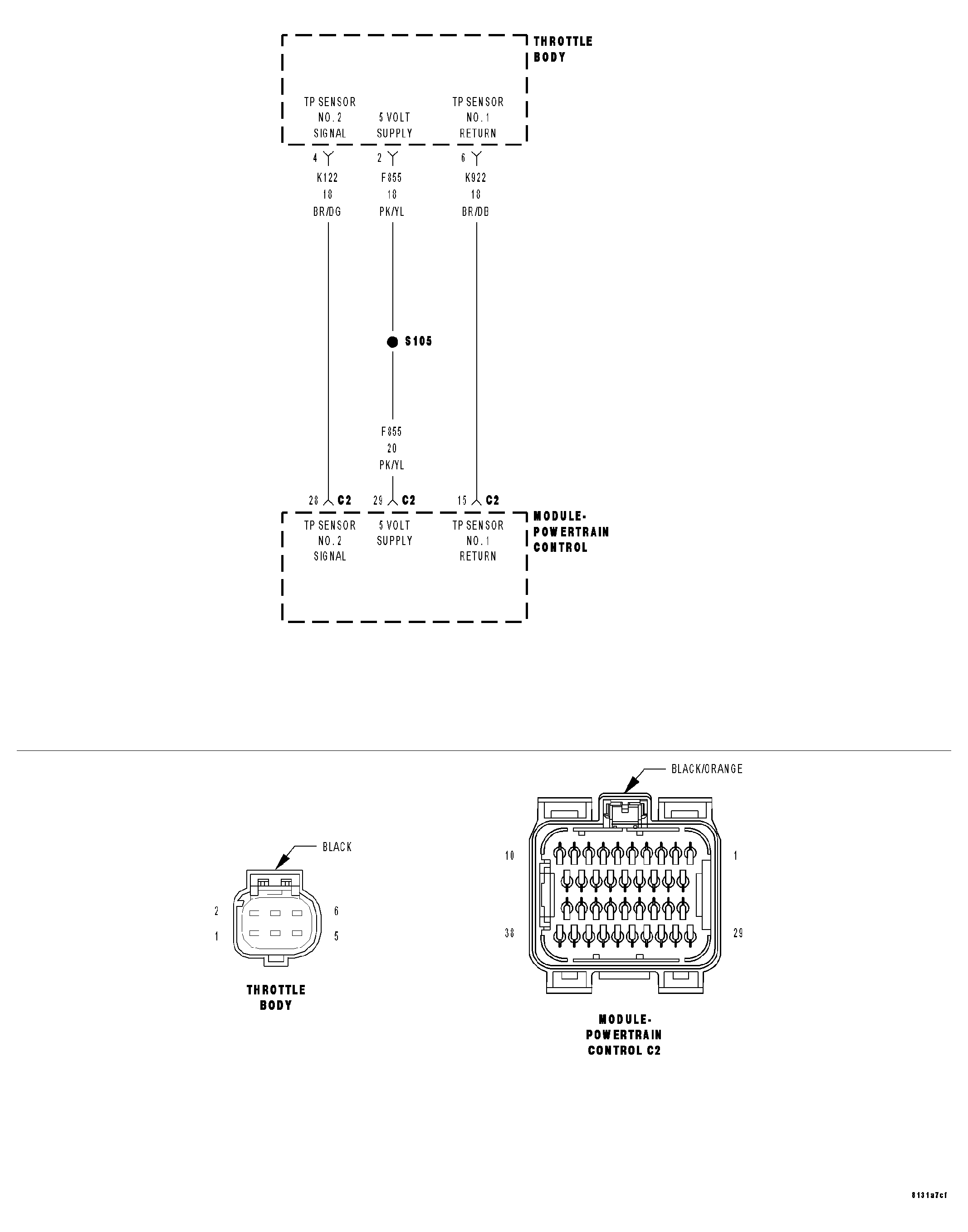

Fig 1: Throttle Position Sensor 2 Circuit Schematic

GC0014900

Courtesy of DAIMLERCHRYSLER CORP.

For the Engine System Schematic circuit diagram (Refer to ENGINE - SCHEMATICS AND DIAGRAMS) .
