Starter Motor: Removal: 2.7L

Disconnect negative battery cable
Install steering wheel holder locking steering wheel in straight-ahead position.
Raise vehicle and support.
Remove the underbody splash shield.

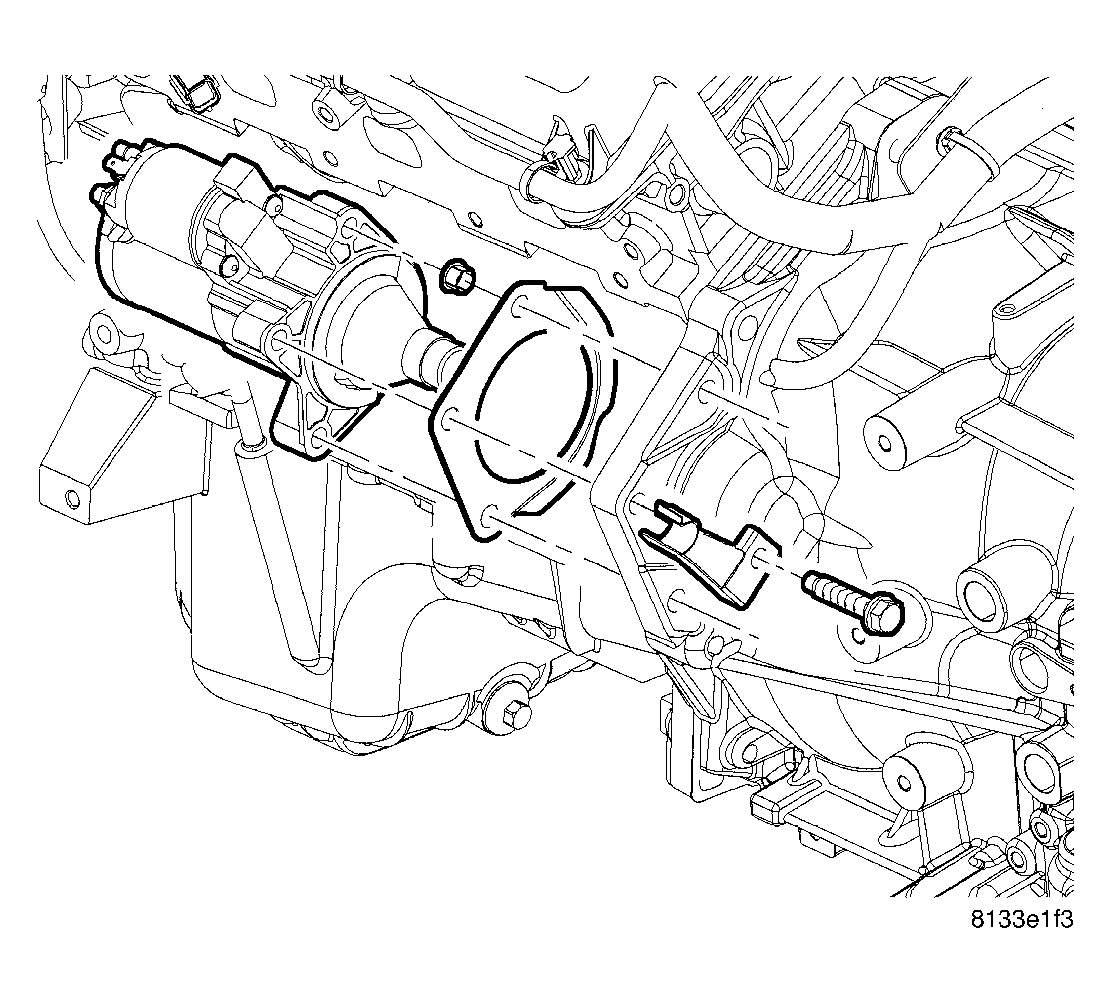

Fig 1: STARTER ASSEMBLY
Courtesy of DAIMLERCHRYSLER CORP.
Starter assembly.

Fig 2: STEERING SHAFT CENTER BOLT
Courtesy of DAIMLERCHRYSLER CORP.
Remove the intermediate steering shaft center bolt.

Fig 3: STEERING SHAFT CONNECTED
Courtesy of DAIMLERCHRYSLER CORP.
Bolt removed.

Fig 4: STEERING SHAFT REMOVED
Courtesy of DAIMLERCHRYSLER CORP.
Separate the intermediate steering shaft upper and lower shaft.

Fig 5: STARTER CABLE
Courtesy of DAIMLERCHRYSLER CORP.
Disconnect the electrical connection from the starter.

Fig 6: STARTER BOLTS
Courtesy of DAIMLERCHRYSLER CORP.
Remove the 3 starter mounting bolts and wiring clip.

Fig 7: STARTER REMOVAL/INSTALL
Courtesy of DAIMLERCHRYSLER CORP.
Pull starter forward and down.

Fig 8: STARTER REMOVAL/INSTALL
Courtesy of DAIMLERCHRYSLER CORP.
Work starter up and around exhaust.

Fig 9: STARTER REMOVAL/INSTALL
Courtesy of DAIMLERCHRYSLER CORP.
Work starter past the intermediate steering shaft.

Fig 10: STARTER REMOVAL/INSTALL
Courtesy of DAIMLERCHRYSLER CORP.
Remove starter from vehicle.
