Circuit Schematic

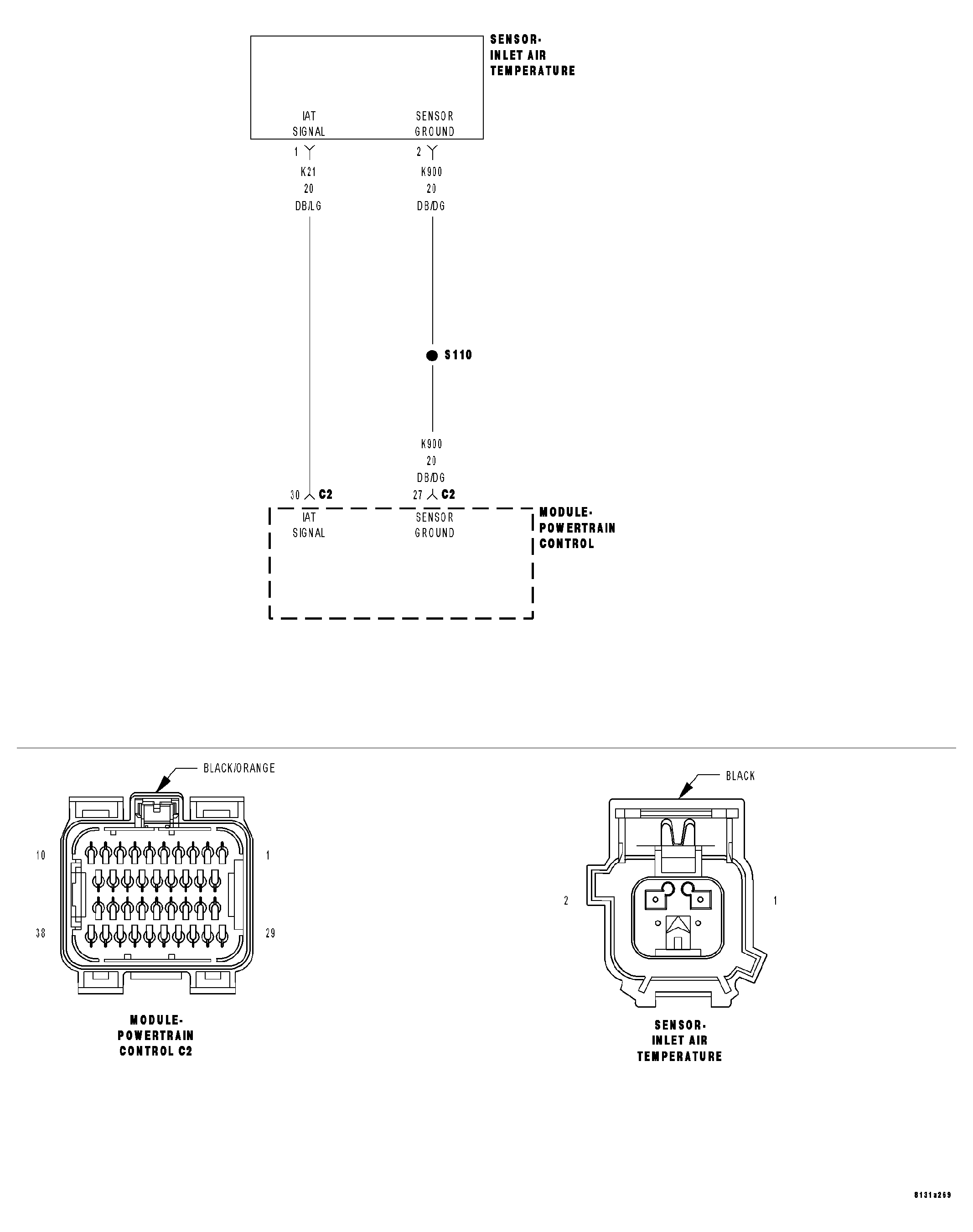

Fig 1: Intake Air Temperature Sensor Circuit Schematic

GC0014772

Courtesy of DAIMLERCHRYSLER CORP.

For the Engine System Schematic circuit diagram.(Refer to ENGINE - SCHEMATICS AND DIAGRAMS)
