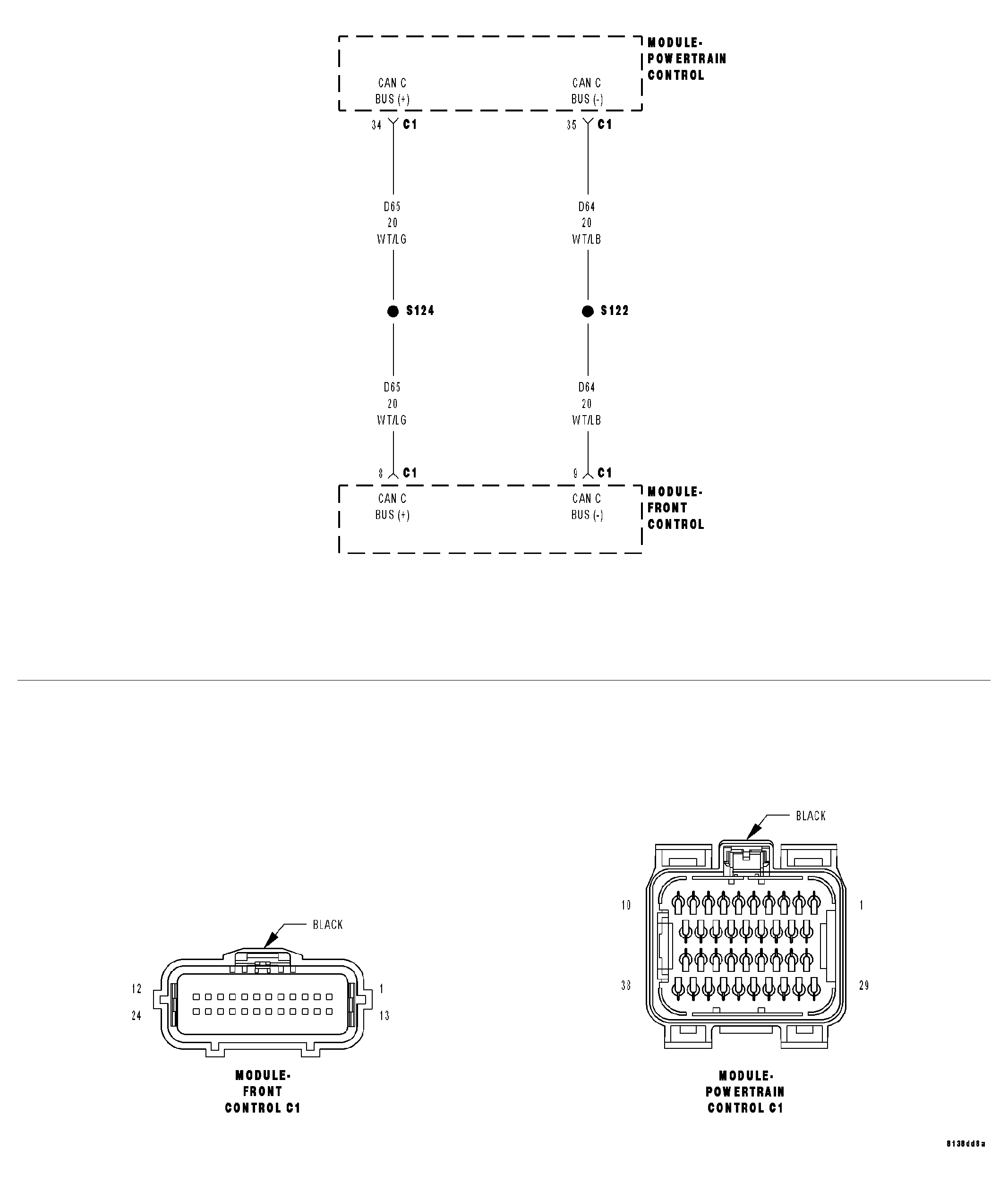

Home >> Chrysler >> 2005 >> 300 Base >> Repair and Diagnosis (Single Page) >> Engine Performance >> System >> DTCS U0121 To U1418, Symptom Tests, Verification Tests & Schematics And Diagrams >> Diagnosis And Testing >> U0141-Lost Communication With Front Control Module >> Circuit Schematic
