Circuit Schematic

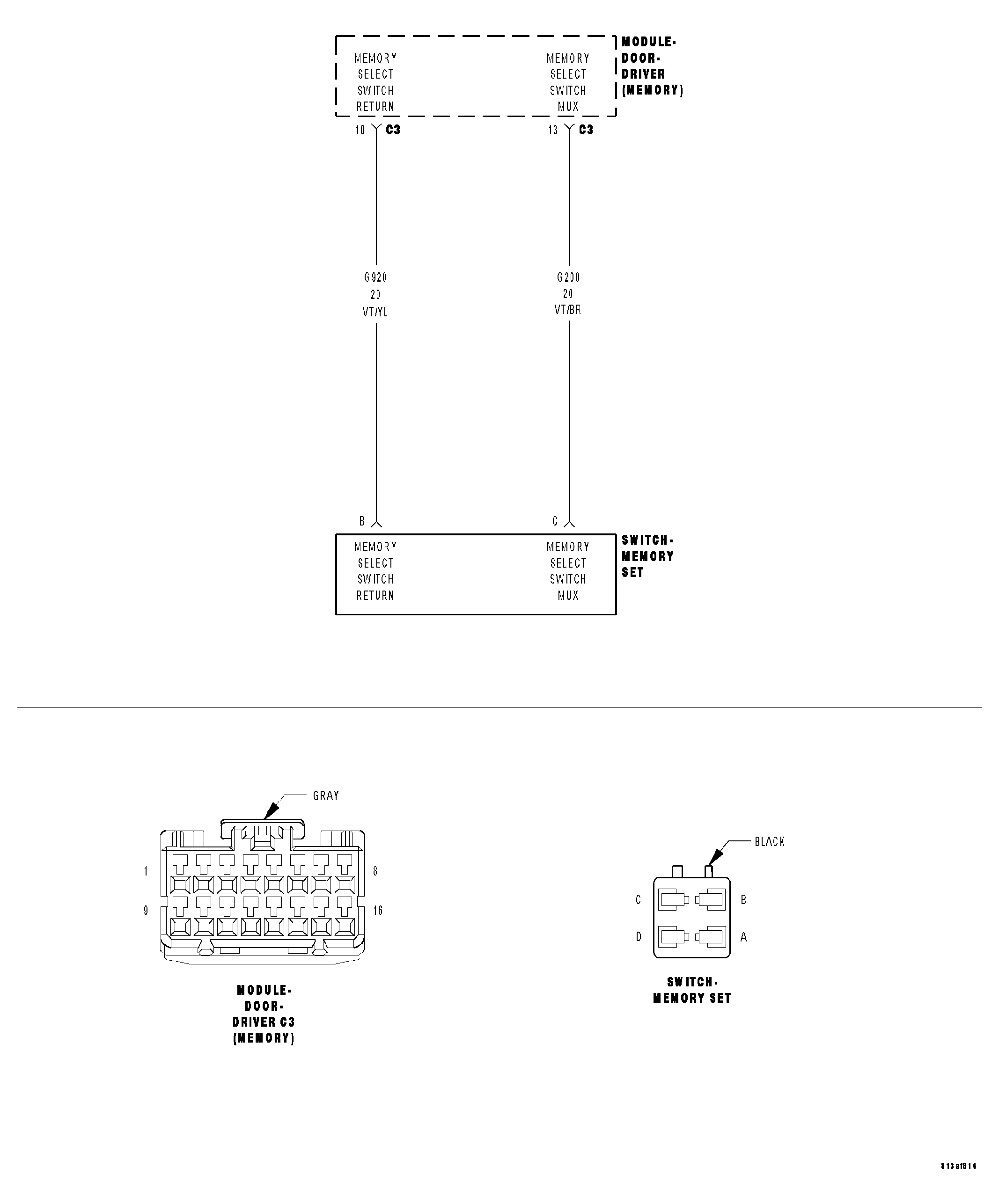

Fig 1: Memory Set Switch Circuit Diagram

Courtesy of DAIMLERCHRYSLER CORP.

For the Power Memory Mirror System circuit diagram (Refer to ELECTRICAL/POWER MIRRORS - SCHEMATICS AND DIAGRAMS)
