Bushing-Rear CROSSMEMBER Spring Link: Installation

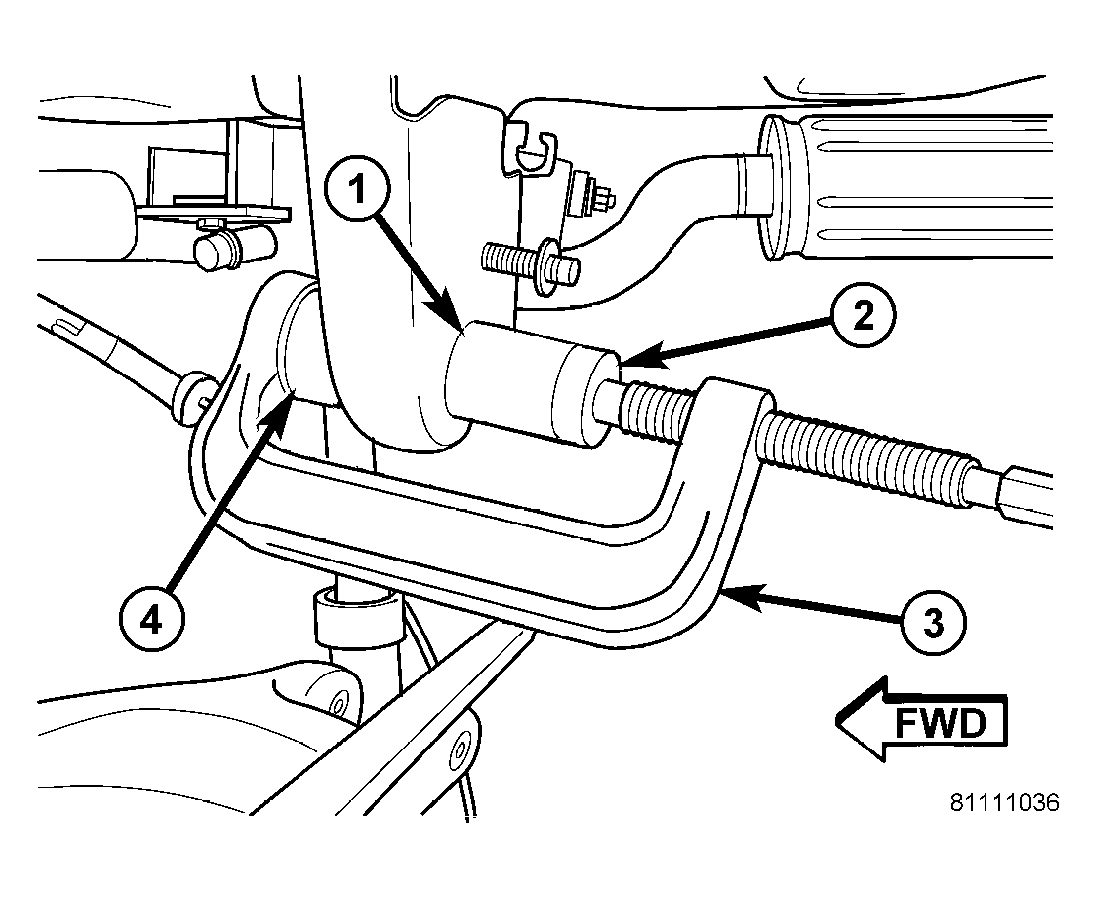

Fig 1: SPRING LINK BUSHING INSTALLATION

Courtesy of DAIMLERCHRYSLER CORP.

1 - BUSHING

2 - REMOVER/INSTALLER 9032-2

3 - PRESS C-4212F

4 - RECEIVER 9032-3

1. Position bushing (1) over rear of crossmember bushing bore.
2. Assemble tools over bushing and crossmember as shown in Fig 1 (See following list). Ensure Receiver, Special Tool 9032-3, is positioned to avoid welds on rear of crossmember bushing bore.
   1. (2) Remover/Installer 9032-2
   2. (3) Press C-4212F
   3. (4) Receiver 9032-3
3. Tighten Press screw-drive, pressing bushing into crossmember. Install bushing until screw-drive stops, when bushing contacts Receiver on opposite side of crossmember.
4. Remove tools.

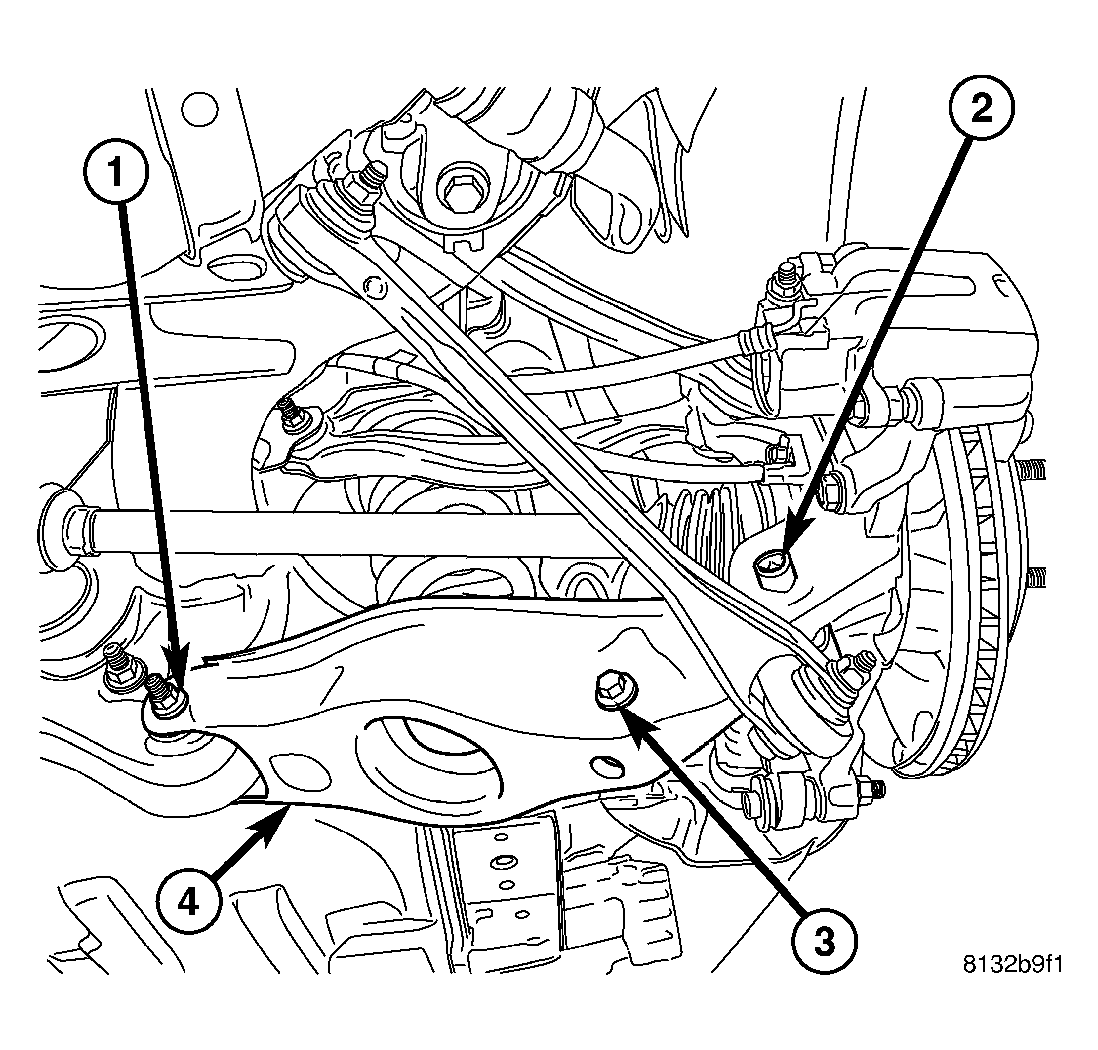

   Fig 2: SPRING LINK MOUNTING

   Courtesy of DAIMLERCHRYSLER CORP.
5. Swing spring link up to bushing in crossmember and install bolt and nut (1) fastening spring link (4) to crossmember. Do not tighten bolt at this time.

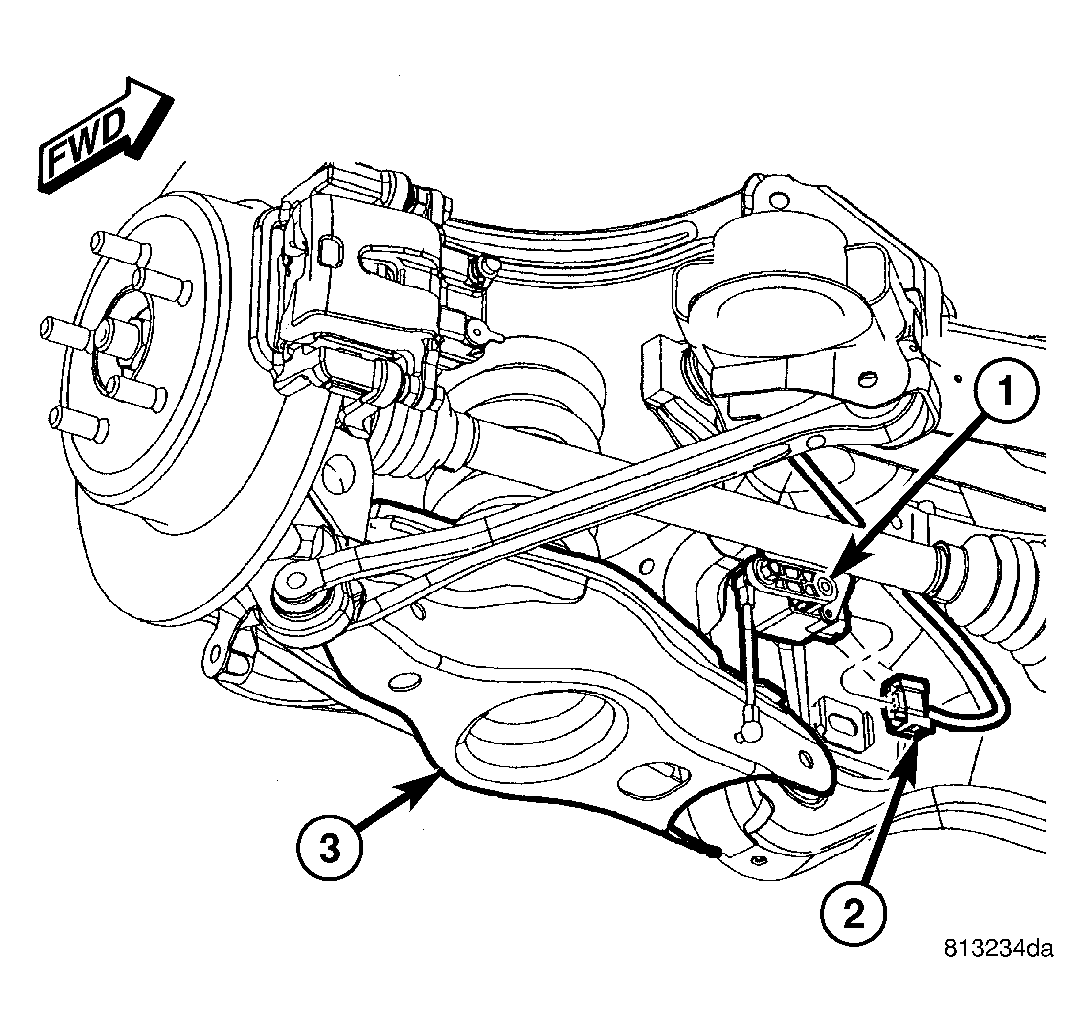

   Fig 3: HEADLAMP LEVELING SENSOR

   Courtesy of DAIMLERCHRYSLER CORP.
6. Export Only - If servicing right side bushing, connect headlamp leveling sensor (1) link at spring link (3).
7. Install rear spring as well as all components necessary to access it. (Refer to SUSPENSION/REAR/SPRING - INSTALLATION)
8. Lower vehicle.
9. Position vehicle on alignment rack/drive-on lift. Raise vehicle as necessary to access mounting bolt.
   Fig 4: SPRING LINK MOUNTING

   Courtesy of DAIMLERCHRYSLER CORP.
10. Tighten spring link bolt (1) at crossmember to 108 N.m (80 ft. lbs.) torque.
11. Perform wheel alignment. (Refer to SUSPENSION/WHEEL ALIGNMENT - STANDARD PROCEDURE)
