Wheel Alignment Specifications

For wheel alignment specifications, see Fig 1 .

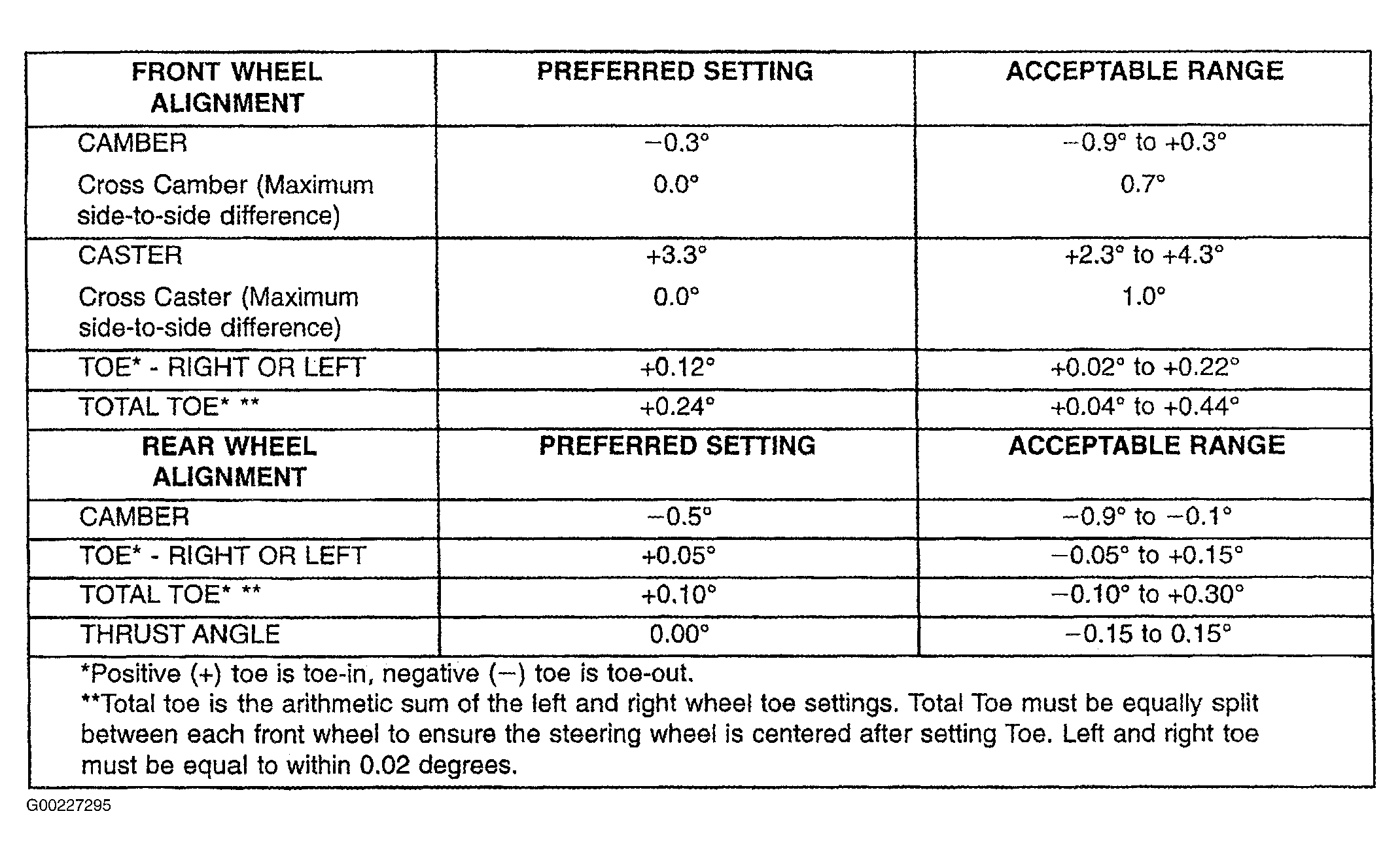

Fig 1: Wheel Alignment Specifications

G00227295

Courtesy of CHRYSLER CORP.
