Removal - 4 Cylinder

The camshaft position sensor is mounted to the rear of the cylinder head.

1. Remove the negative battery cable.
2. Disconnect the PCV hose and reposition.
3. Disconnect electrical connectors from the camshaft position sensor (Fig 1).
   Fig 1: Identifying CAM Sensor/EGR Valve/PCV Valve

   Courtesy of DAIMLERCHRYSLER CORP.
4. Remove camshaft position sensor mounting screws. Remove sensor.
5. Loosen screw attaching target magnet to rear of camshaft and remove magnet (Fig 2).

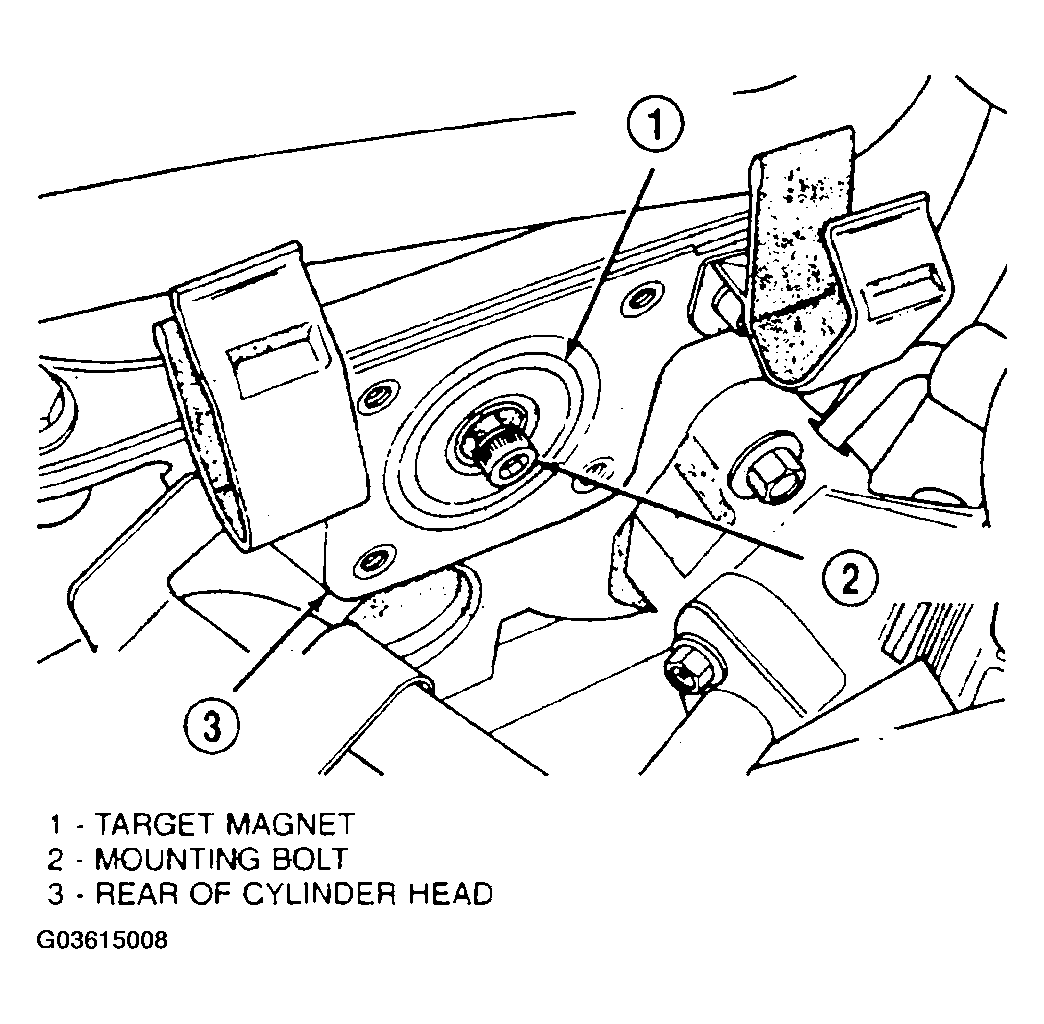

   Fig 2: Removal/Installation Of Target Magnet

   Courtesy of DAIMLERCHRYSLER CORP.
