Battery - Except Coupe: Battery: Removal

The battery is accessible without removing the left front wheel and tire assembly.

1. Verify that the ignition switch and all accessories are OFF.
2. Turn the steering wheel to the full left position.
3. Disconnect and isolate the negative battery cable remote terminal from the remote battery post.
   WARNING: NEVER GET UNDER A LIFTED VEHICLE IF NOT SUPPORTED PROPERLY ON SAFETY STANDS.
4. Remove battery splash shield. Refer to BATTERY SPLASH SHIELD for the procedure.
5. Disconnect the heater blanket cord, if equipped.
6. Remove the short bolt from the battery hold down and remove the hold down (Fig 1 ).

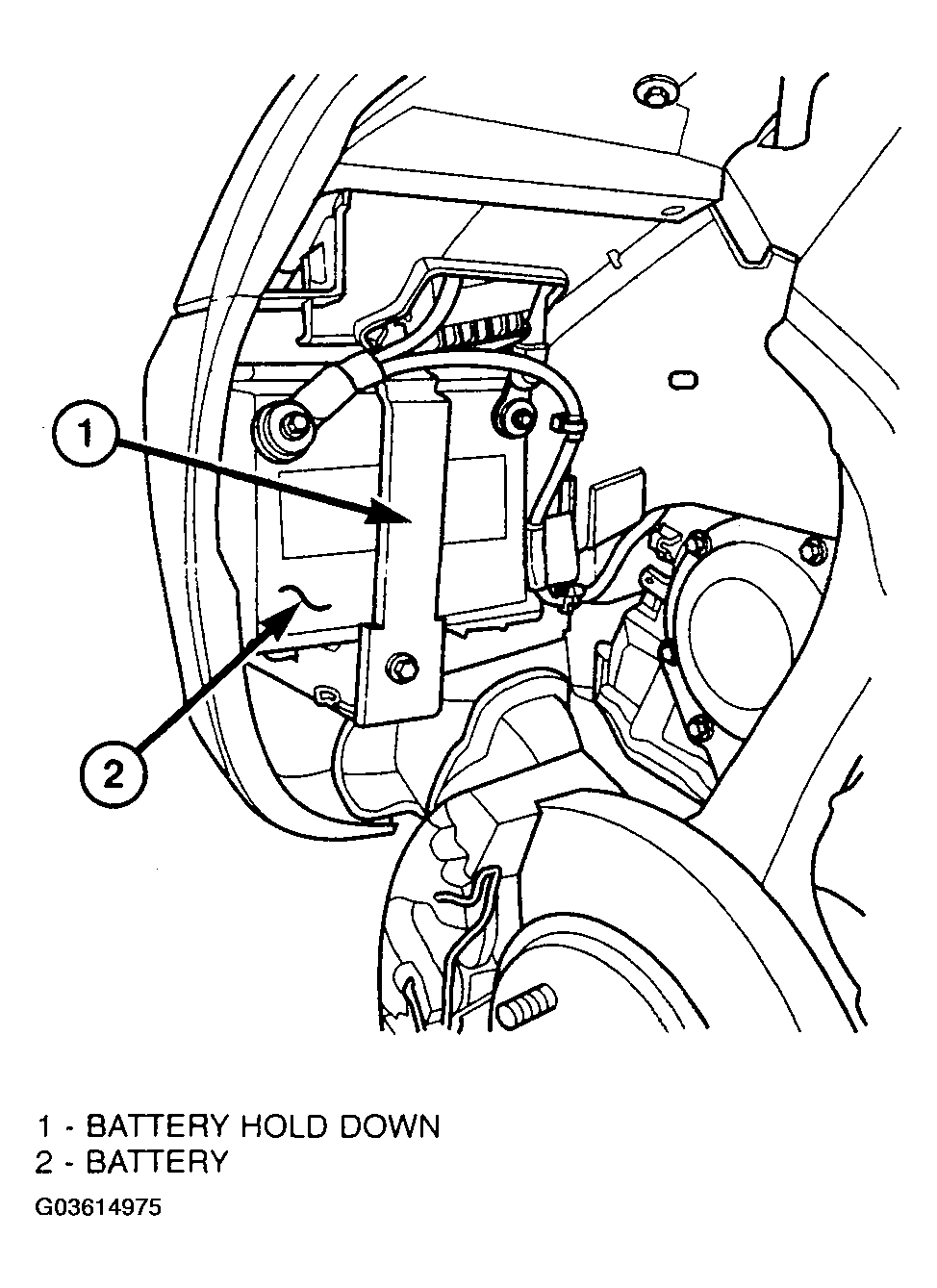

   Fig 1: Identifying Battery Location

   Courtesy of DAIMLERCHRYSLER CORP.
7. Disconnect the negative and positive battery cables from the battery.
8. Slide the battery toward rear of vehicle and lift out of the battery tray.
9. Remove battery from vehicle.
