Battery Tray: Description

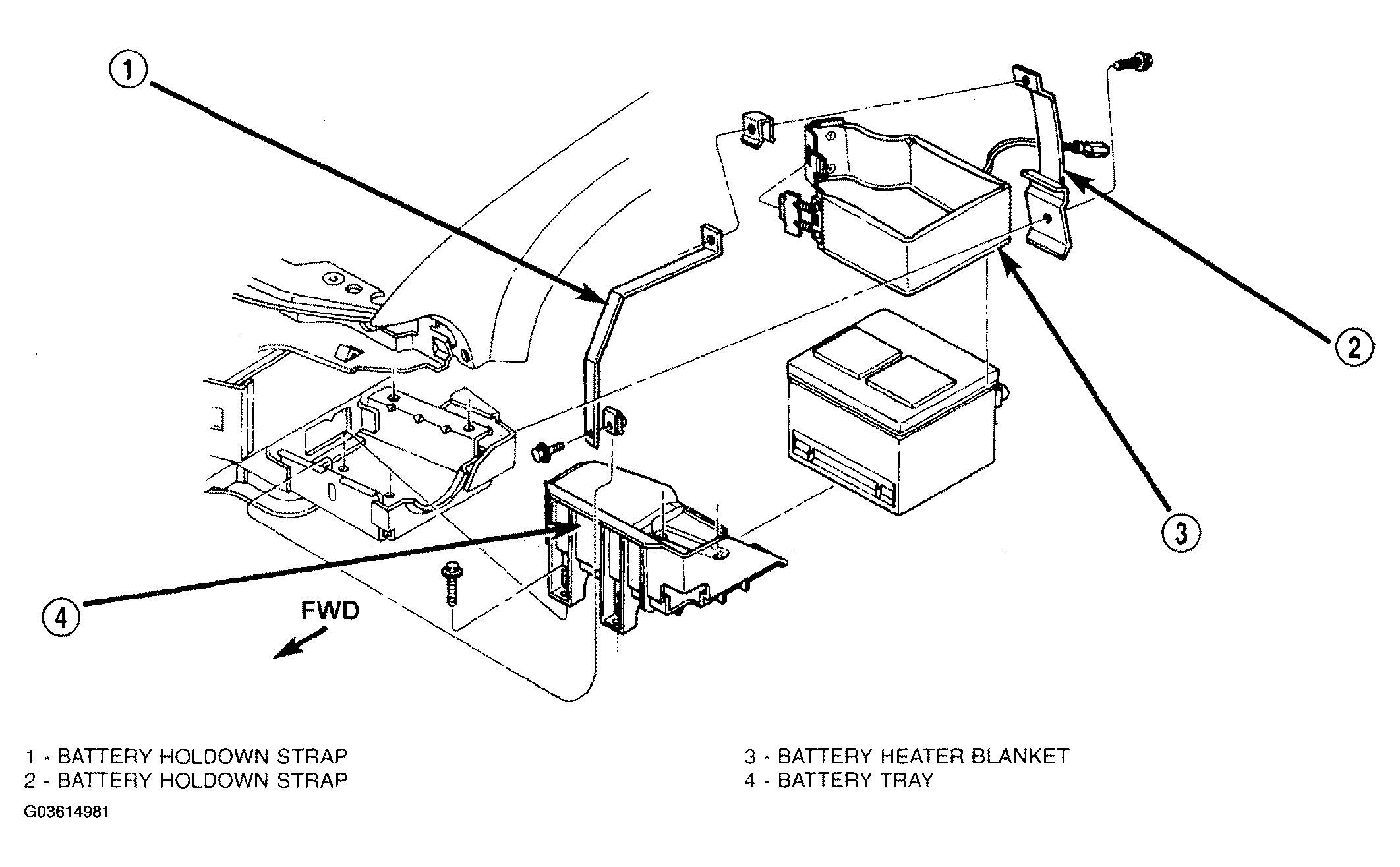

The battery is placed in a steel tray located in the left front corner of the vehicle (Fig 1 ). A hole in the bottom of the battery tray is fitted with a battery temperature sensor. Refer to CHARGING - EXCEPT COUPE for more information on the battery temperature sensor. Refer to BATTERY HOLDDOWN down for more information on hold down hardware.
