Junction Block Body Control Module Connector End View - Except Coupe

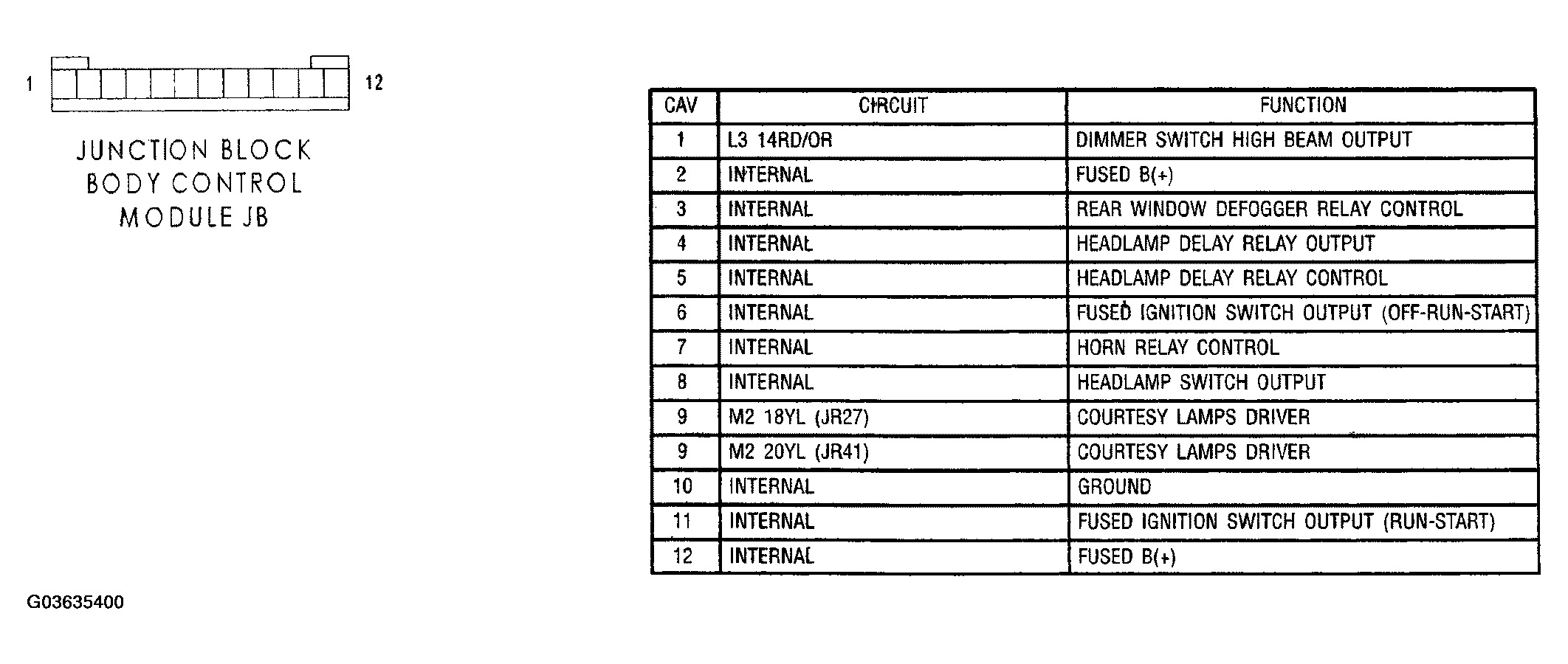

Fig 1: Junction Block Body Control Module Connector End View - Except Coupe

G03635400

Courtesy of DAIMLERCHRYSLER CORP.
