Valve Body: Installation

NOTE: If valve body assembly is being replaced or reconditioned, it is necessary to perform the TCM Quick Learn Procedure. (Refer to TRANSMISSION CONTROL MODULE )

Install valve body assembly to transaxle (Fig 1). Install and torque valve body-to-transaxle case bolts (Fig 2) to 12 N.m (105 in. lbs.).

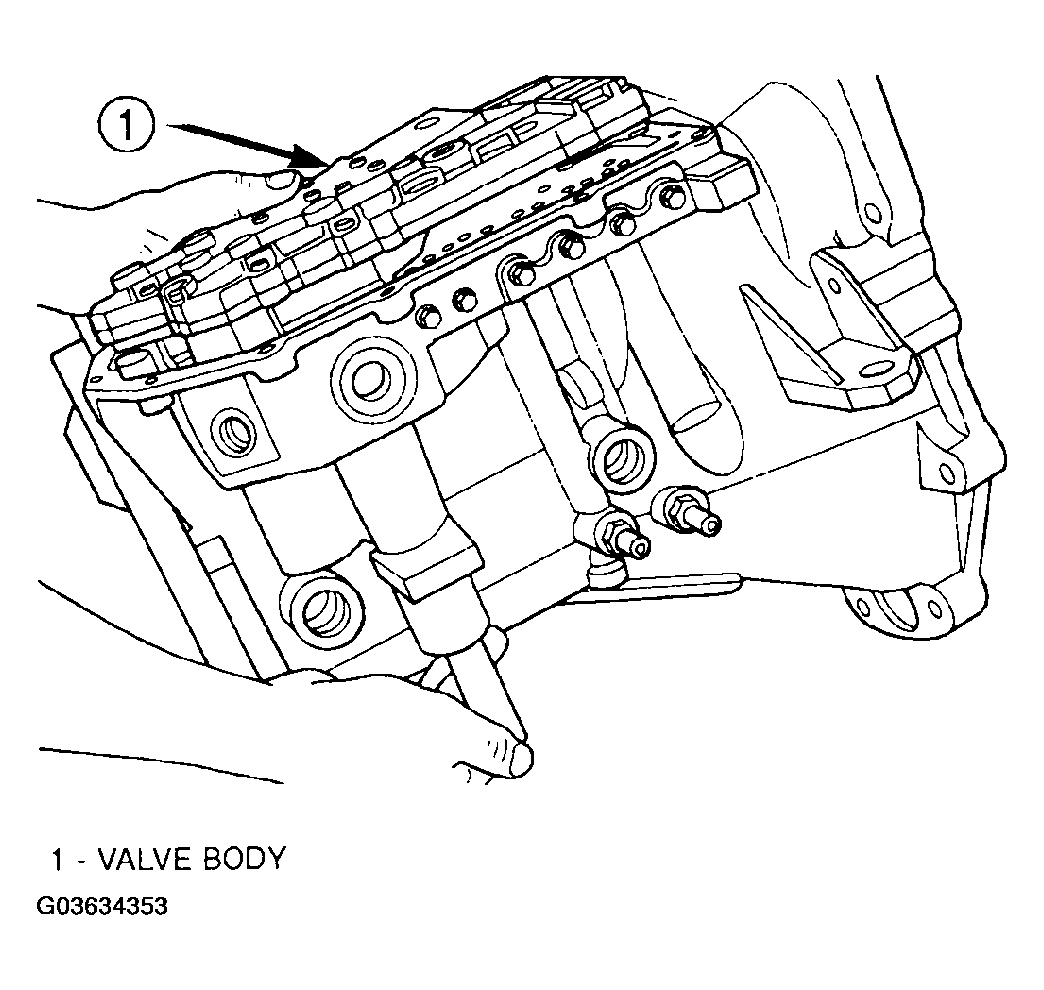

Fig 1: Identifying Valve Body
Courtesy of DAIMLERCHRYSLER CORP.

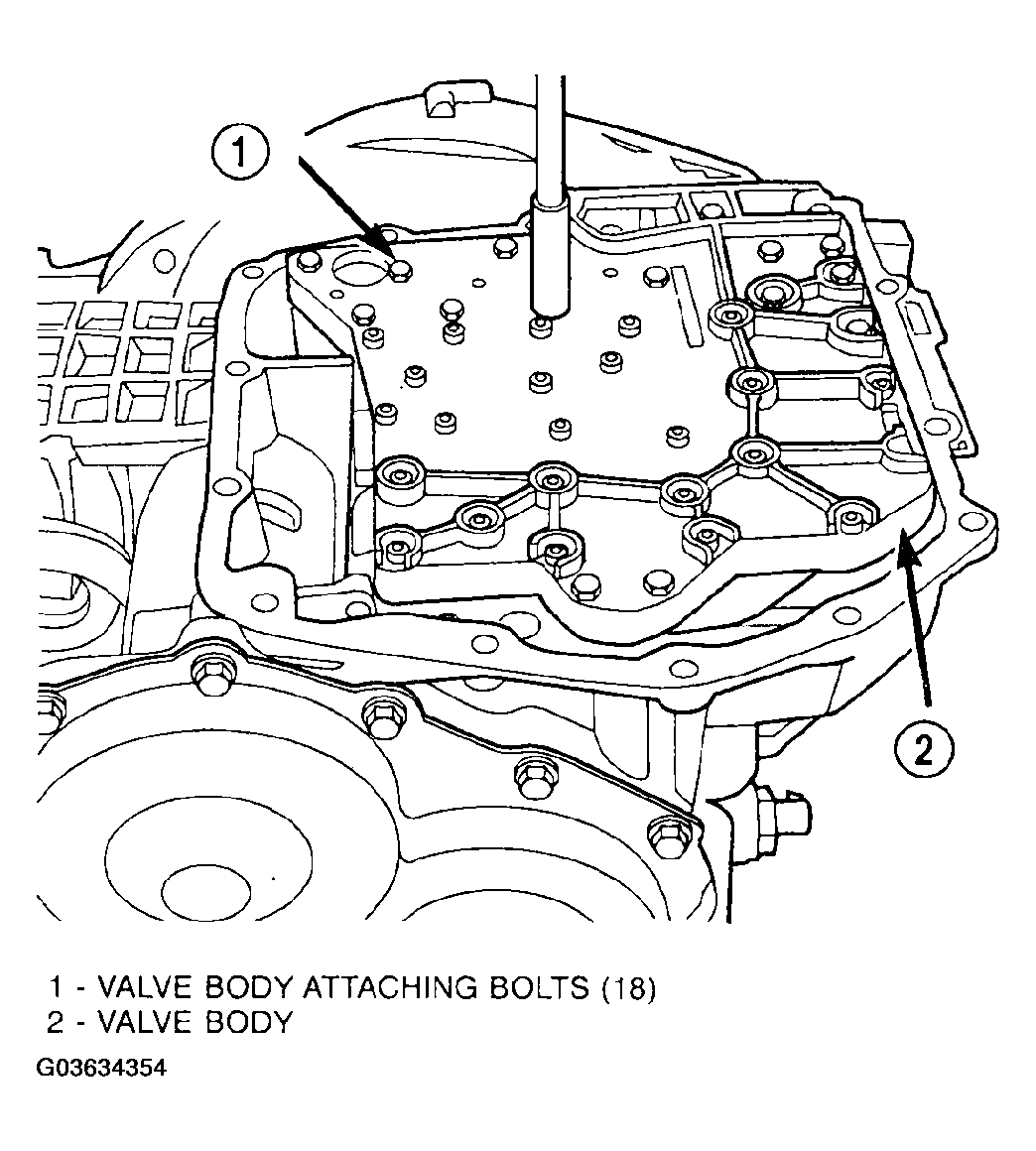

Fig 2: Identifying Valve Body Attaching Bolts
Courtesy of DAIMLERCHRYSLER CORP.
Install transaxle oil filter (Fig 3). Inspect the o-ring and replace if necessary.

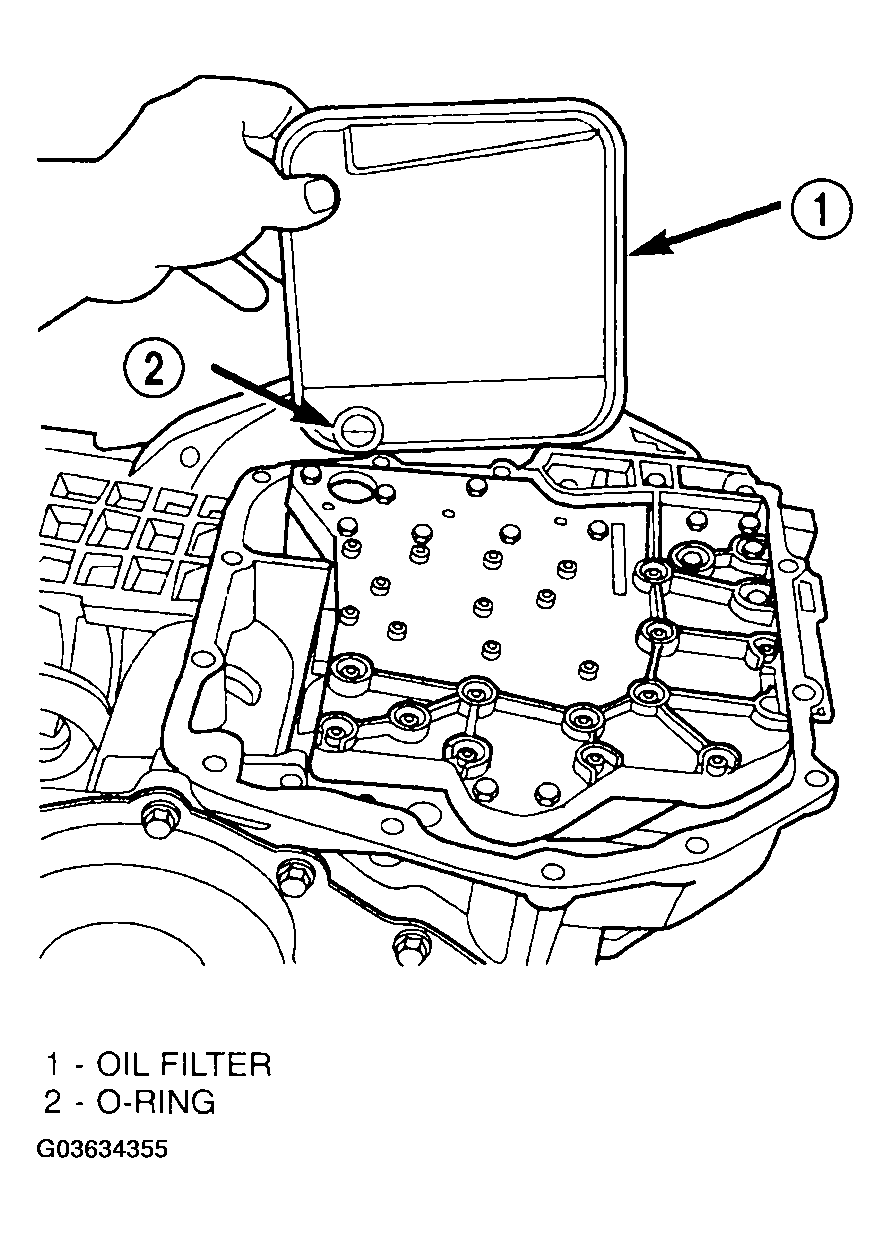

Fig 3: Installing Oil Filter
Courtesy of DAIMLERCHRYSLER CORP.
Ensure the transaxle oil pan and transaxle case sealing surfaces are clean and dry. Install an 1/8" bead of Mopar® ATF RTV (MS-GF41) to the oil pan and install (Fig 4). Torque oil pan-to-transaxle case bolts (Fig 5) to 19 N.m (165 in. lbs.).

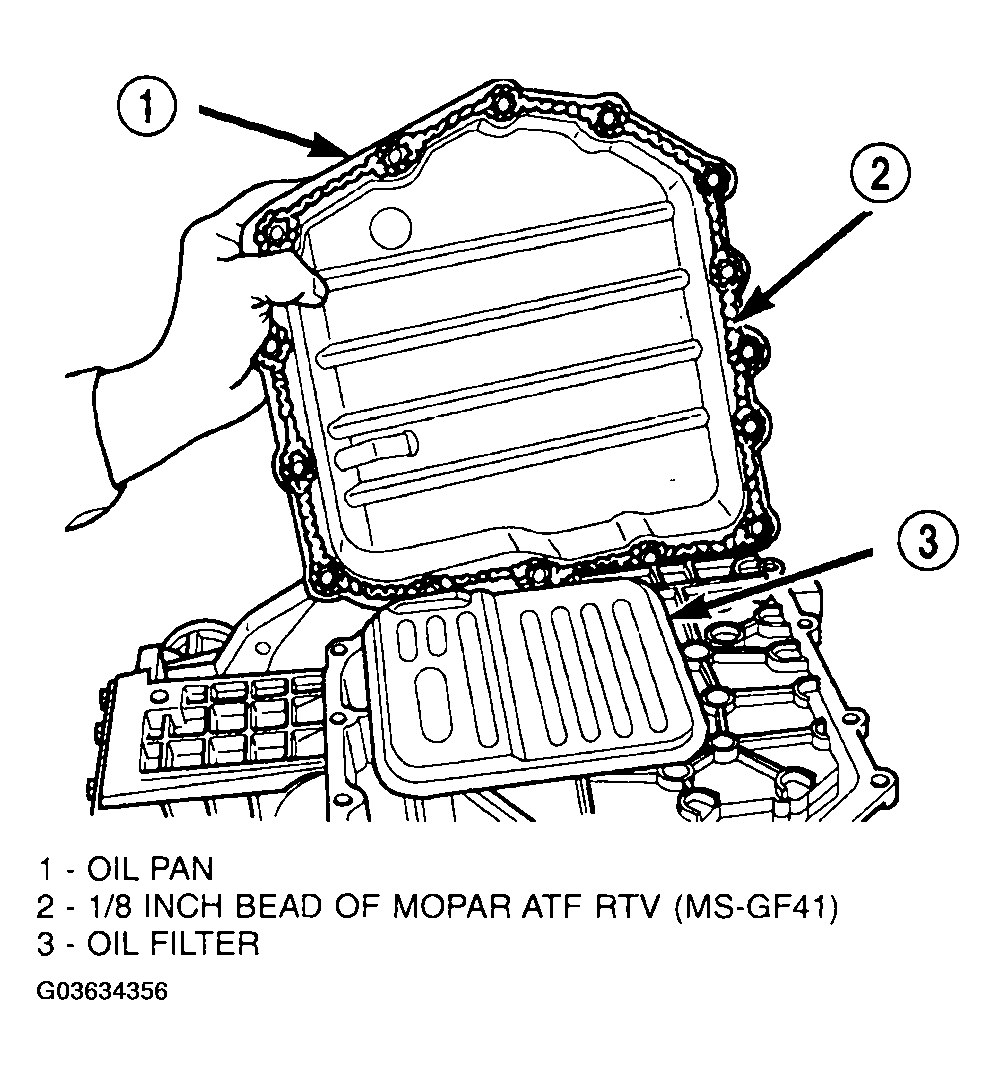

Fig 4: Installing Oil Pan
Courtesy of DAIMLERCHRYSLER CORP.

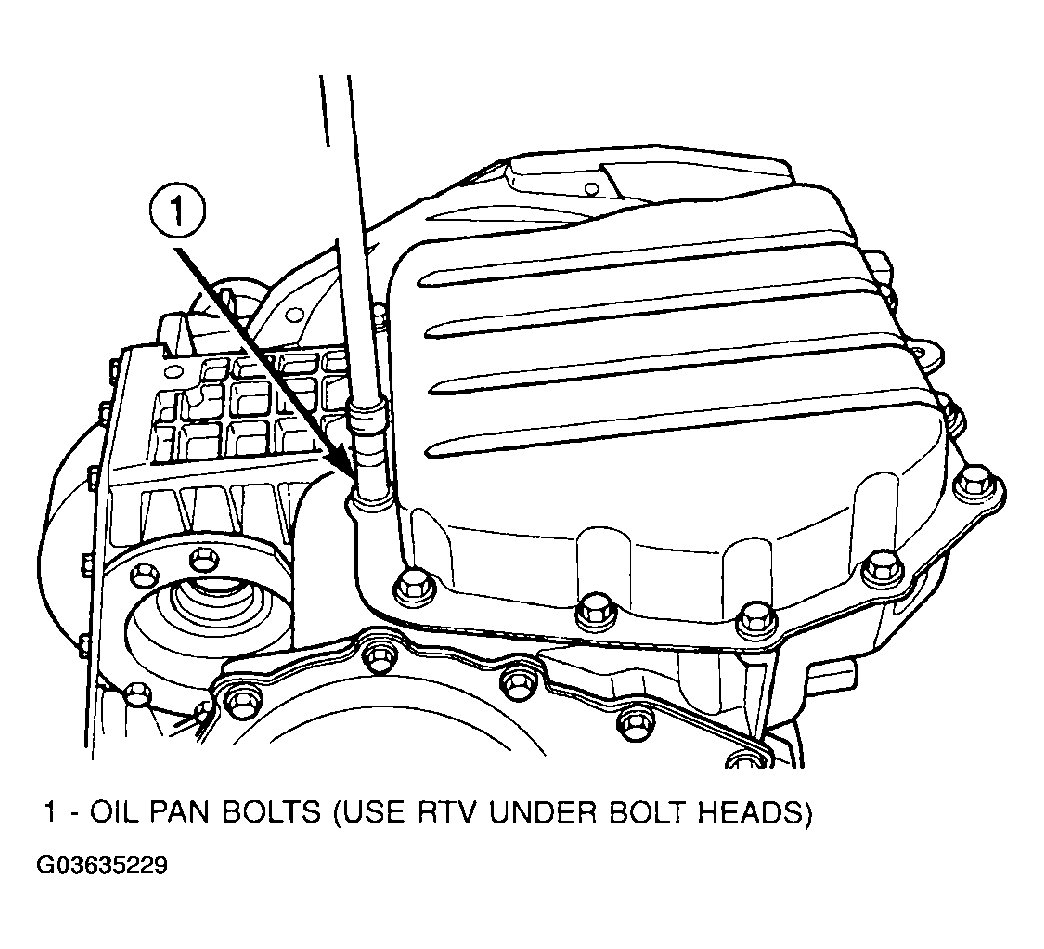

Fig 5: Installing Oil Pan Bolts
Courtesy of DAIMLERCHRYSLER CORP.
Lower vehicle.
Connect transmission range sensor connector.
Install manual valve lever to manual shaft.
Install gearshift cable to manual valve lever.
Connect battery negative cable.
Fill transaxle with Mopar® ATF +4 Transmission fluid. (Refer to STANDARD PROCEDURE )
