Valve Body: Disassembly: Notes

NOTE: If valve body assembly is being reconditioned, the PCM/TCM Quick Learn Procedure must be performed. (Refer to TRANSMISSION CONTROL MODULE )

Remove manual shaft seal (Fig 1).

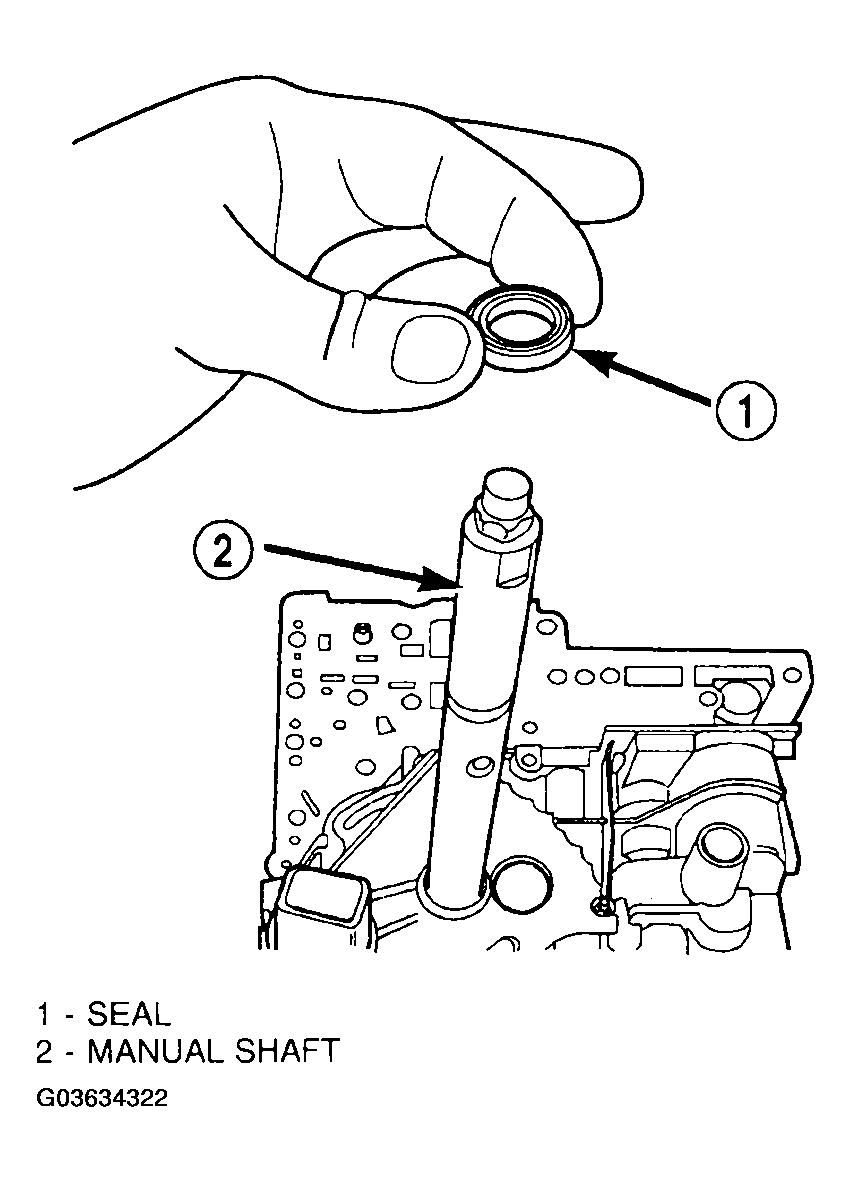

Fig 1: Removing Manual Shaft Seal
Courtesy of DAIMLERCHRYSLER CORP.
Remove Transmission Range Sensor retaining screw (Fig 2).

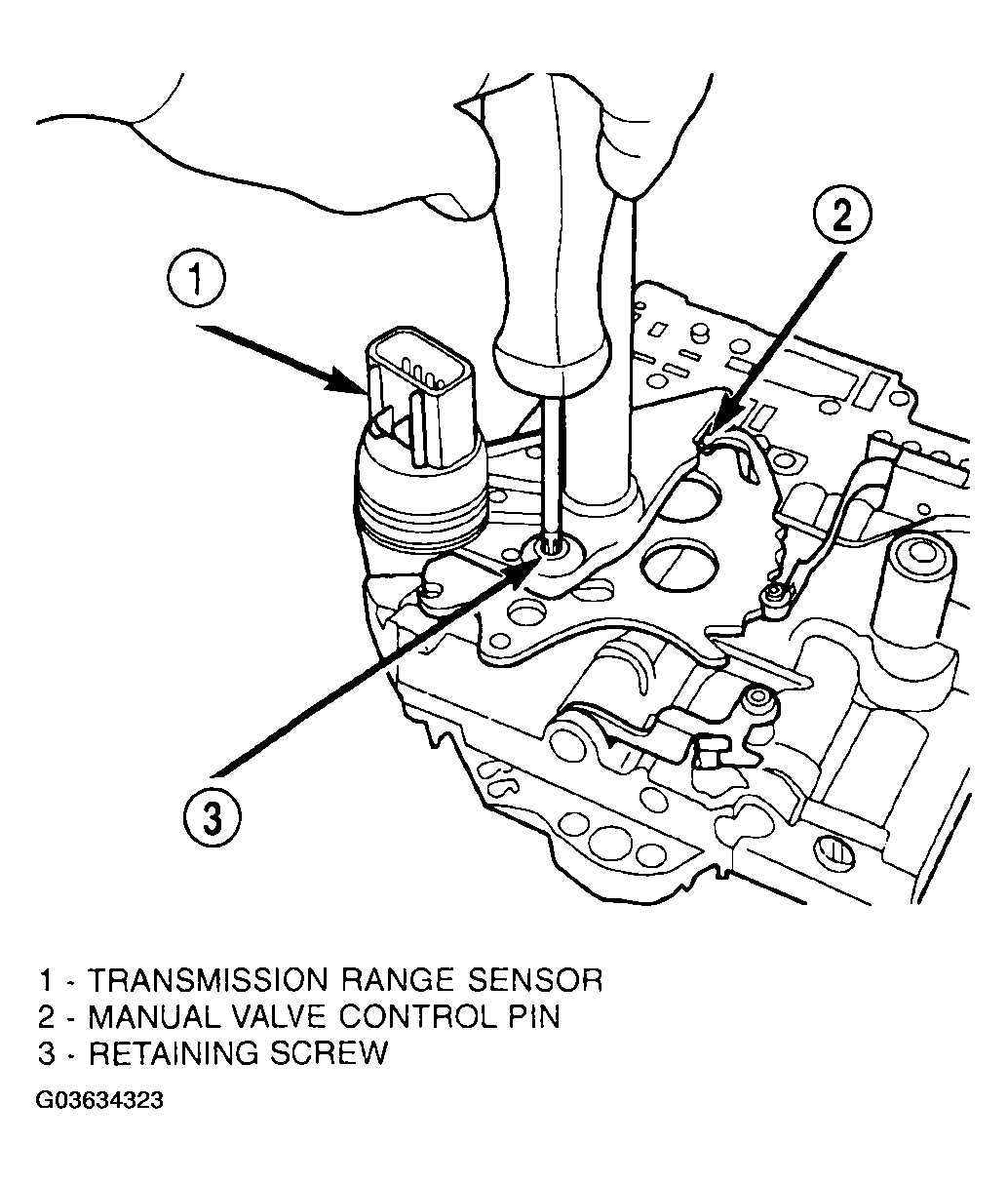

Fig 2: Removing Transmission Range Sensor
Courtesy of DAIMLERCHRYSLER CORP.
Remove Manual Shaft/Rooster Comb and Transmission Range Sensor (Fig 3).

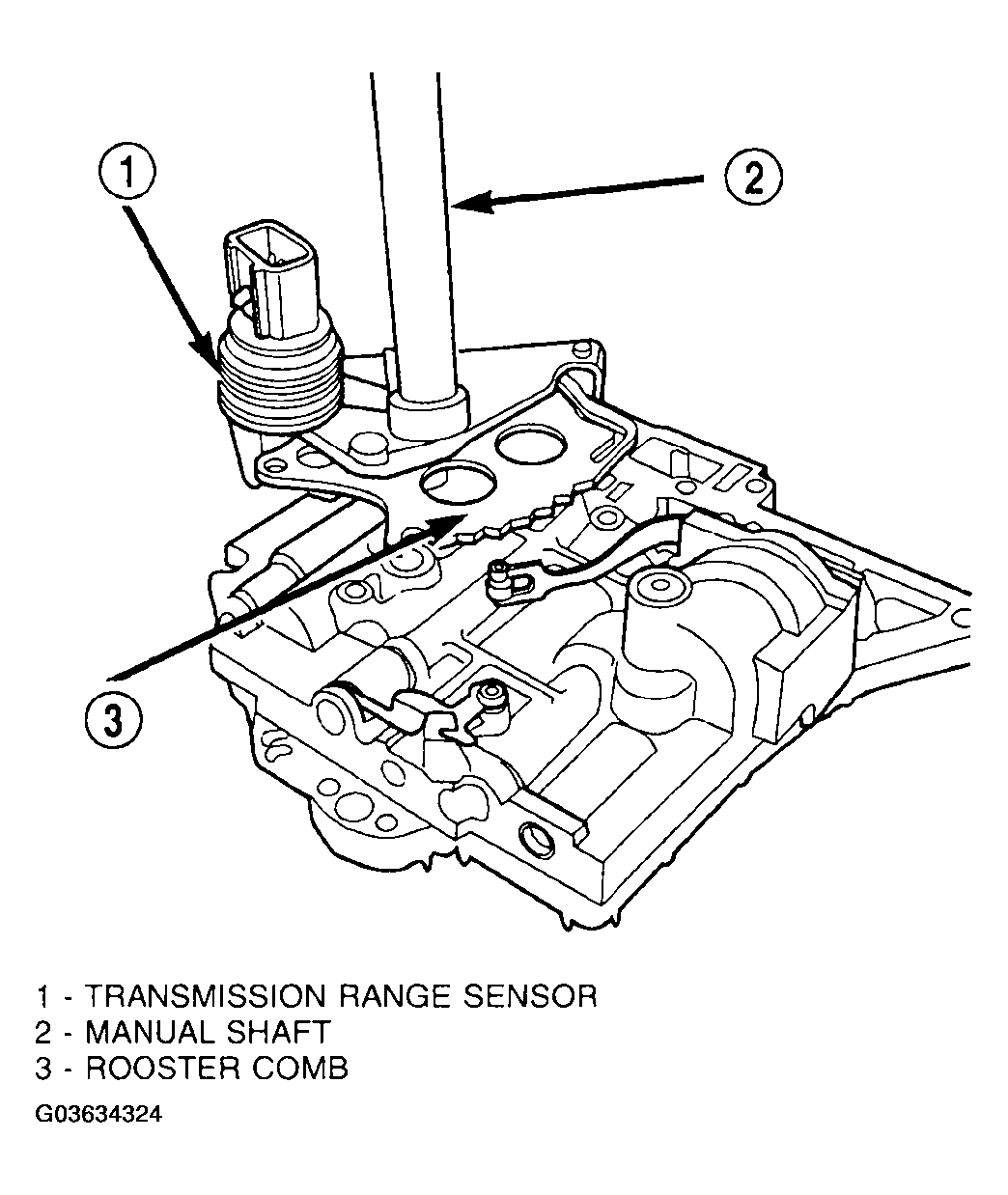

Fig 3: Removing Manual Shaft/Rooster Comb And Transmission Range Sensor
Courtesy of DAIMLERCHRYSLER CORP.
Remove 2/4 Accumulator Retaining Plate (Fig 4).

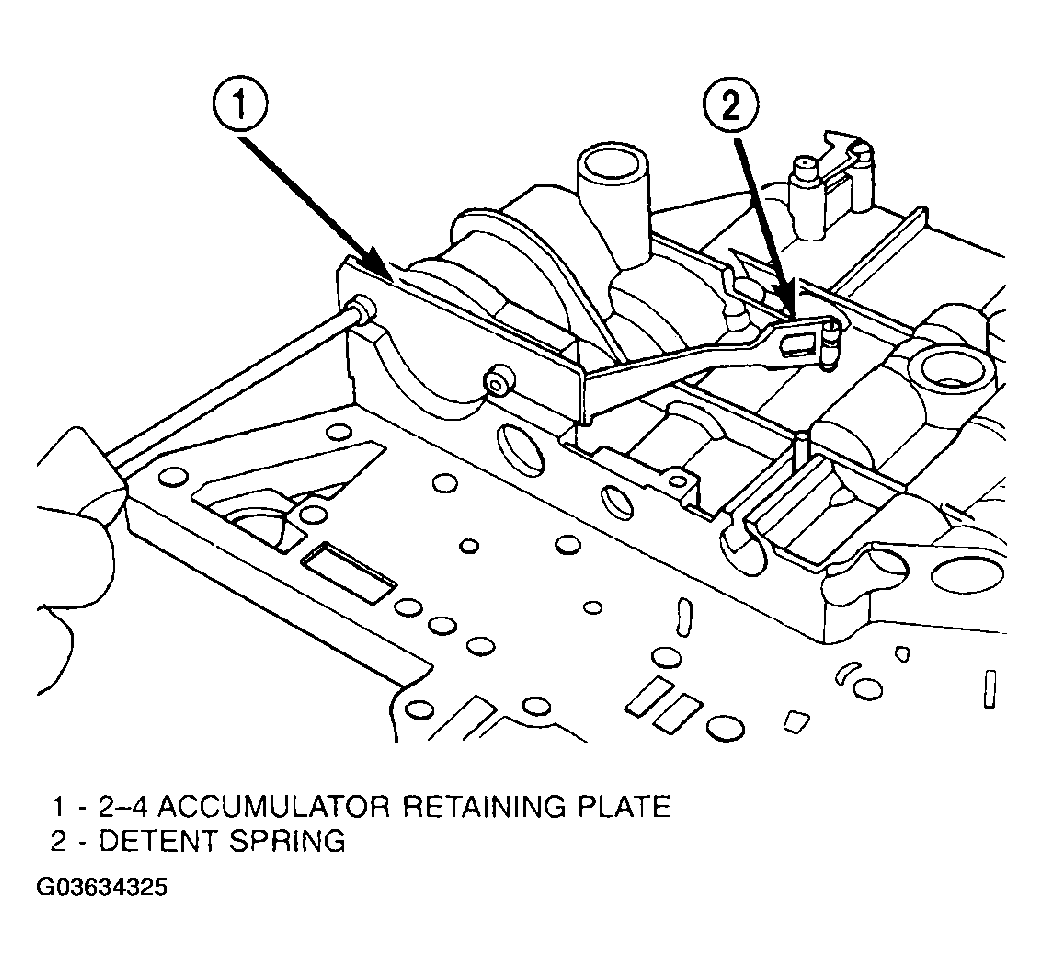

Fig 4: Removing 2/4 Accumulator Retaining Plate
Courtesy of DAIMLERCHRYSLER CORP.
Remove 2/4 Accumulator components as shown in (Fig 5).

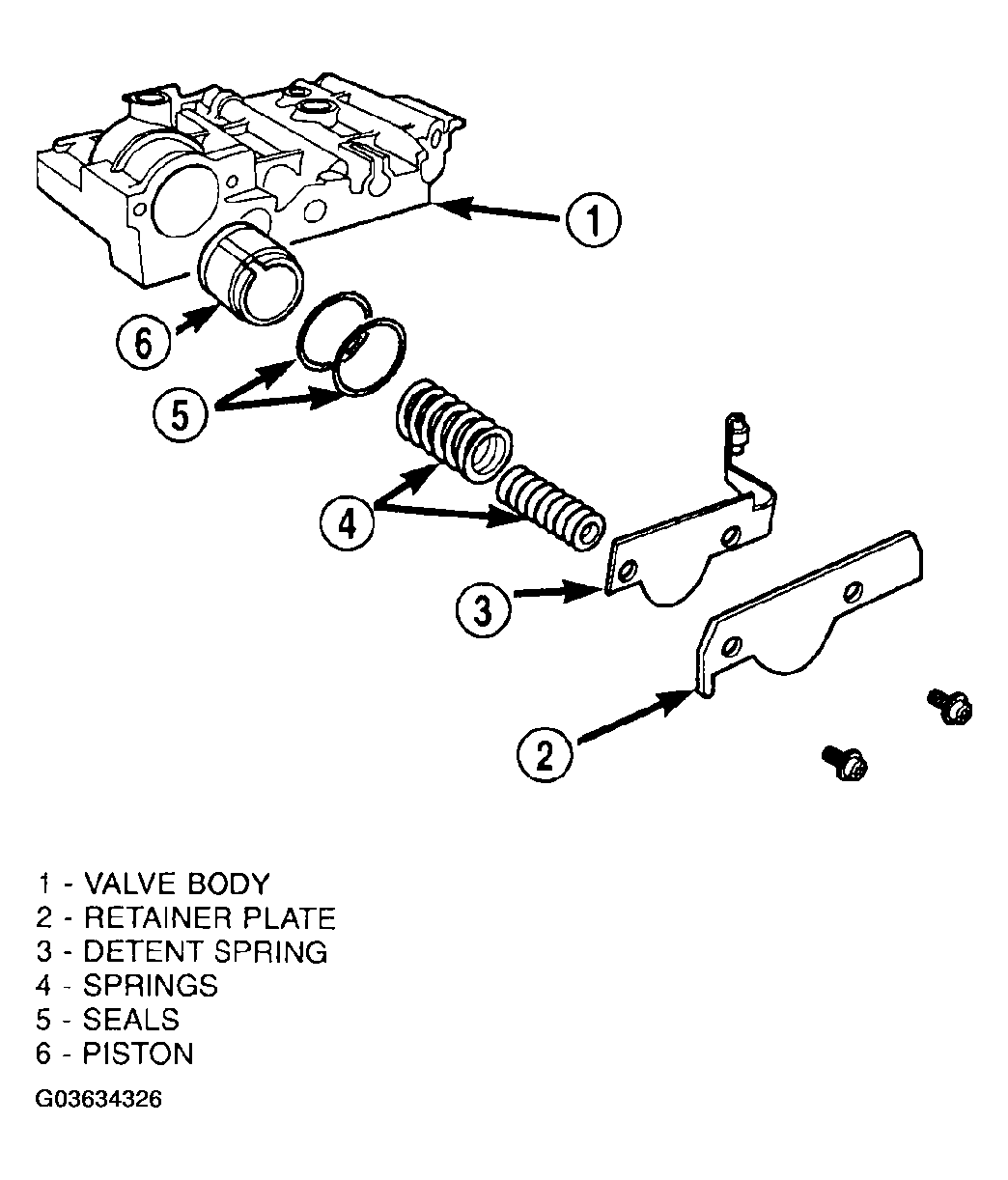

Fig 5: Removing 2/4 Accumulator Assembly
Courtesy of DAIMLERCHRYSLER CORP.
Remove Valve Body to Transfer Plate screws (Fig 6).

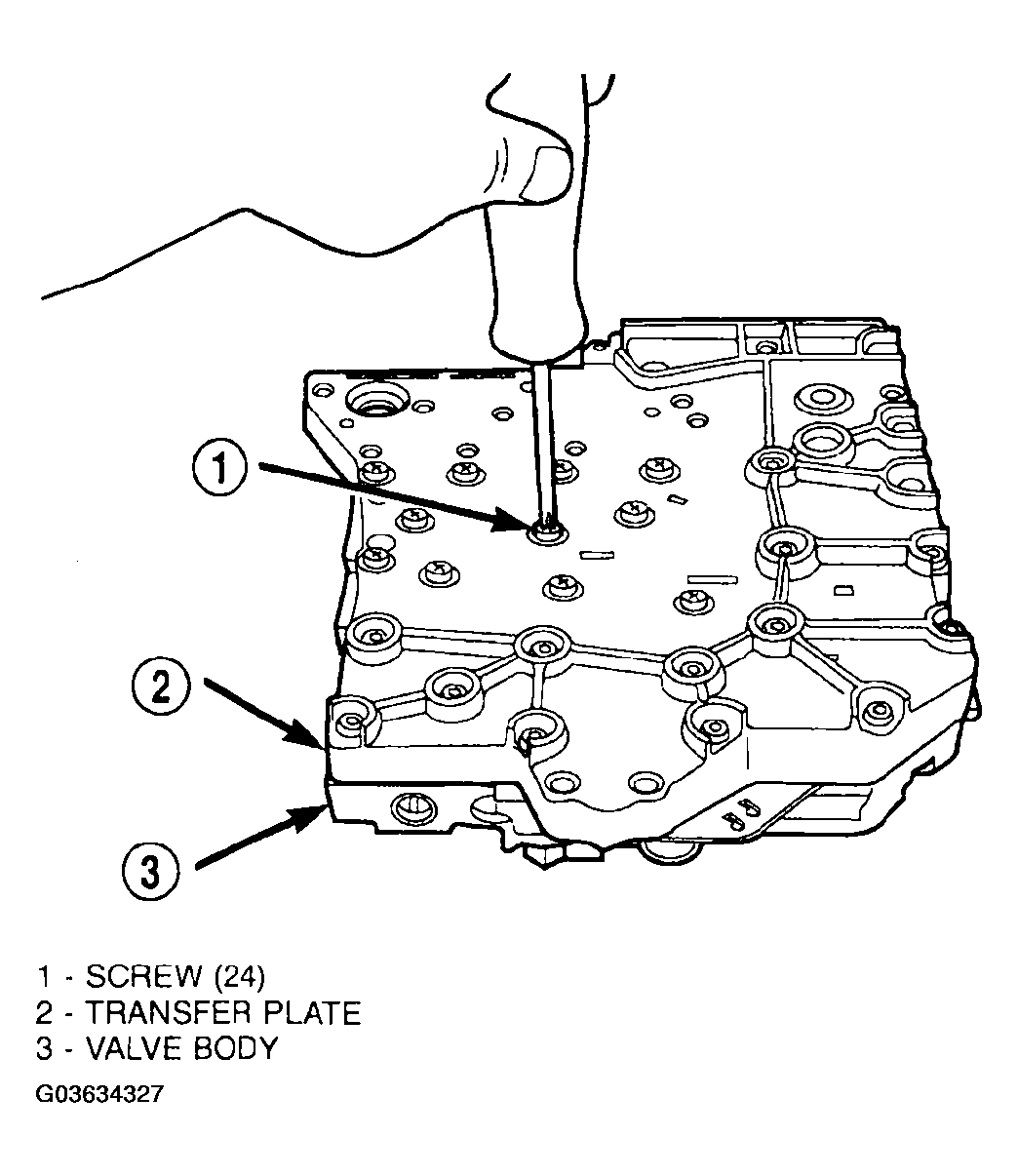

Fig 6: Removing Valve Body to Transfer Plate Screws
Courtesy of DAIMLERCHRYSLER CORP.
Invert assembly and remove Transfer Plate (Fig 7). Beware of loose check balls.

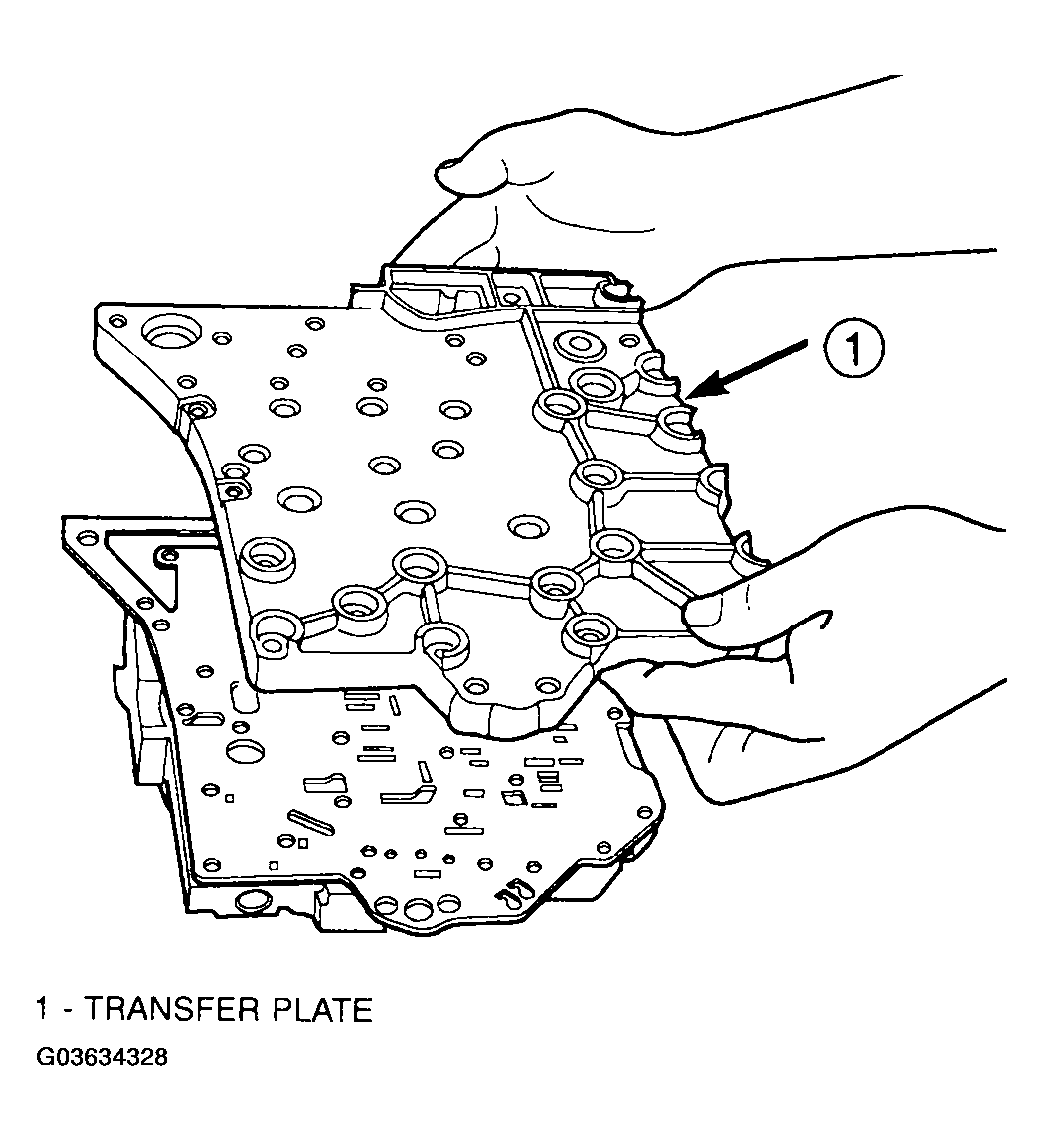

Fig 7: Removing Transfer Plate
Courtesy of DAIMLERCHRYSLER CORP.
Remove oil screen (Fig 8).

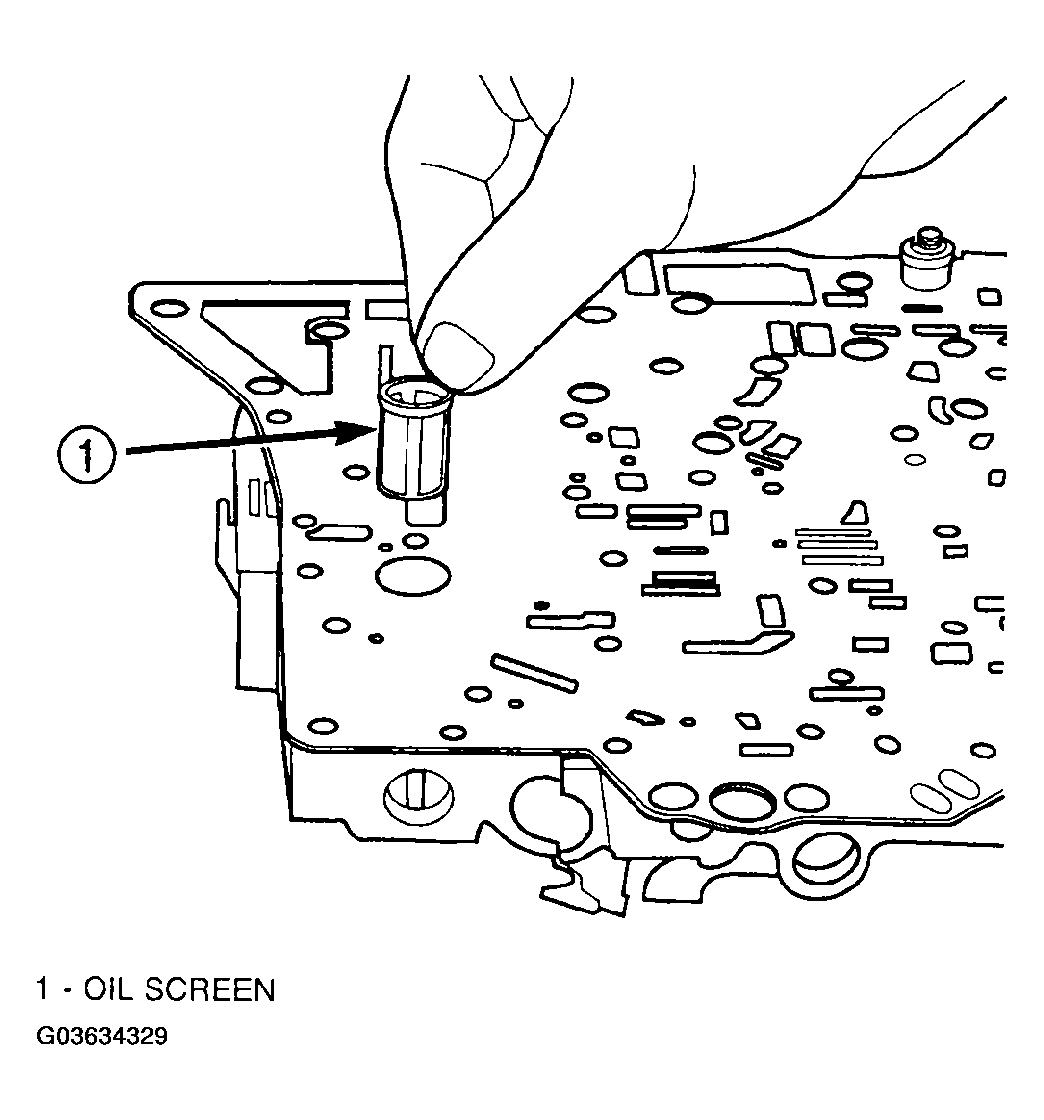

Fig 8: Removing Oil Screen
Courtesy of DAIMLERCHRYSLER CORP.
Remove the overdrive clutch (#5) check valve (Fig 9)

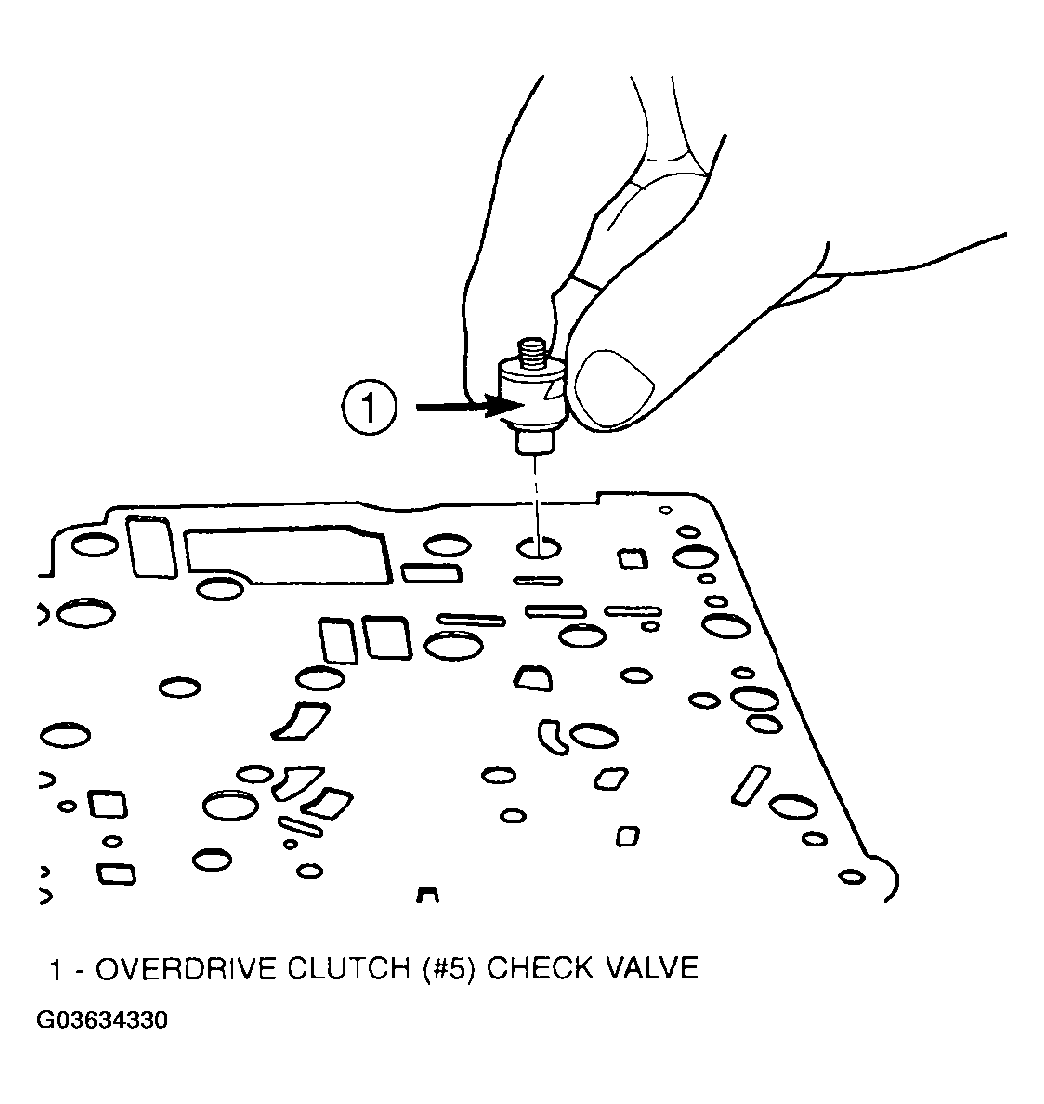

Fig 9: Removing Overdrive Clutch (#5) Check Valve
Courtesy of DAIMLERCHRYSLER CORP.
Remove separator plate (Fig 10).

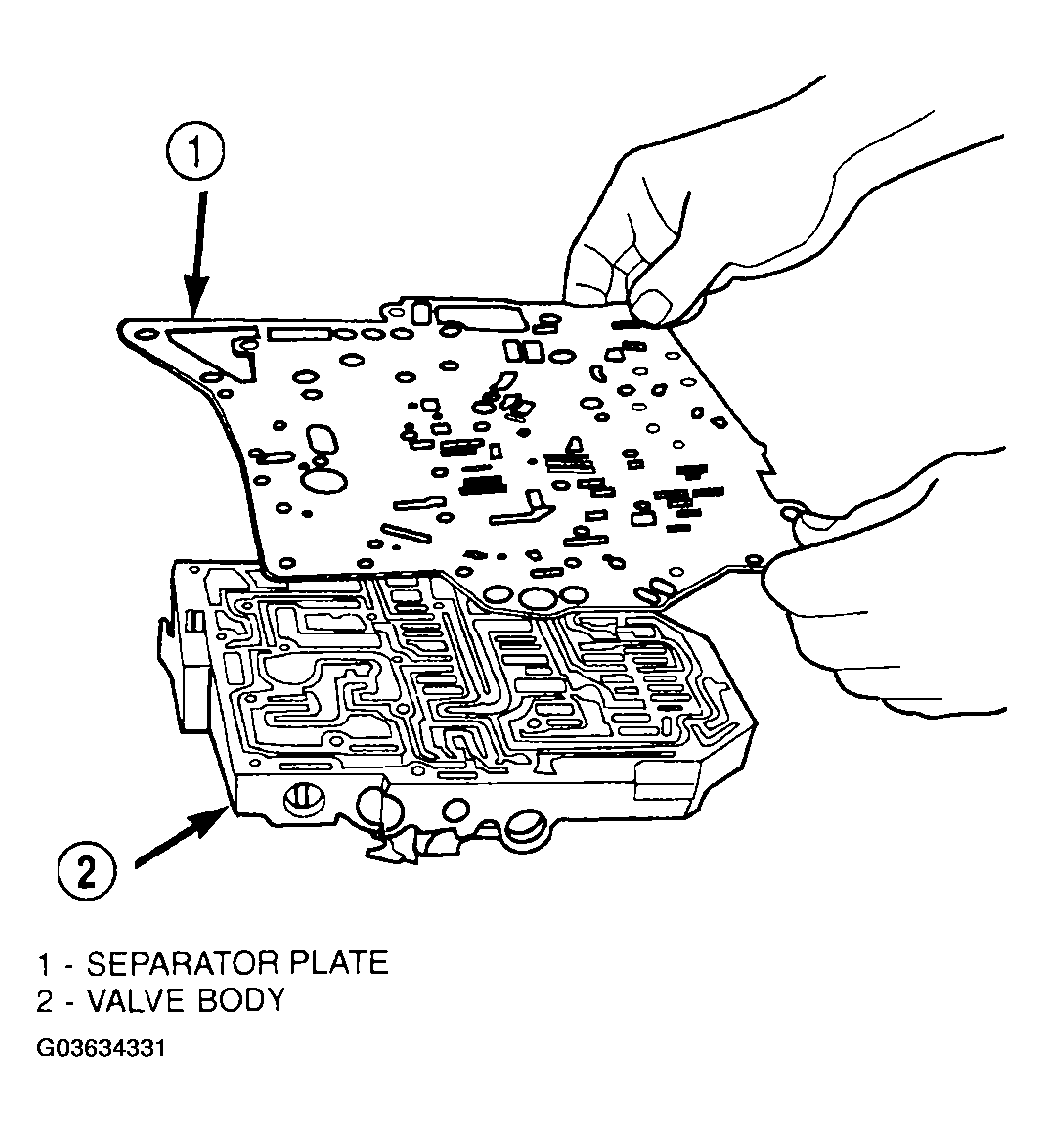

Fig 10: Removing Separator Plate
Courtesy of DAIMLERCHRYSLER CORP.
Remove thermal valve (Fig 11).

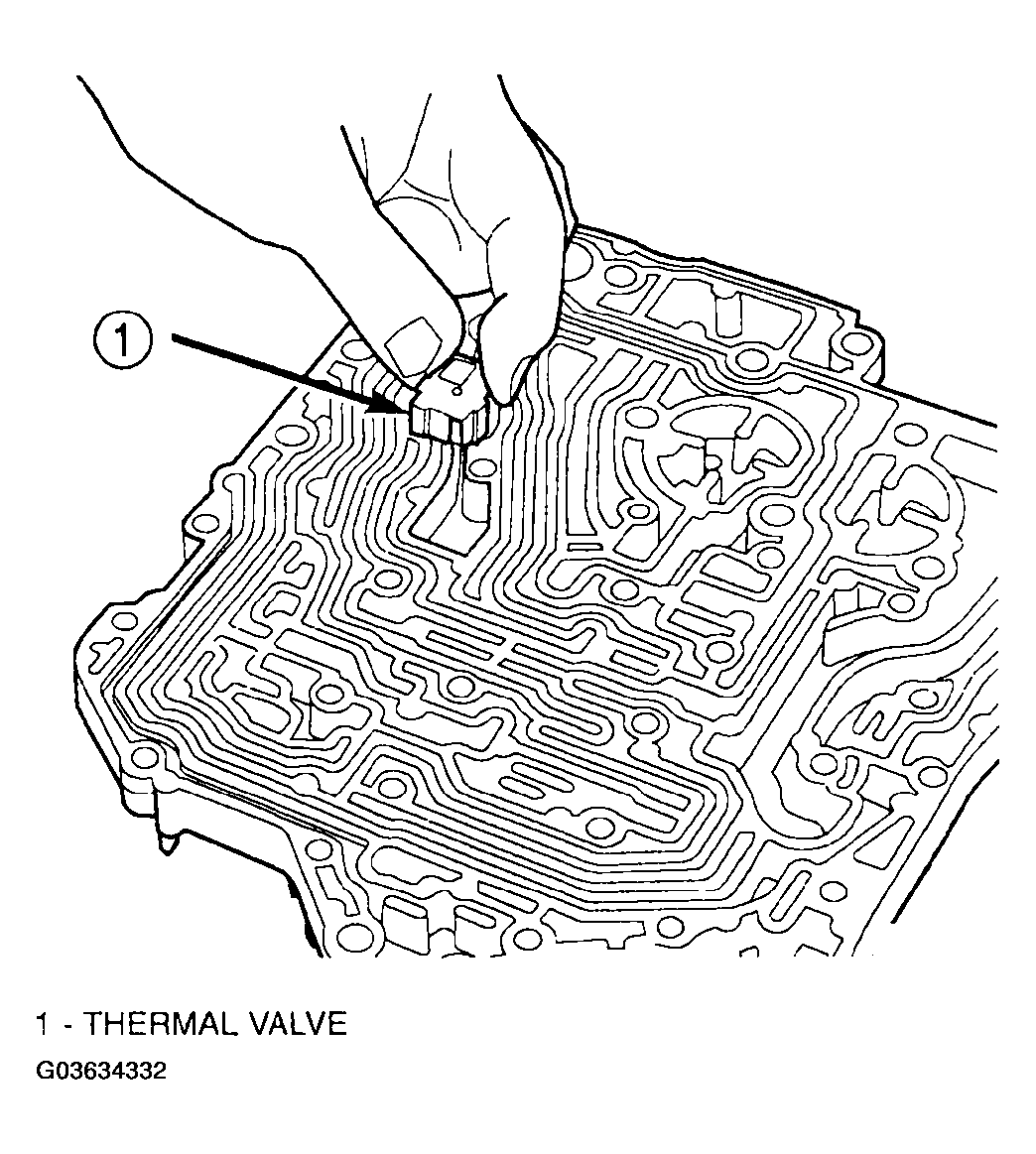

Fig 11: Removing Thermal Valve
Courtesy of DAIMLERCHRYSLER CORP.
Remove check balls (Fig 12).
NOTE: Tag all valve/spring assemblies for reassembly identification.

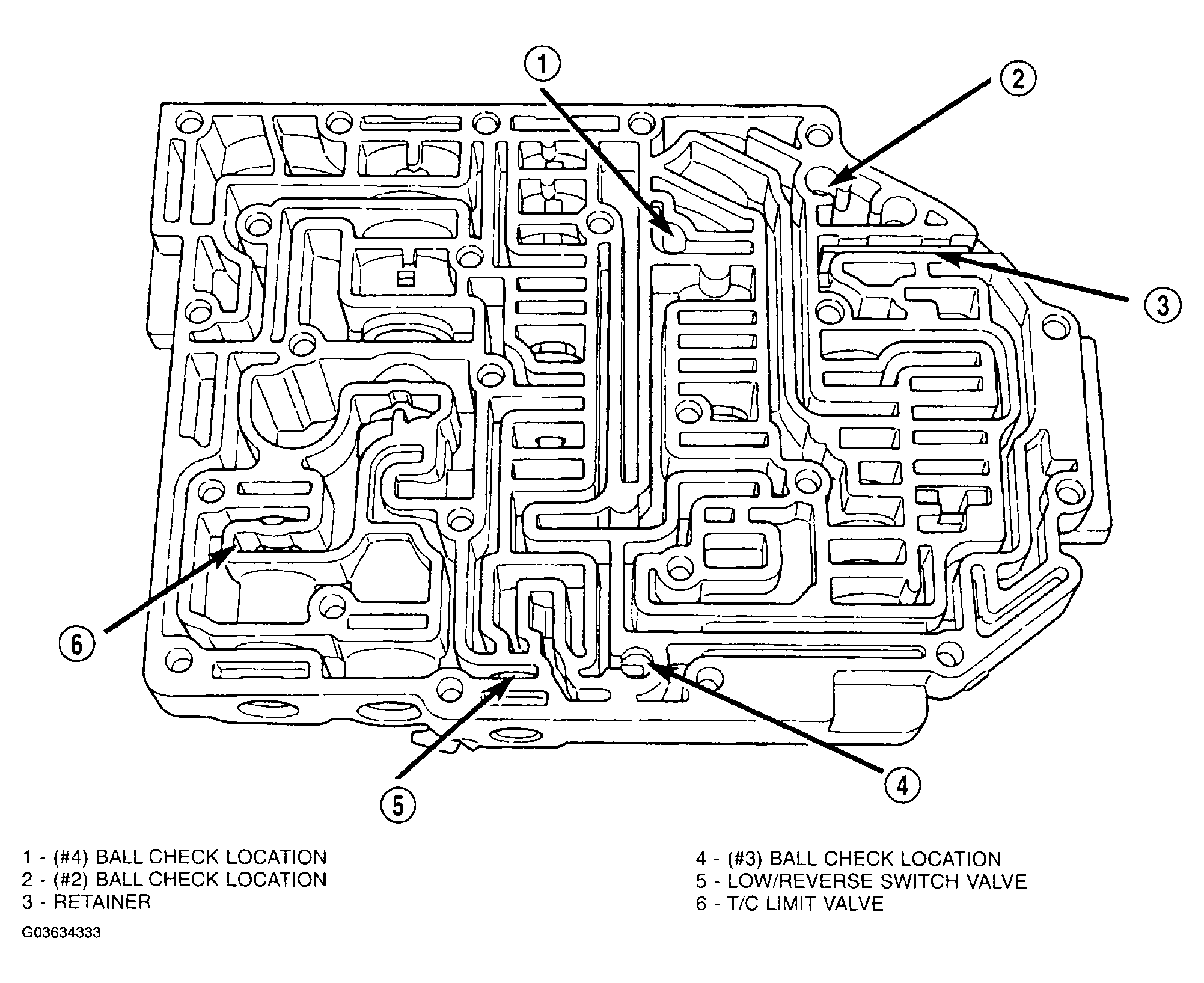

Fig 12: Identifying Ball Check Location
Courtesy of DAIMLERCHRYSLER CORP.
Remove dual retainer plate using Tool 6301 (Fig 13).

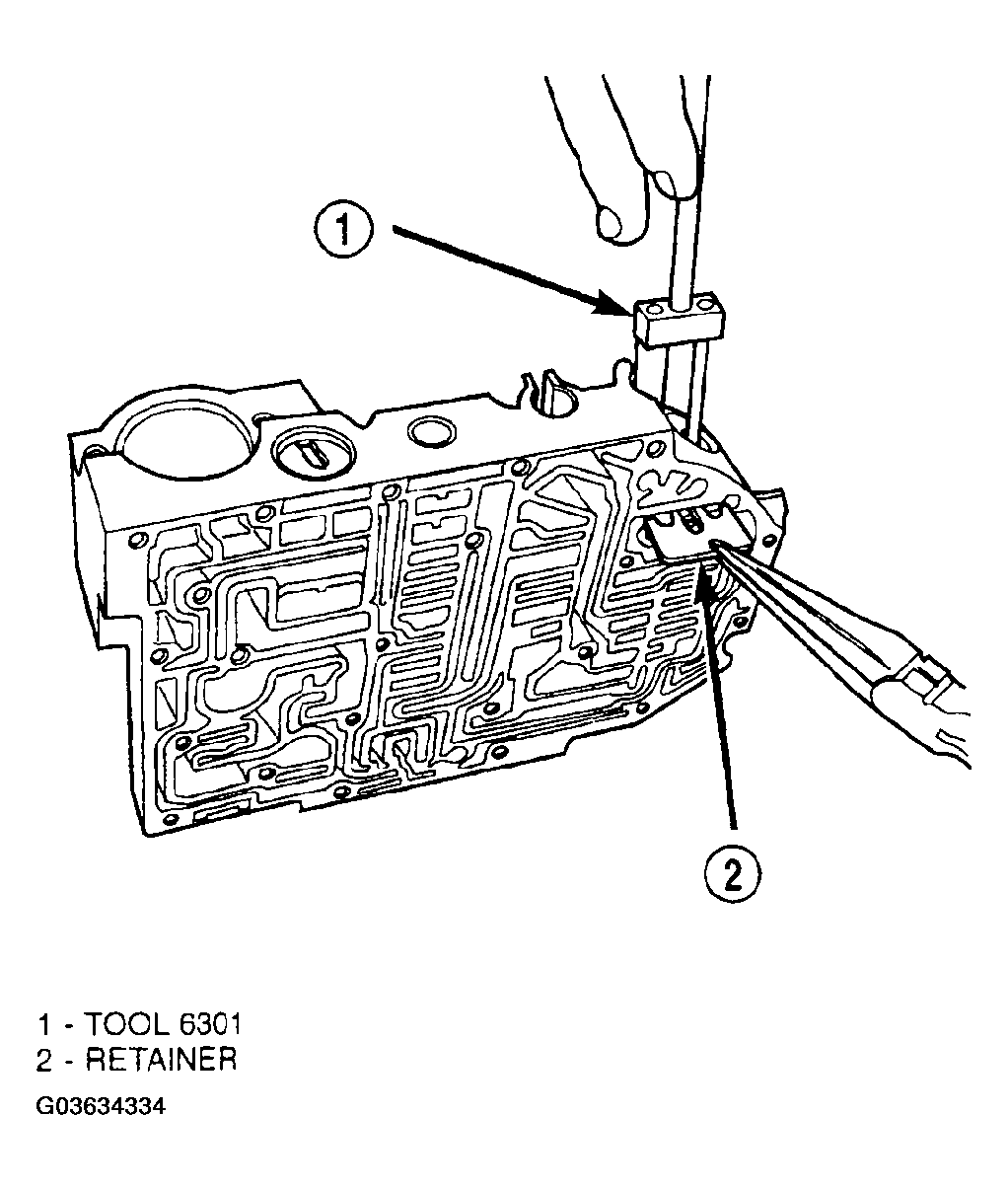

Fig 13: Removing Dual Retainer Plate using Tool 6301
Courtesy of DAIMLERCHRYSLER CORP.
Remove regulator valve spring retainer (Fig 14).

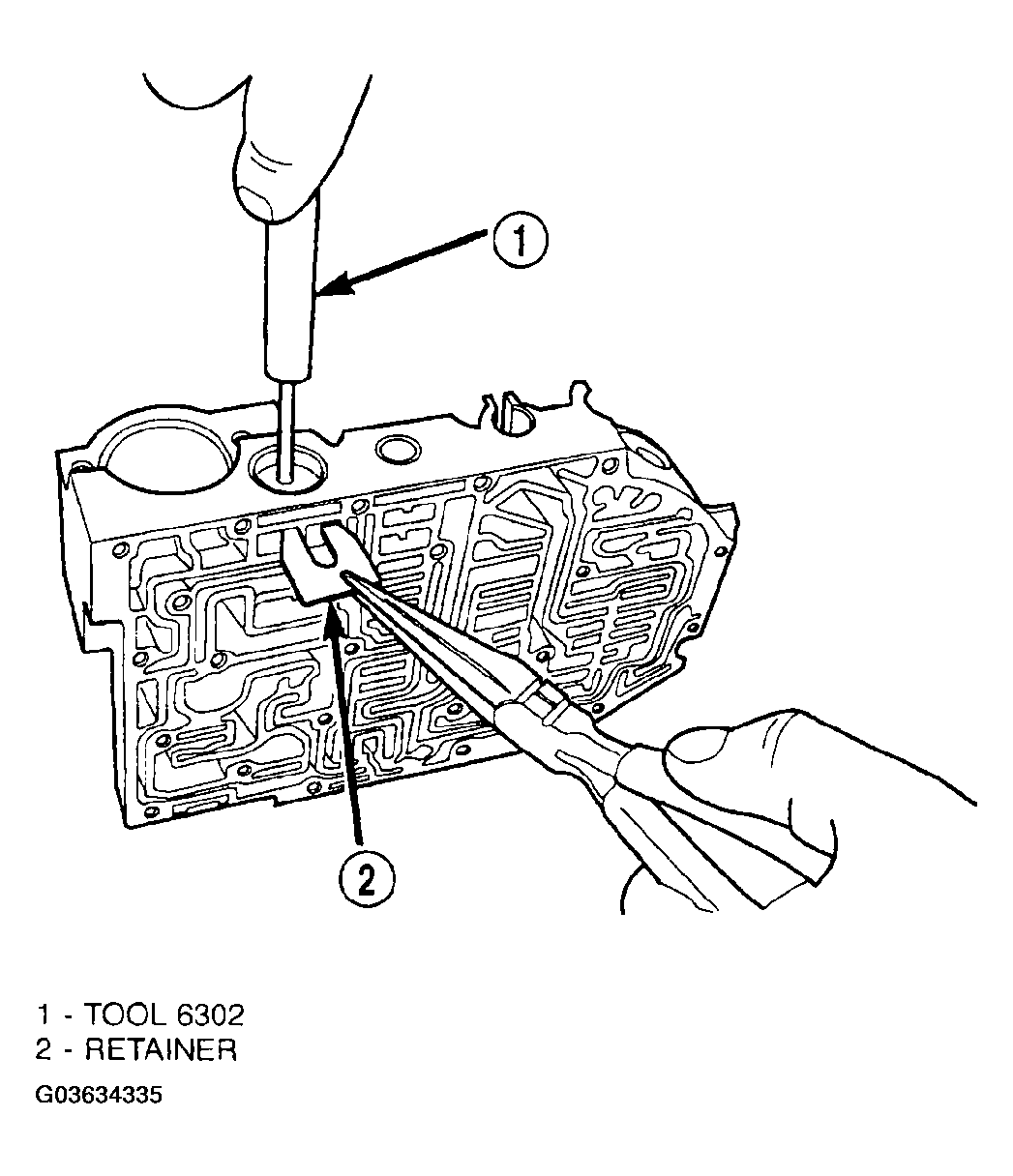

Fig 14: Removing Regulator Valve Spring Retainer using Tool 6302
Courtesy of DAIMLERCHRYSLER CORP.
Remove remaining retainers as shown in (Fig 15).

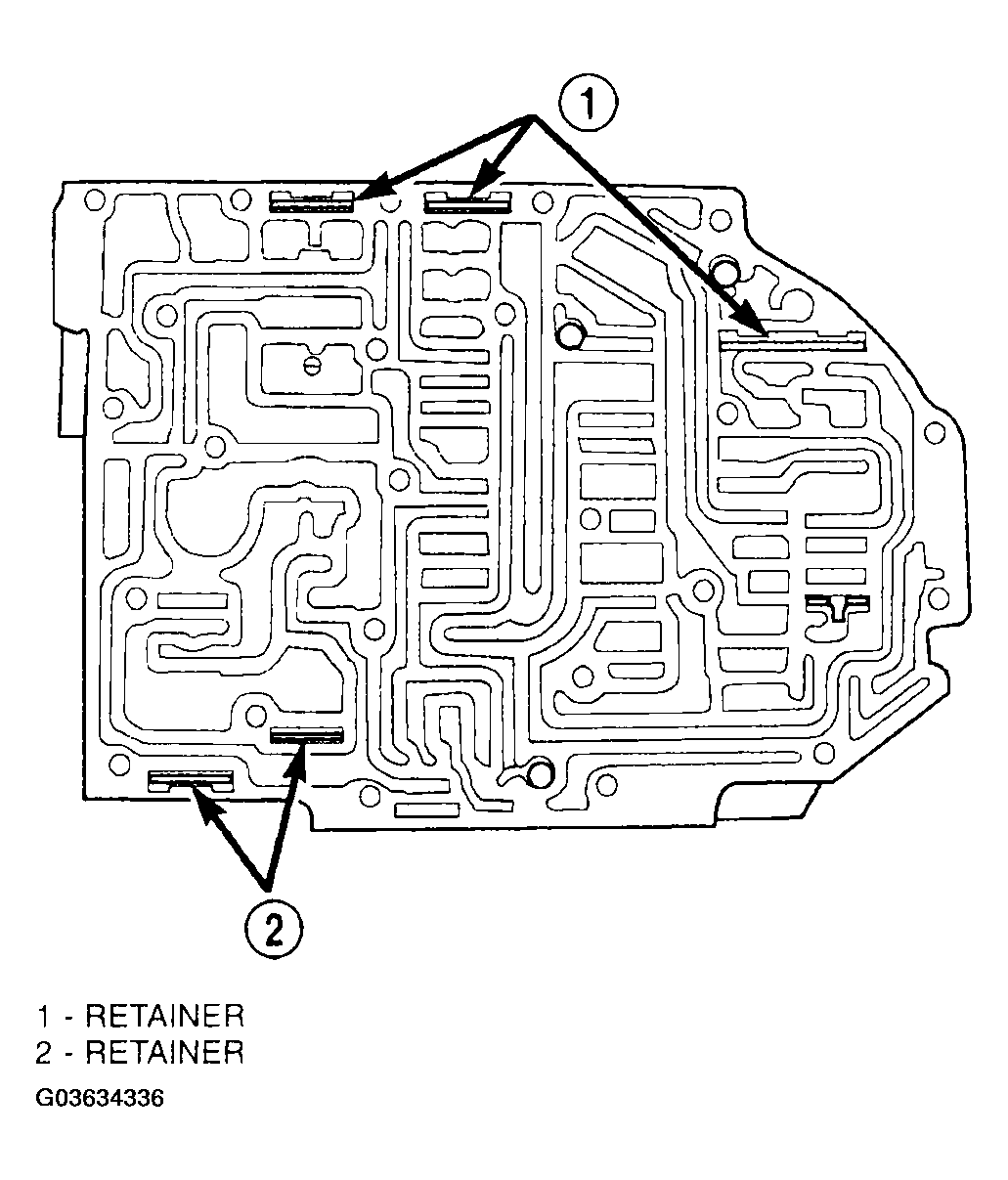

Fig 15: Identifying Valve Retainer Location
Courtesy of DAIMLERCHRYSLER CORP.

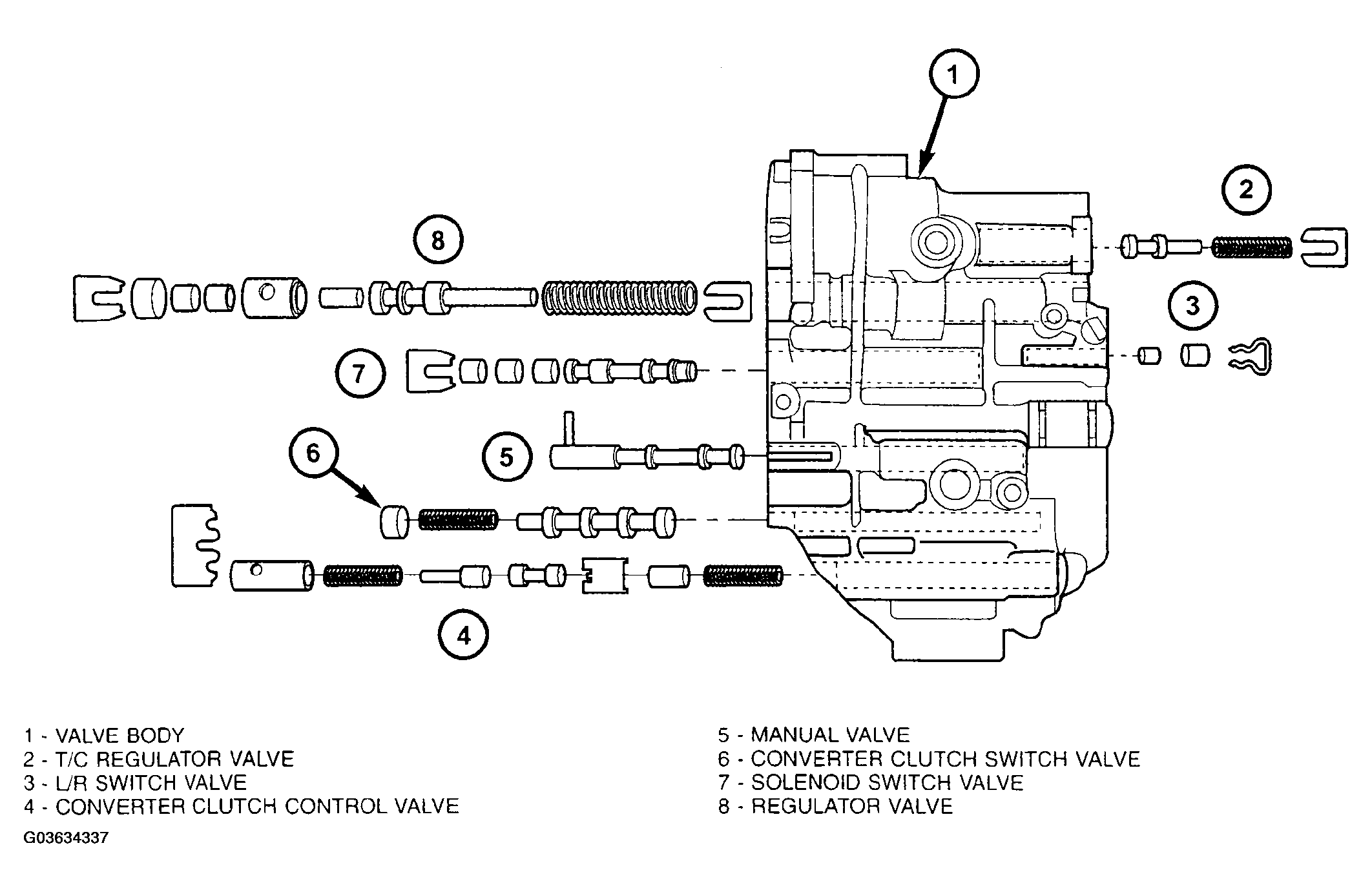

Remove valves and springs as shown in (Figure).
