Transmission Range Sensor: Installation

  1. Install transmission range sensor (TRS) to the valve body and torque retaining screw (Fig 1) to 5 N.m (45 in. lbs.).

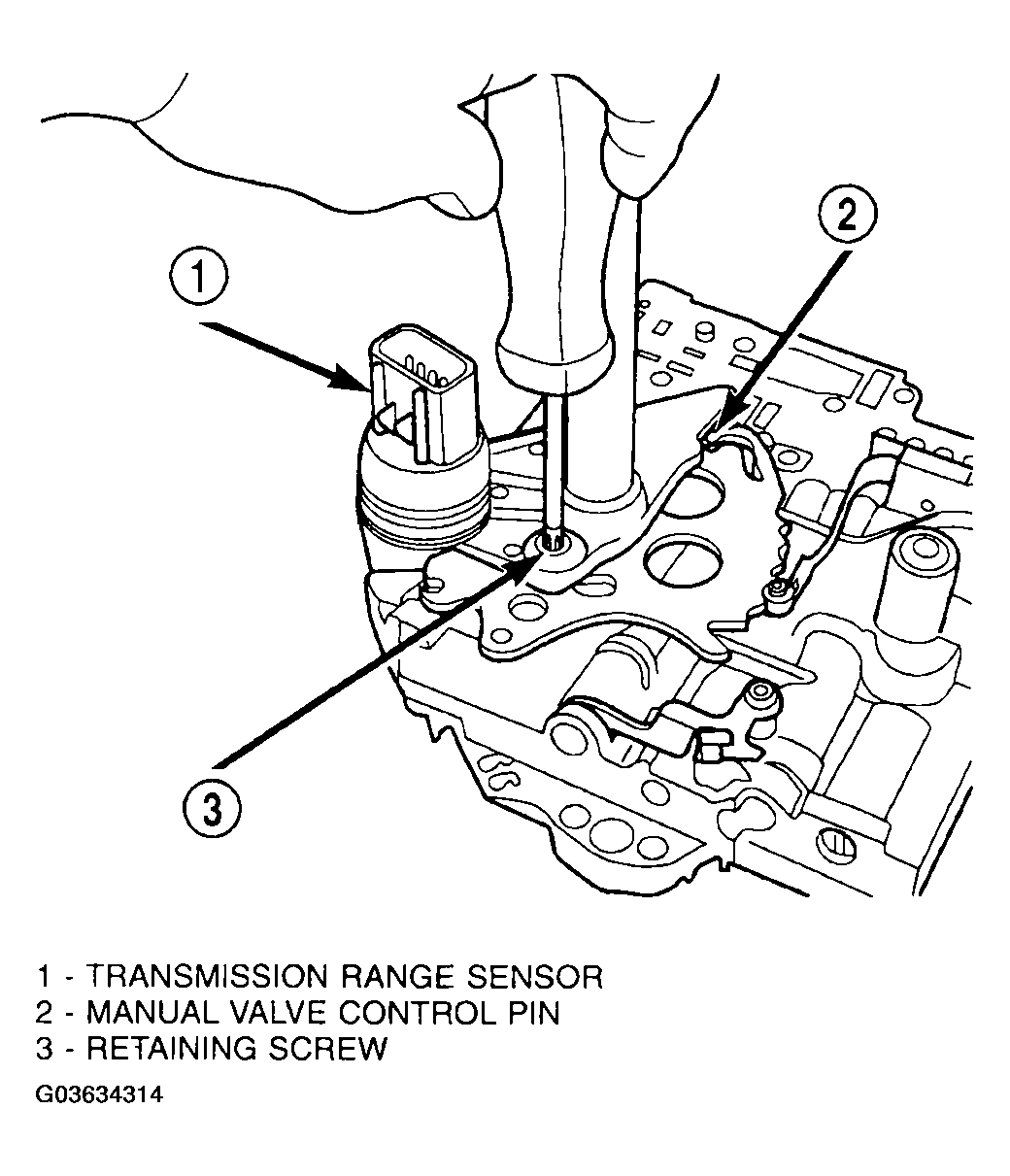

    Fig 1: Removing Transmission Range Sensor
    G03634314Courtesy of DAIMLERCHRYSLER CORP.
  2. Install valve body to transaxle. (Refer to INSTALLATION )
