Speed Sensor - Output: Removal

Disconnect battery negative cable.
Raise vehicle on hoist.
Disconnect output speed sensor connector (Fig 1).

Fig 1: Identifying Transmission Connectors
Courtesy of DAIMLERCHRYSLER CORP.
Unscrew and remove output speed sensor (Fig 2).

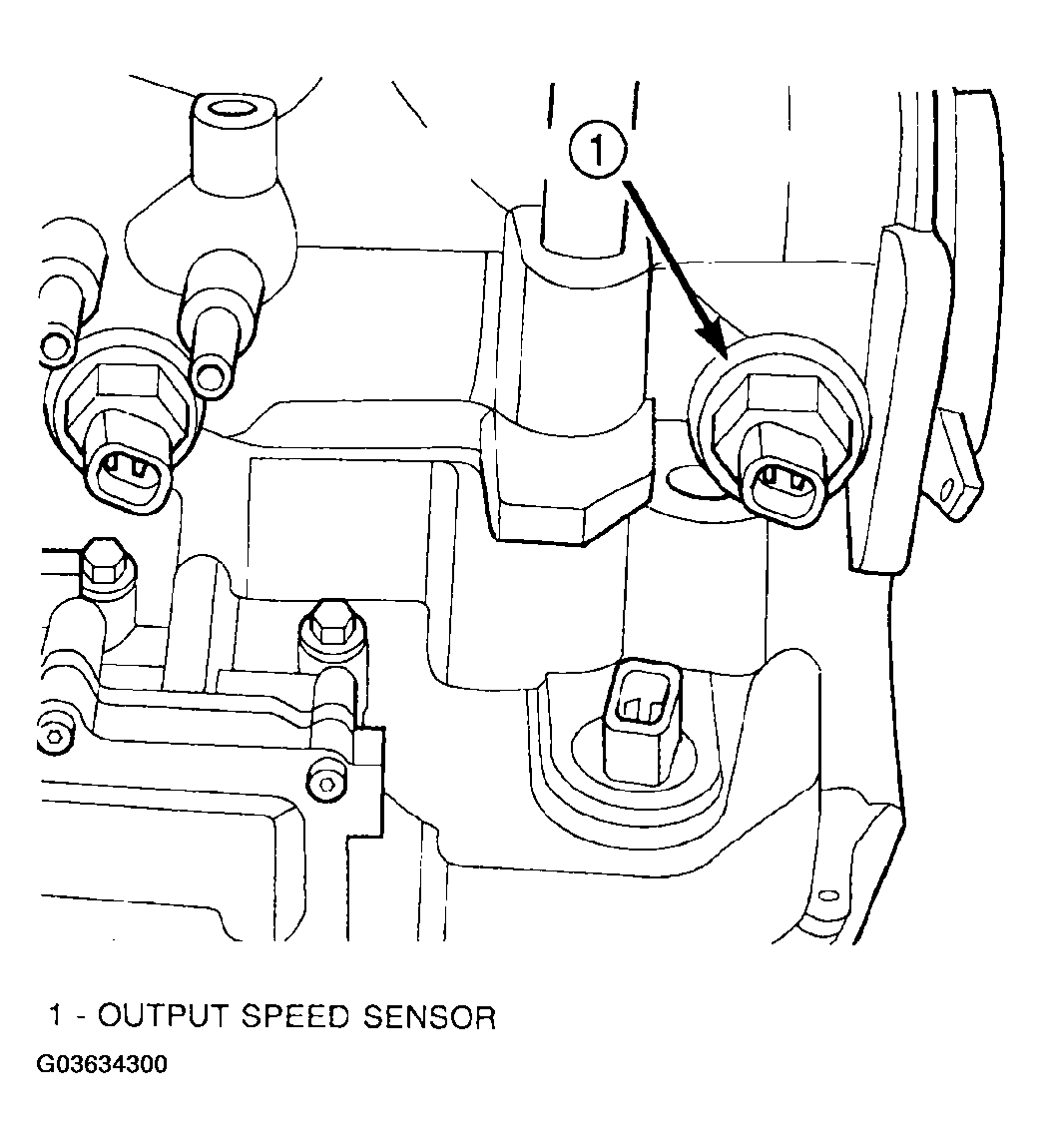

Fig 2: Identifying Output Speed Sensor
Courtesy of DAIMLERCHRYSLER CORP.
Inspect speed sensor o-ring (Fig 3) and replace if necessary.

Fig 3: Identifying O-ring Location
Courtesy of DAIMLERCHRYSLER CORP.
