Home >> Chrysler >> 2004 >> Sebring GTC, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Overhaul - 41TE Automatic Transmission >> Speed Sensor - Input >> Installation

Speed Sensor - Input: Installation

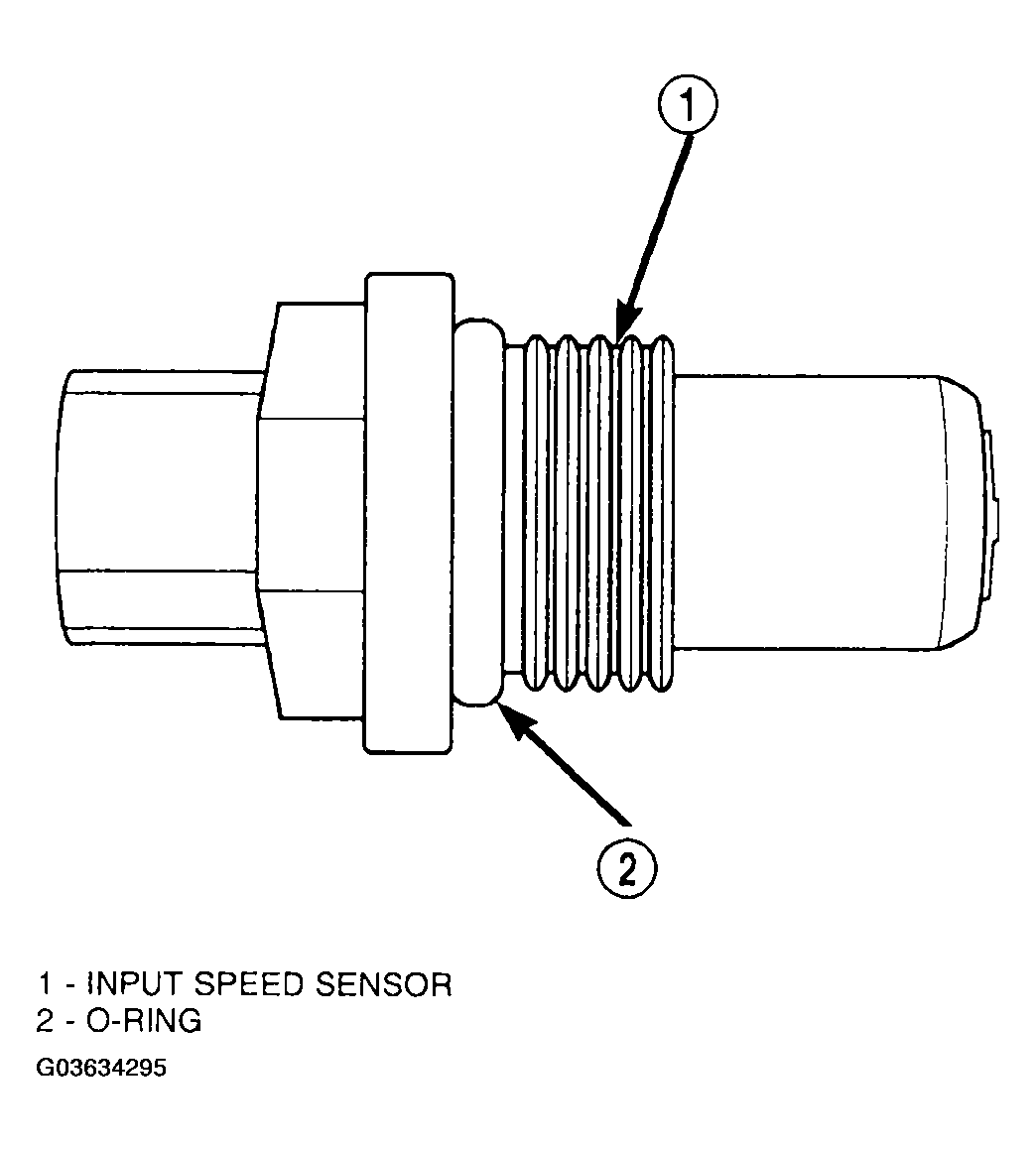

  1. Verify o-ring is installed into position (Figure).

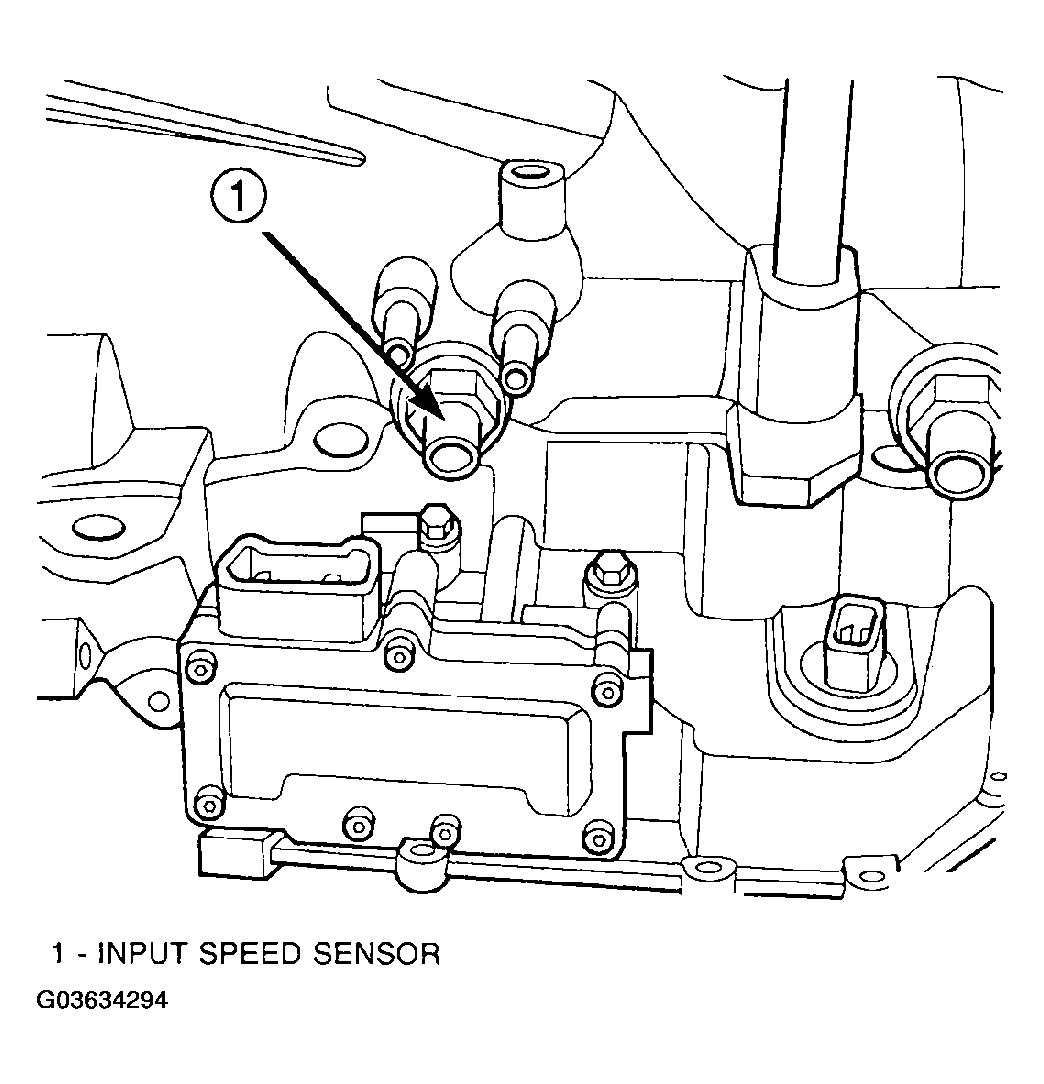

  2. Install and tighten input speed sensor to 27 N.m (20 ft. lbs.) (Figure).

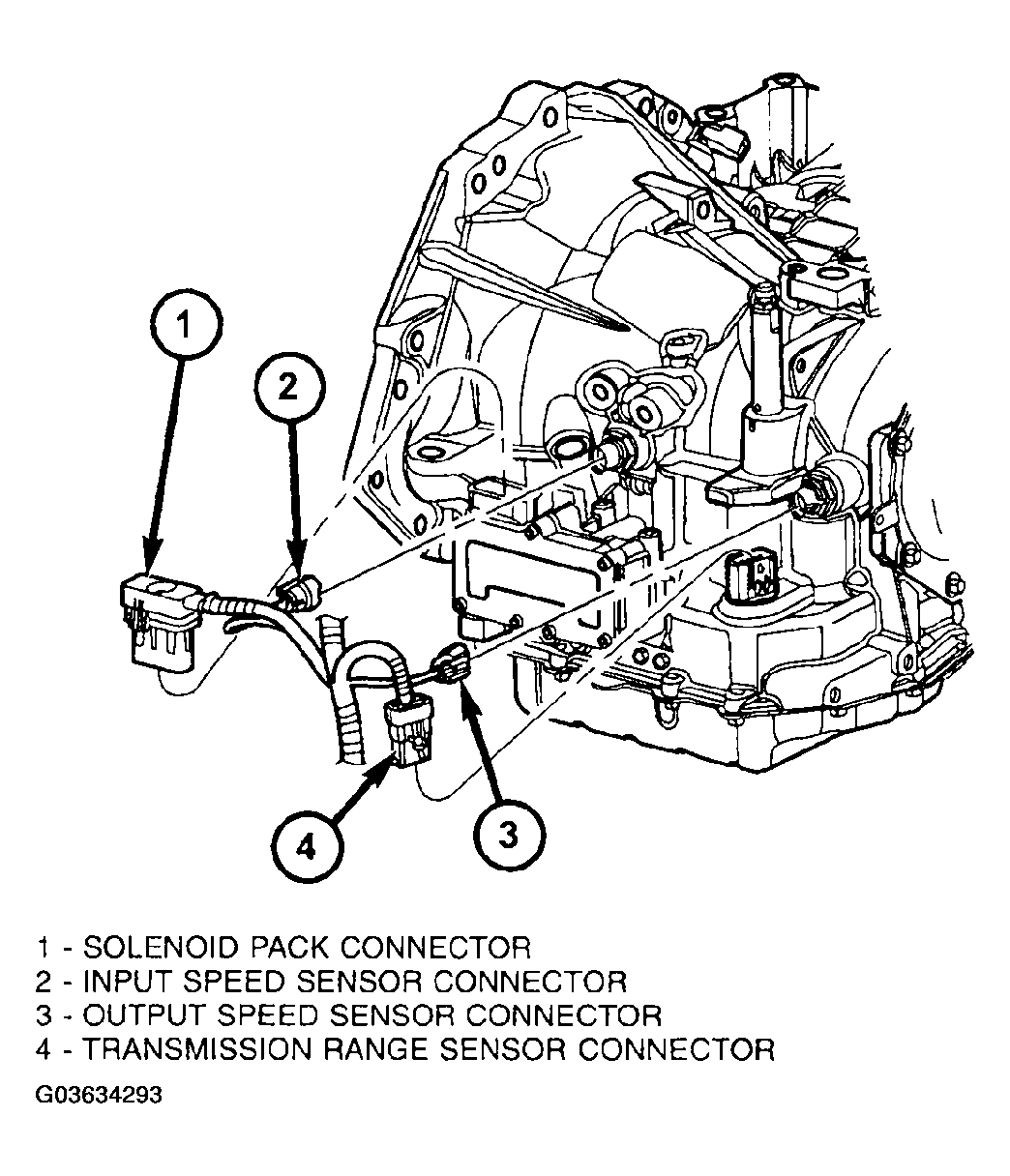

  3. Connect speed sensor connector (Figure).
  4. Connect battery negative cable.
