Shift Interlock Mechanism: Installation

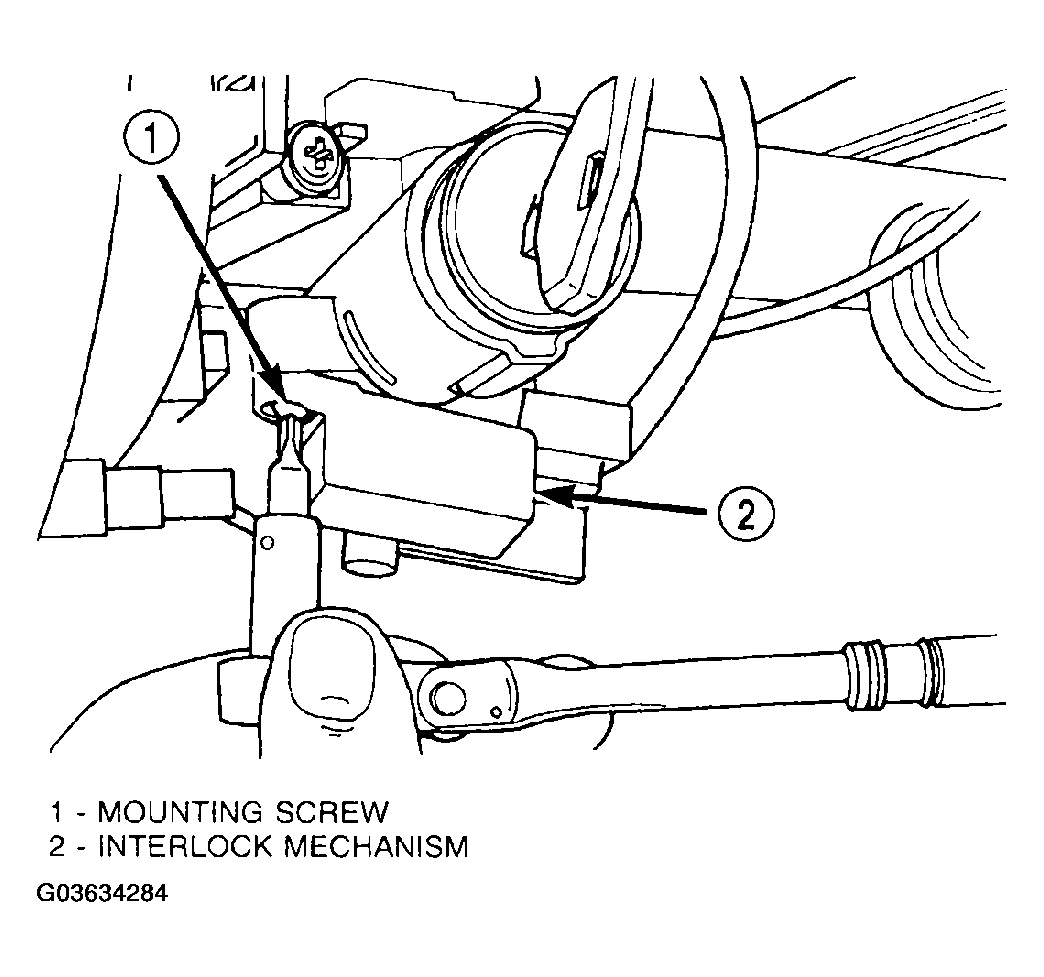

  1. Position the interlock housing at steering column. Install the two interlock mechanism to steering column attaching screws (Figure). Torque screws to 3 N.m (21 in. lbs.).
  2. Snap the interlock cable into the housing.
  3. Install the lower column covers, shrouds and knee bolster.
