Shift Interlock Cable: Installation

CAUTION: When installing interlock cable assembly, care must be taken not to bend exposed cable wire and slug at shifter end of cable.

Route interlock cable into lower dash panel and towards console as removed.

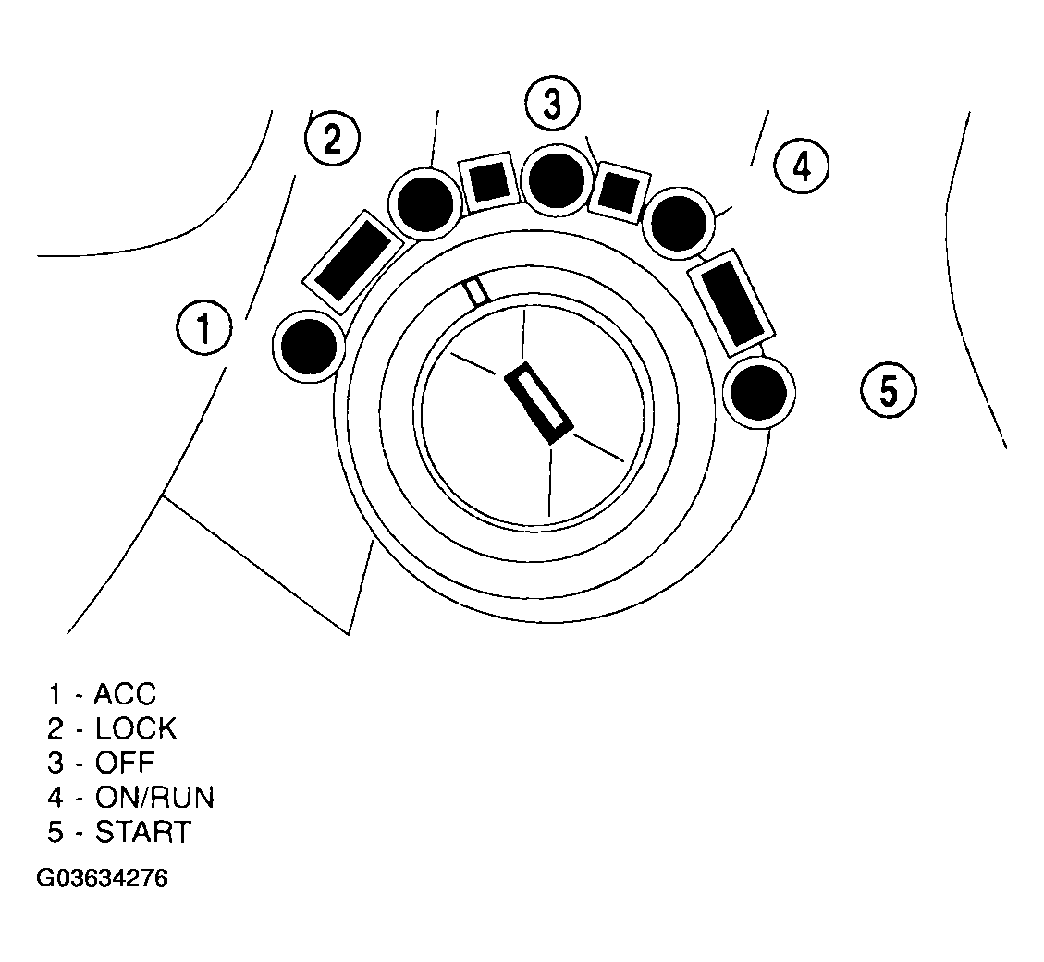

Turn the ignition switch to the ON/RUN position (Figure).

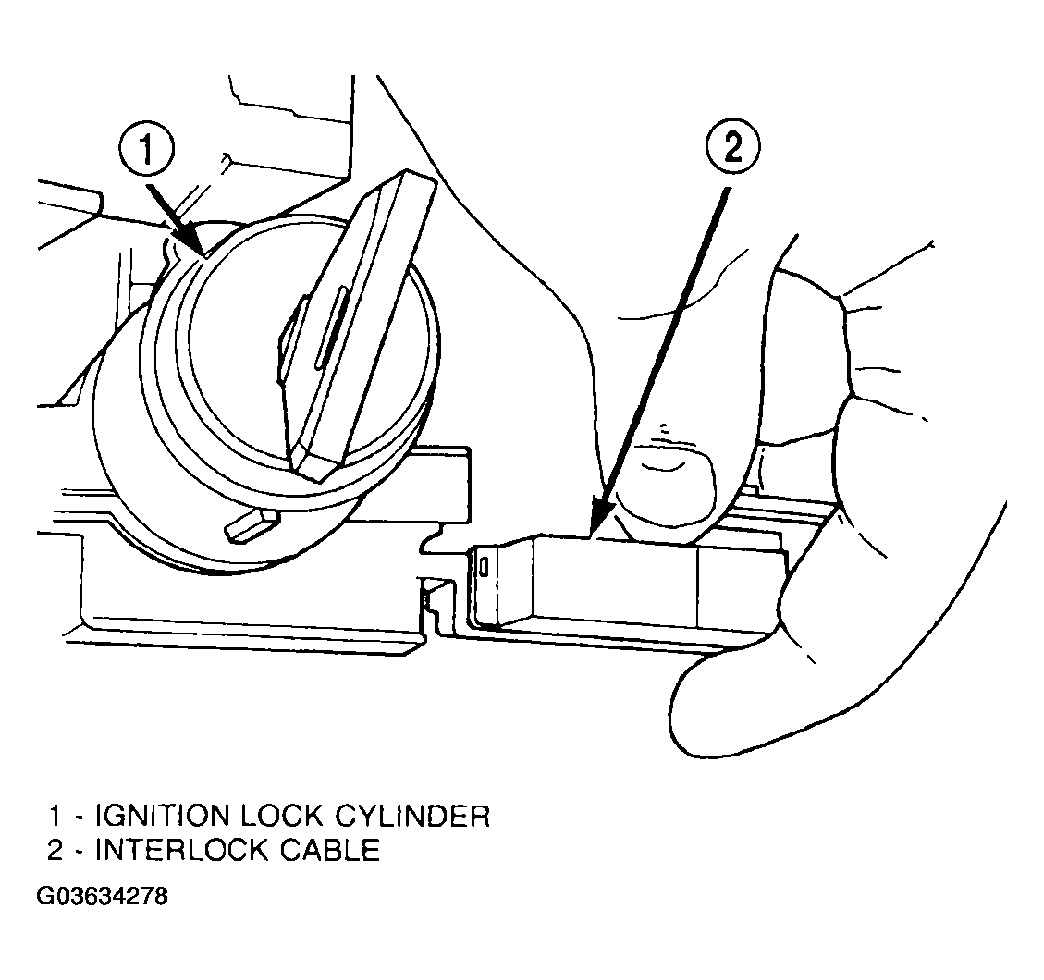

Install the interlock cable into the interlock housing at the steering column (Fig 1). Verify the cable snaps into the housing.

Fig 1: Interlocking Cable At Housing
Courtesy of DAIMLERCHRYSLER CORP.
Install nylon cable retainer to lower column mounting stud.
Connect BTSI solenoid connector.

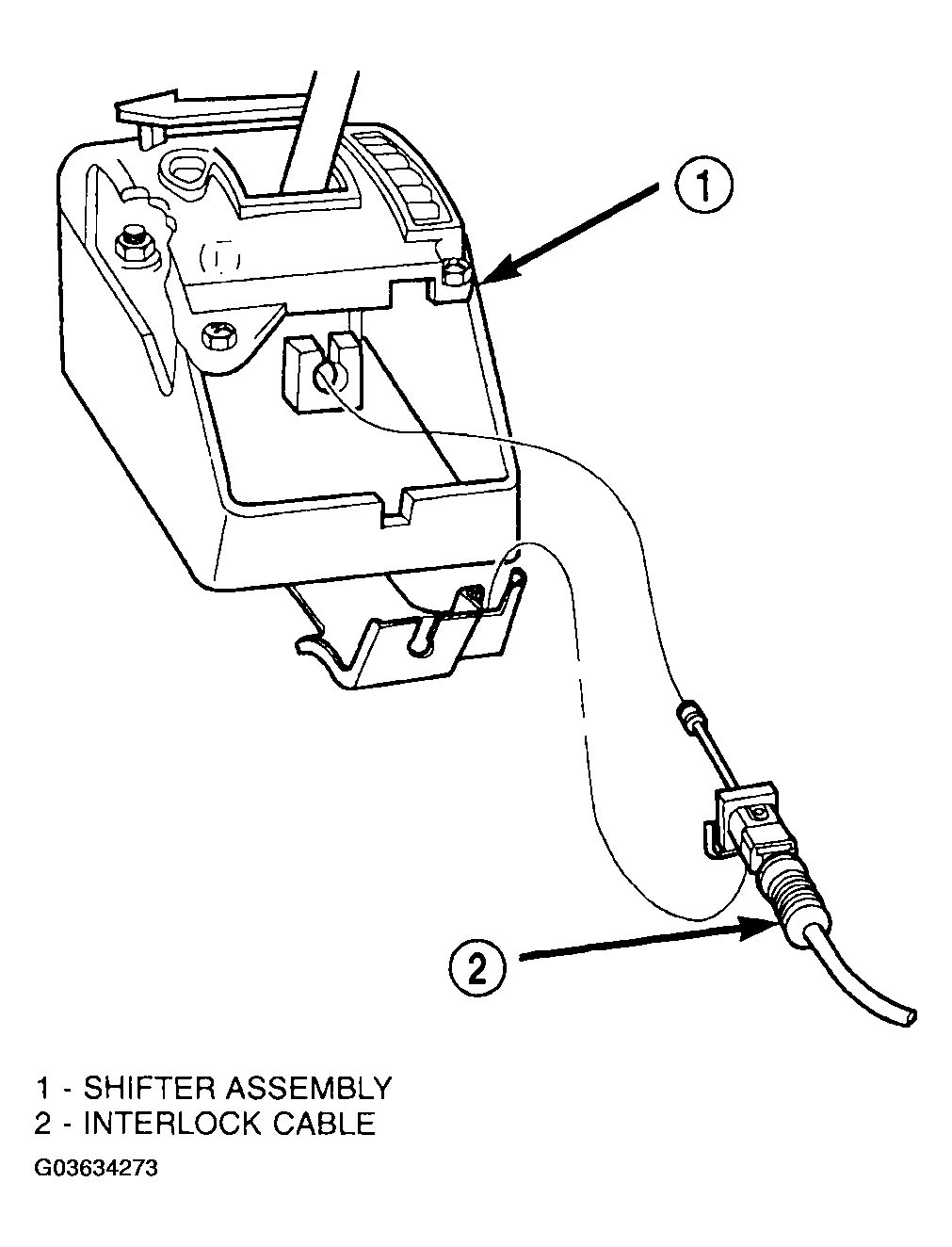

Insert interlock cable core wire into interlock adjustment lever groove. Make sure the interlock cable slug is seated in the groove (Figure).
Insert interlock cable adjuster end into bracket and snap into place (Figure).
NOTE: The Interlock Cable MUST be adjusted. (Refer to ADJUSTMENTS )

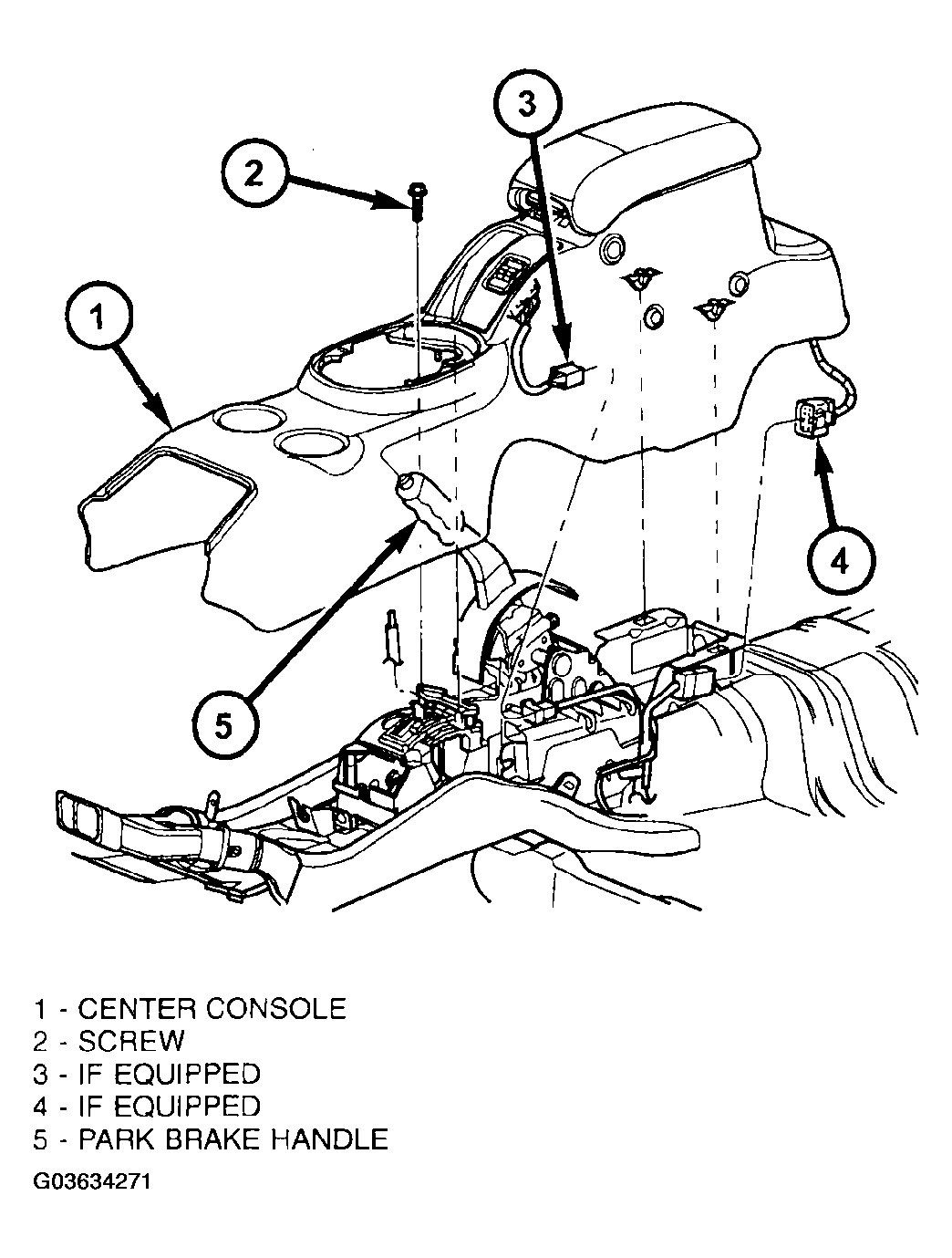

Install center console assembly (Figure).
Install gearshift bezel (Figure).

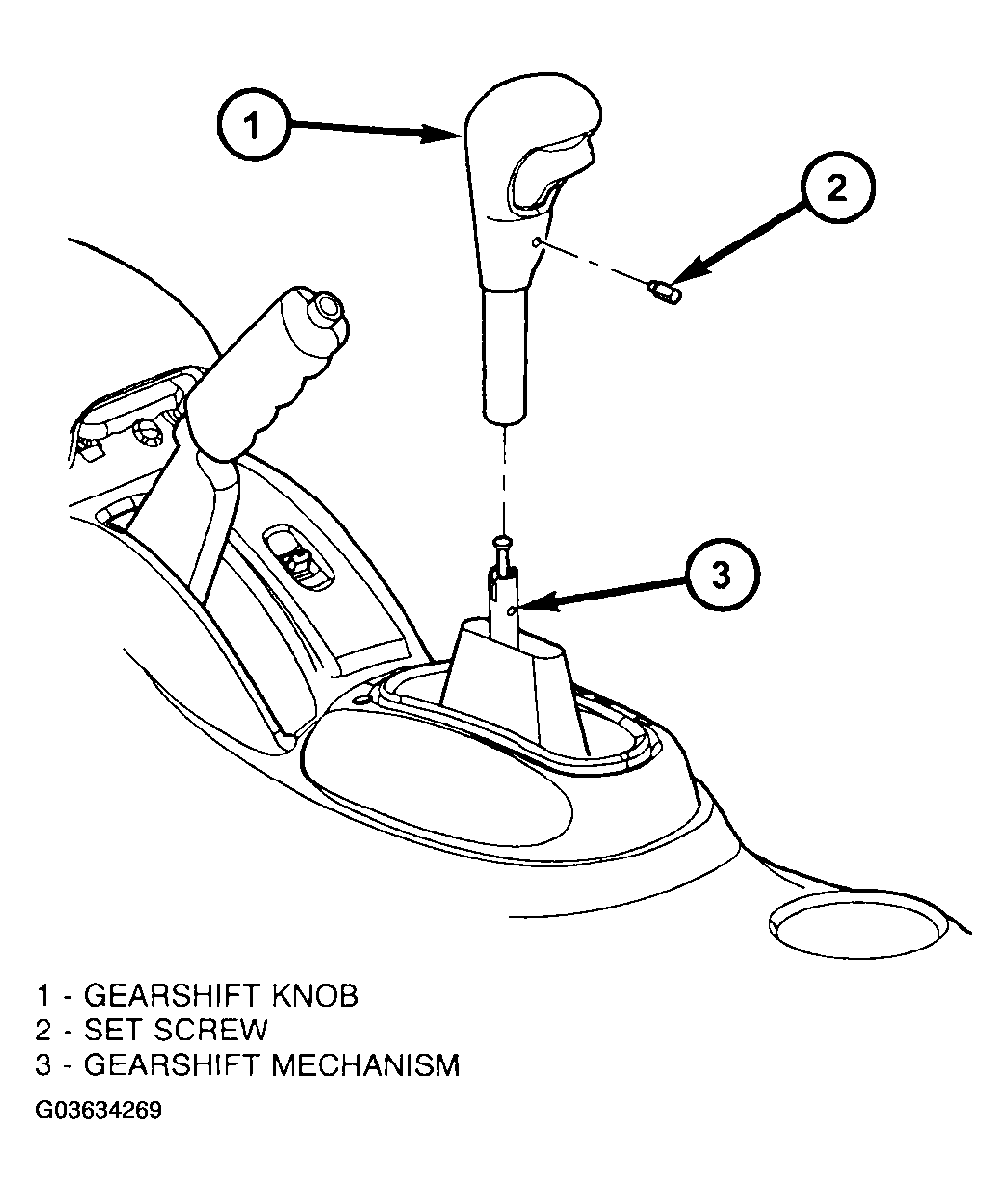

Install the gearshift knob and tighten set screw (Figure) to 2 N.m (20 in.lbs.).
Tilt wheel to full down position and install upper steering column shroud.

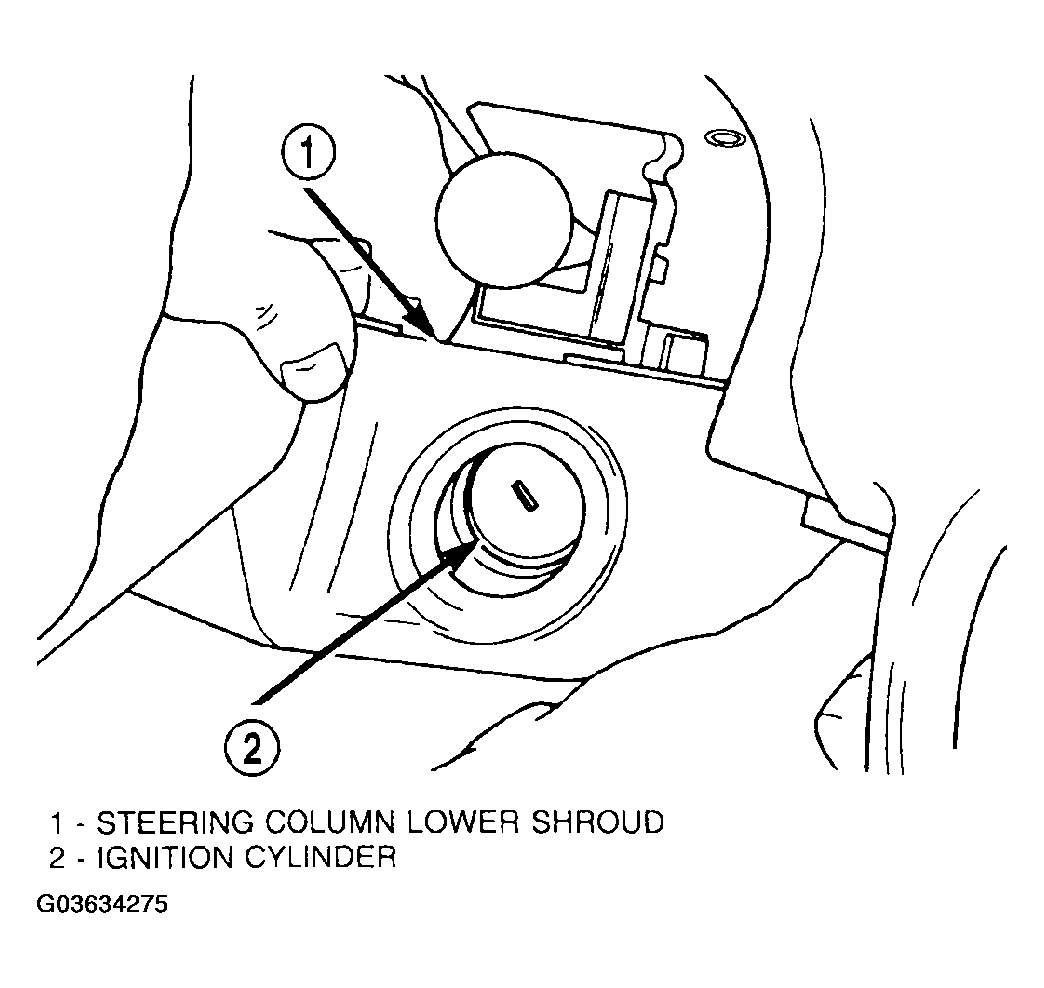

Install steering column lower shroud (Figure).
Install lower knee bolster screws and knee bolster.

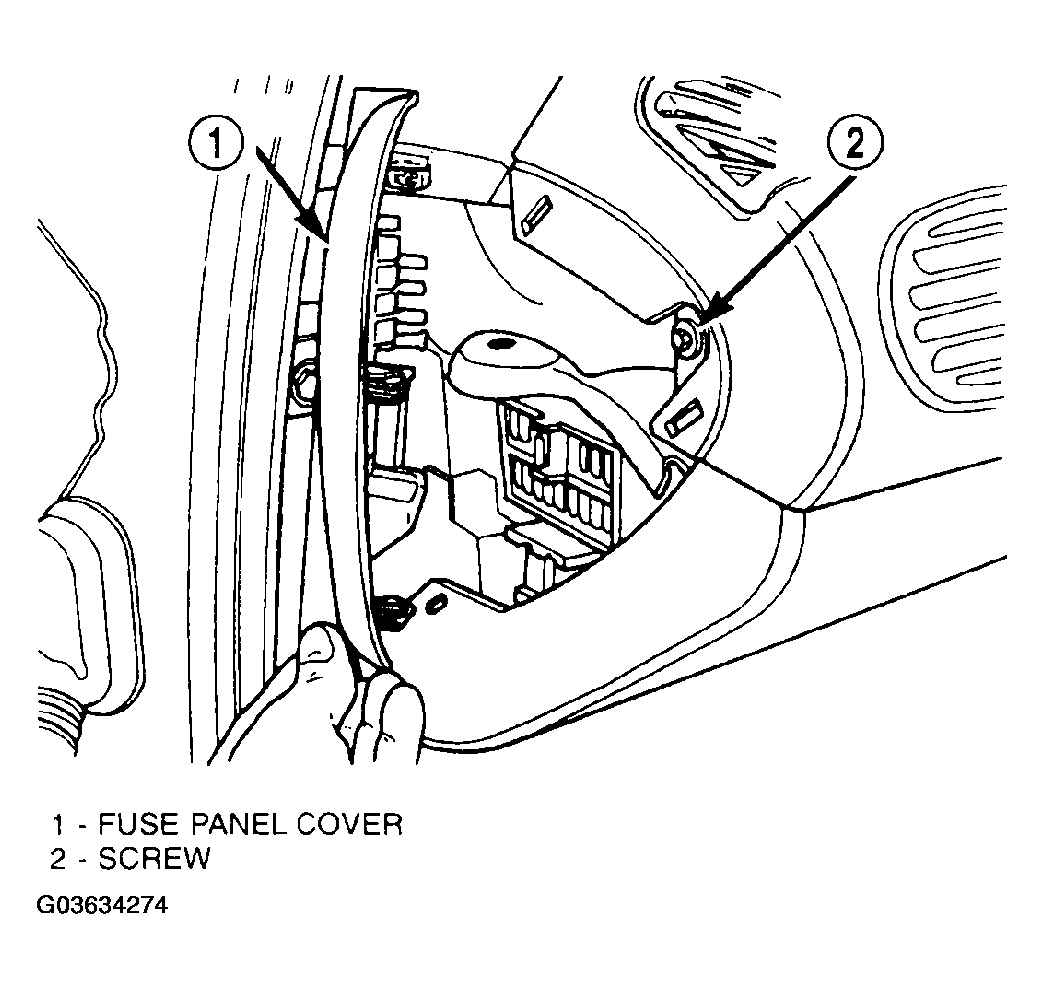

Install fuse panel cover (Figure).
Connect the battery negative cable.
