Gearshift Mechanism: Installation

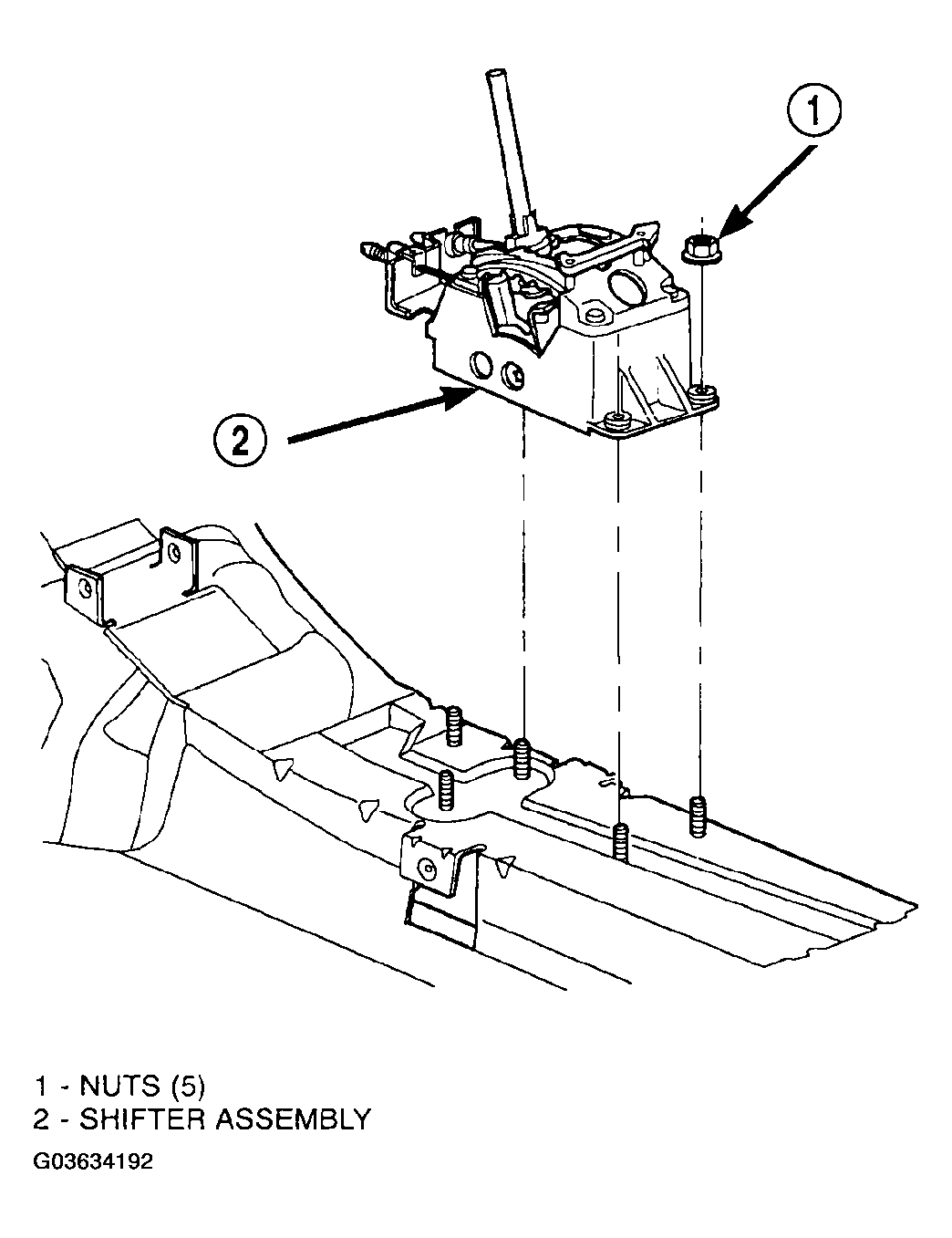

- Install shifter mechanism (Figure). mechanism-to-floor pan nuts to 17 N.m (150 in. lbs.).

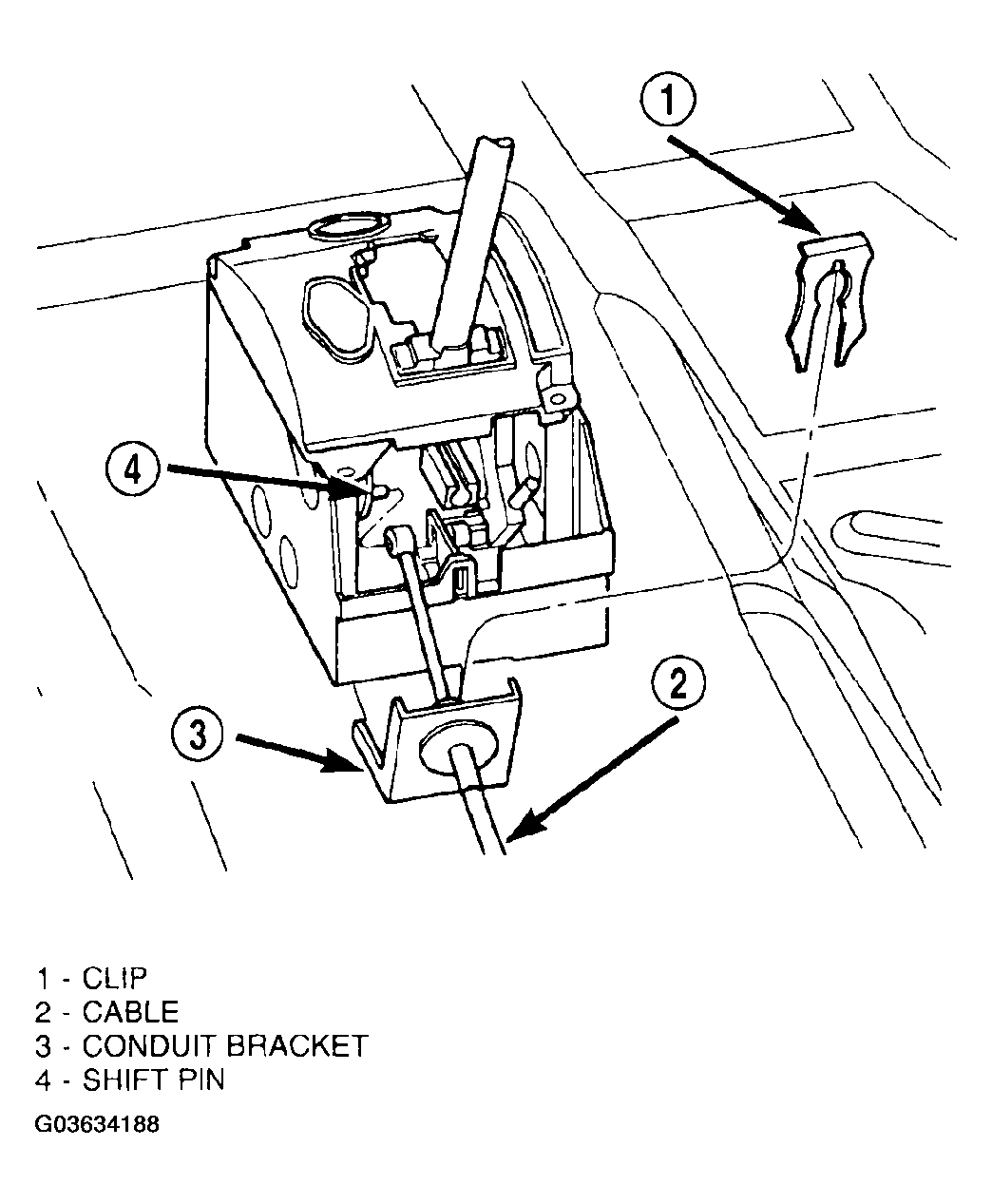

- Install gearshift cable into conduit bracket and onto shift pin. Install retainer clip (Figure).
- Tighten cable adjuster nut to 23 N.m (200 in. lbs.).

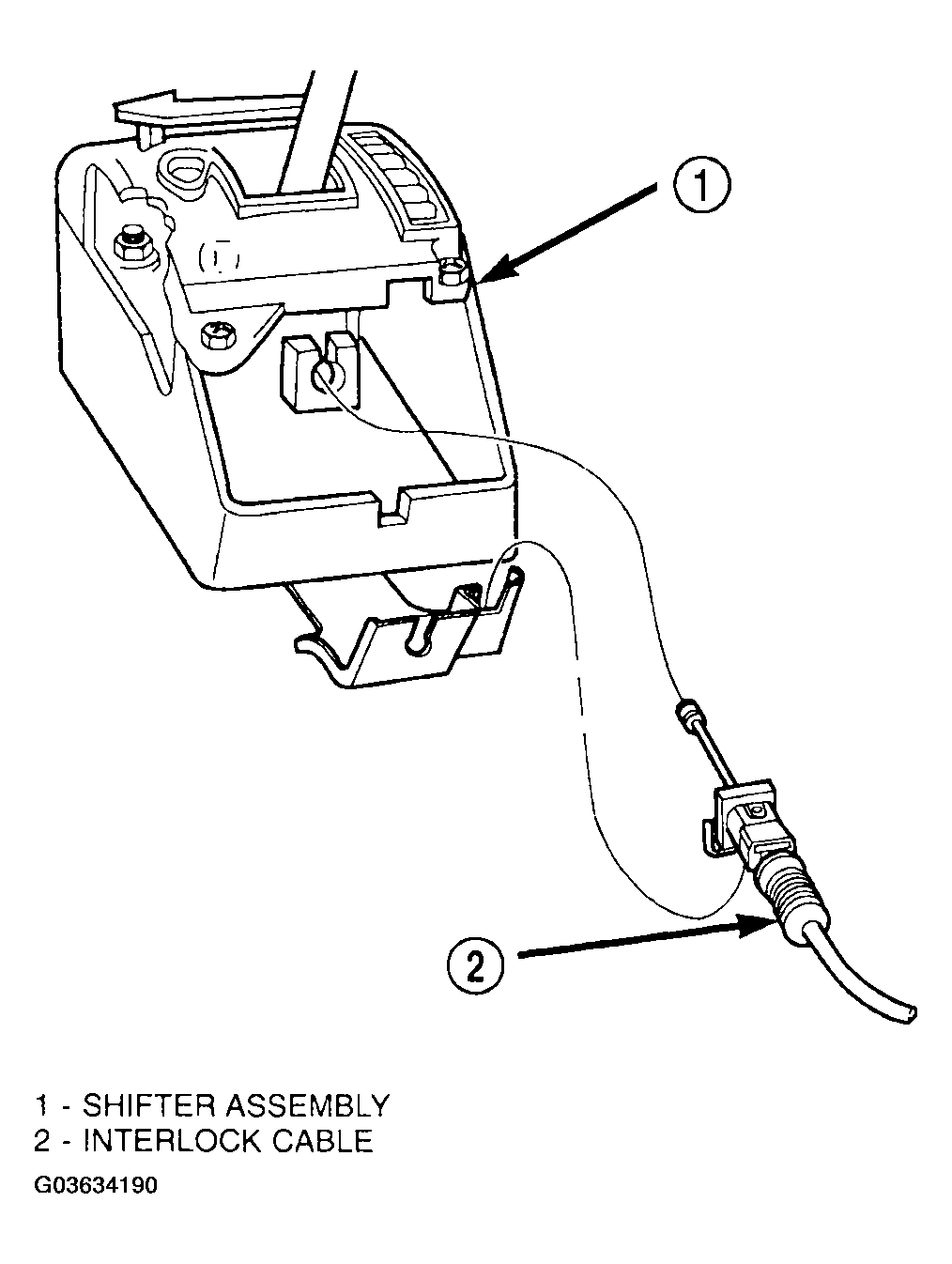

- Insert interlock cable core wire into interlock adjustment lever groove. Make sure the interlock cable slug is seated in the groove (Figure).
- Insert interlock cable adjuster end into bracket and snap into place (Figure).
- Adjust the gearshift and interlock cables. Refer to ADJUSTMENTS in this group.
NOTE:
Gearshift and Interlock cables MUST be adjusted. Refer to ADJUSTMENTS section in this group for proper procedures.

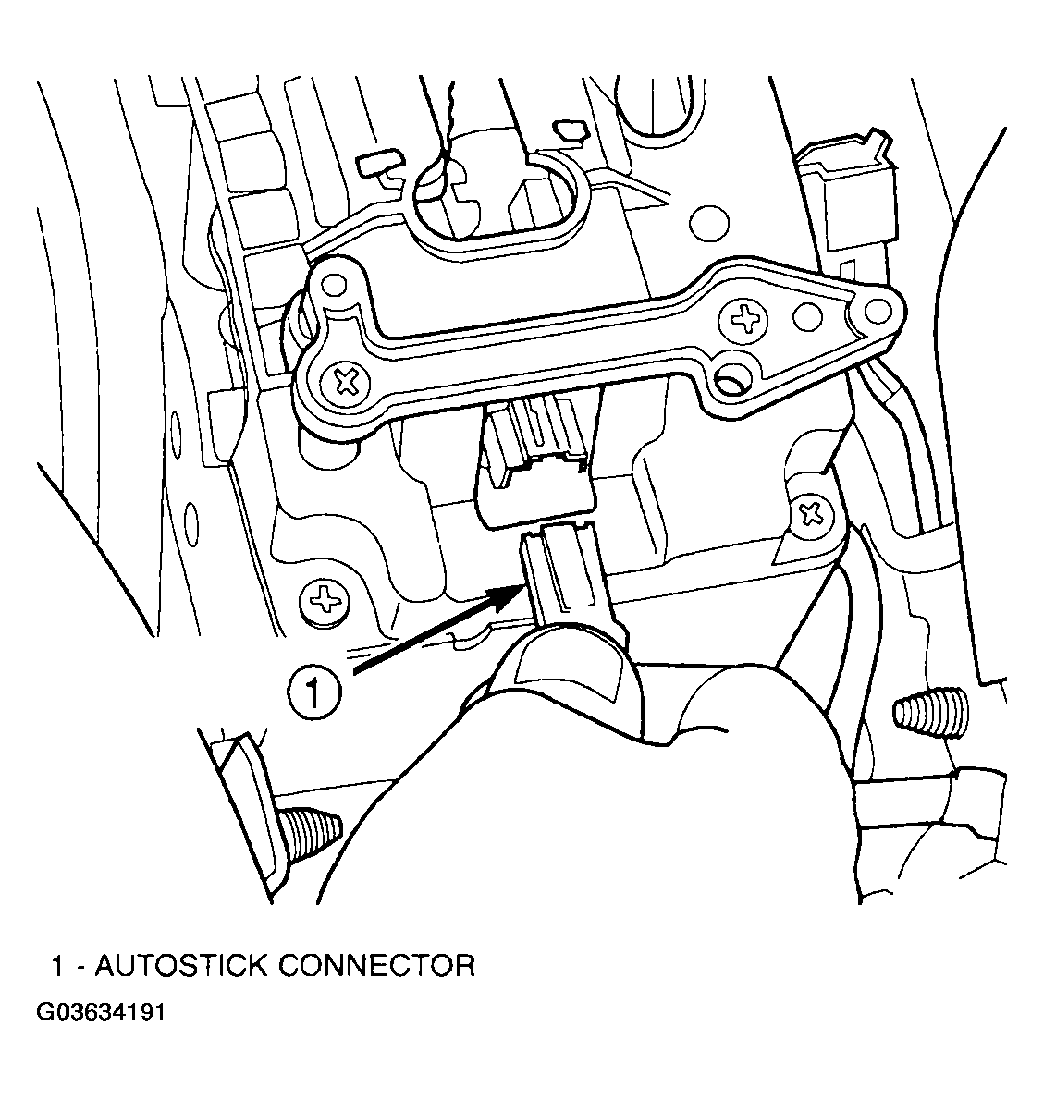

- If equipped with Autostick, connect the Autostick connector (Figure).

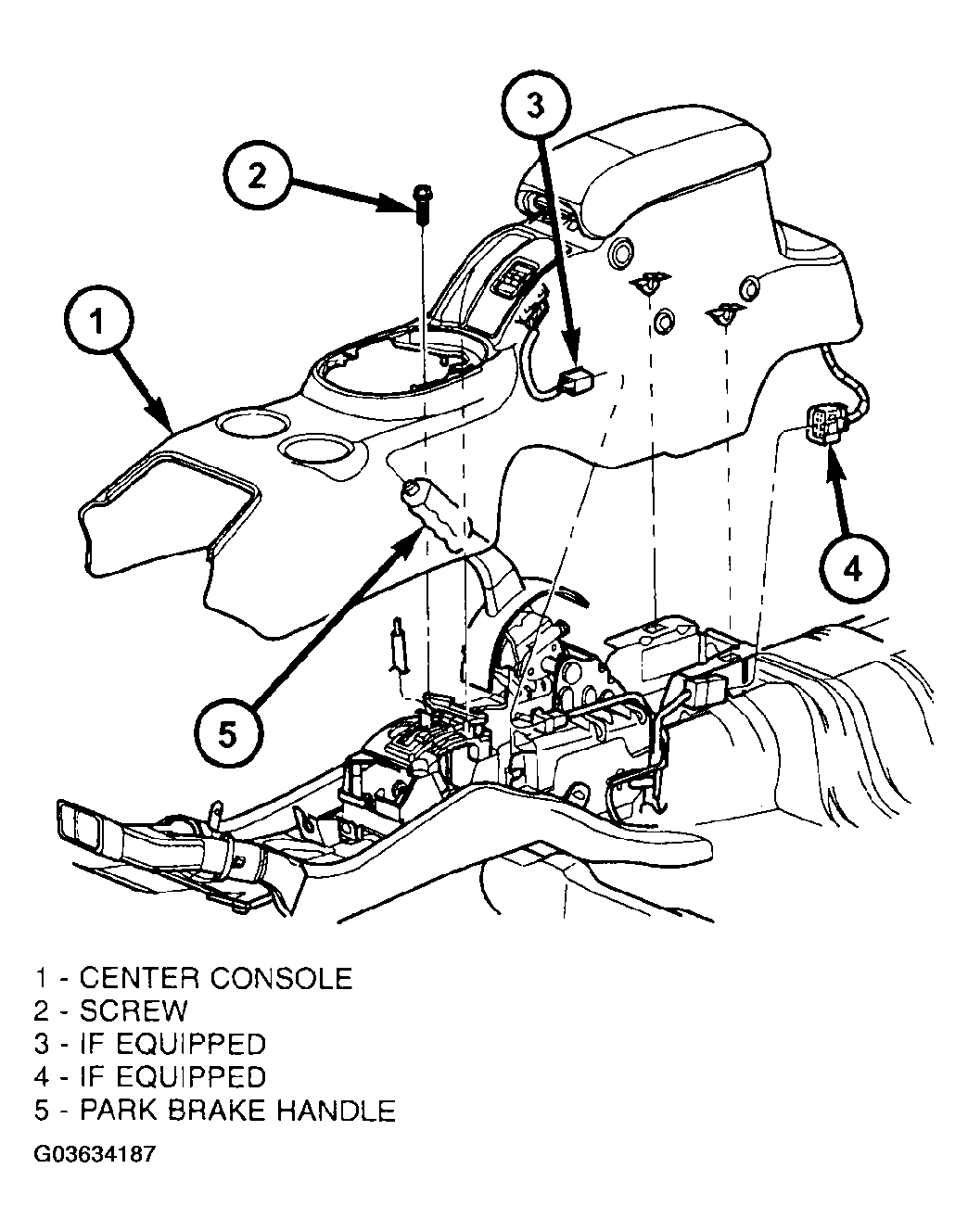

- Install center console assembly (Figure).

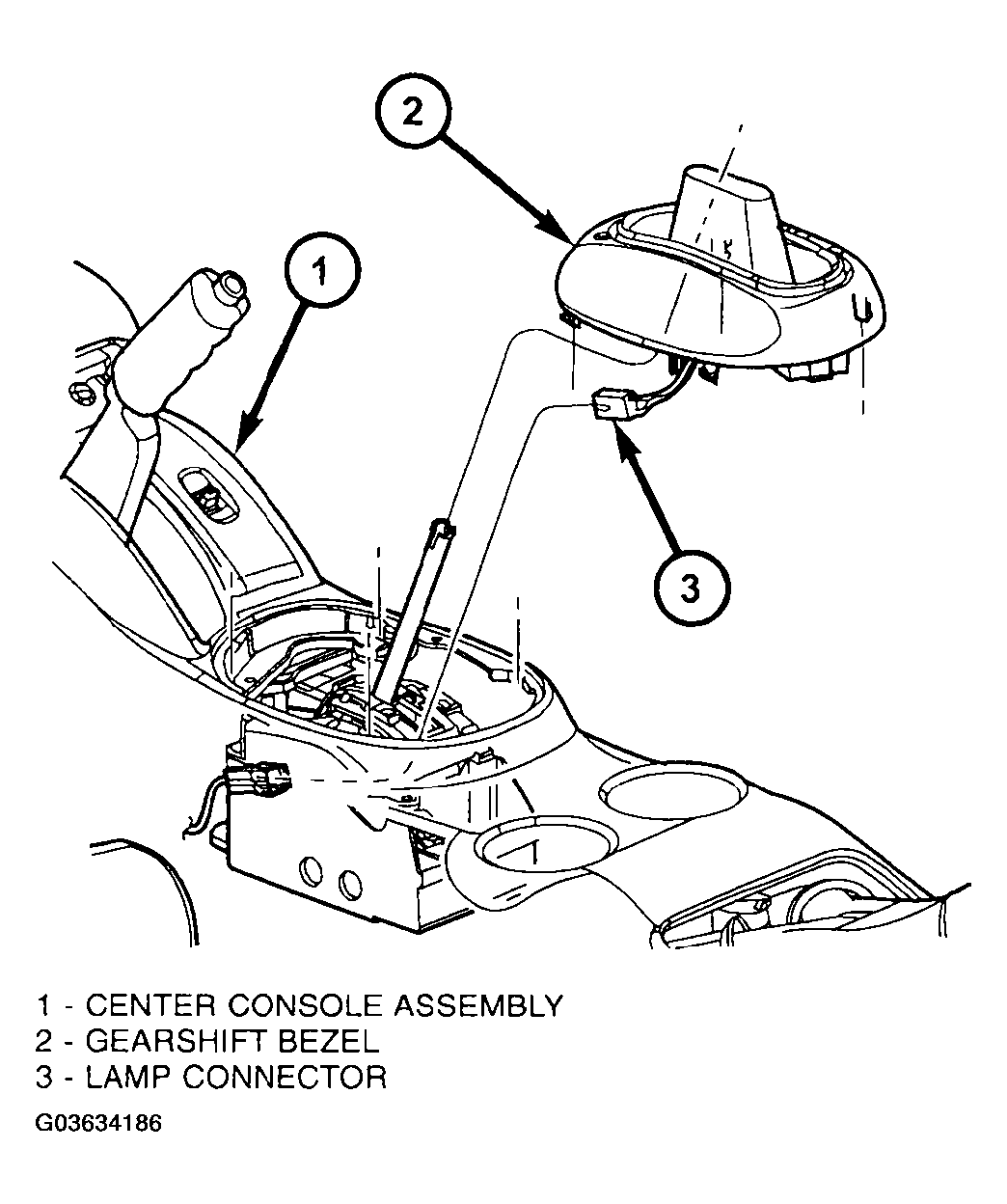

- Connect range indicator lamp and install gearshift bezel (Figure).

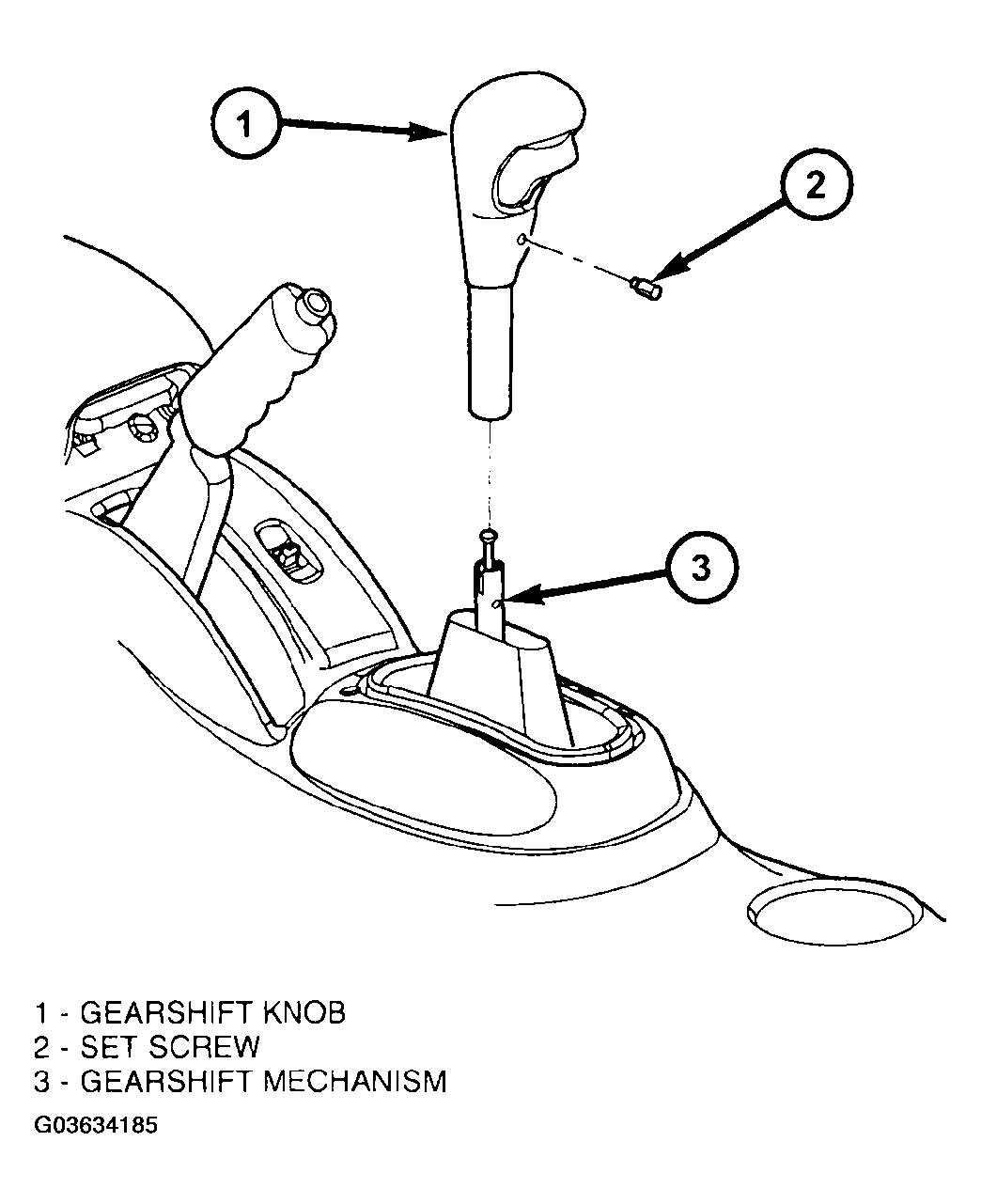

- Install the gearshift knob and tighten set screw (Figure) to 2 N.m (20 in.lbs.).
- Connect the battery negative cable.
