Installation - 4 Cylinder

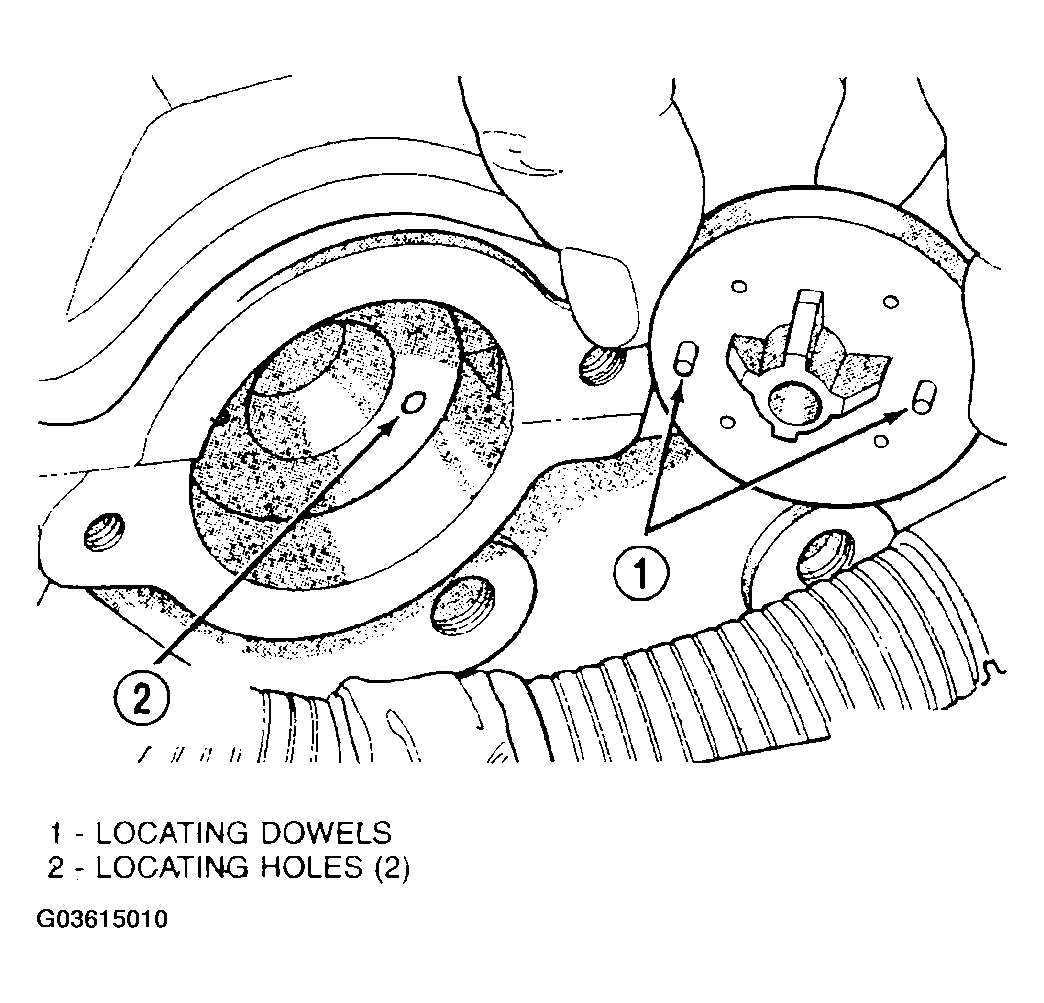

The target magnet has locating dowels that fit into machined locating holes in the end of the camshaft (Fig 1).
- Install target magnet in end of camshaft. Tighten mounting screw to 3 N.m (30 in. lbs.) torque. Over torqueing could cause cracks in magnet. If magnet cracks replace it.
- Install camshaft position sensor. Tighten sensor mounting screws to 12.9 N.m (115 in. lbs.) torque.
- Carefully attach electrical connector to camshaft position sensor. Installation at an angle may damage the sensor pins.
- Connect the PCV Valve hose.
- Connect the negative battery cable.
