Door System - Front - Except Coupe: WATERSHIELD: Installation

Insure that the adhesive bead is not broken, so the complete perimeter of the door seal will be maintained. Replace any loose/damaged adhesive with butyl sealer or similar. If repair is not possible, replace with a new watershield

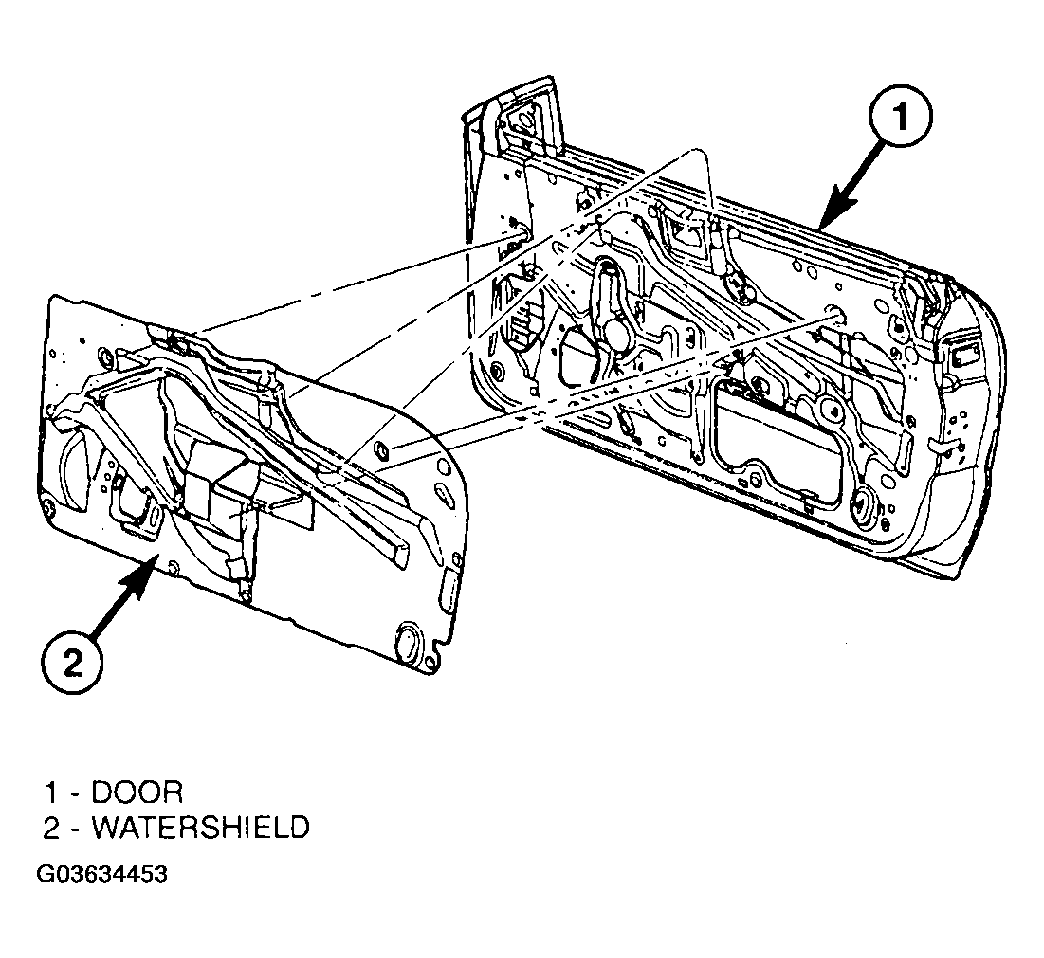

Place the watershield into position using the two depressions that locate into the corresponding holes in the door inner panel. (Figure )
Firmly press the adhesive around the perimeter of the door insure complete sealing. Make sure to properly route wiring and linkages.
Install door speaker, if equipped. (Refer to SPEAKER )
Install door trim panel. (Refer to TRIM PANEL )
