Lock Button Bell Crank: Removal

  1. Remove door trim panel.
  2. Disengage clip holding lock linkage to bell crank.
  3. Rotate bell crank until retaining ears align with slots in door panel.
  4. Remove bell crank from door (Fig 1 ).

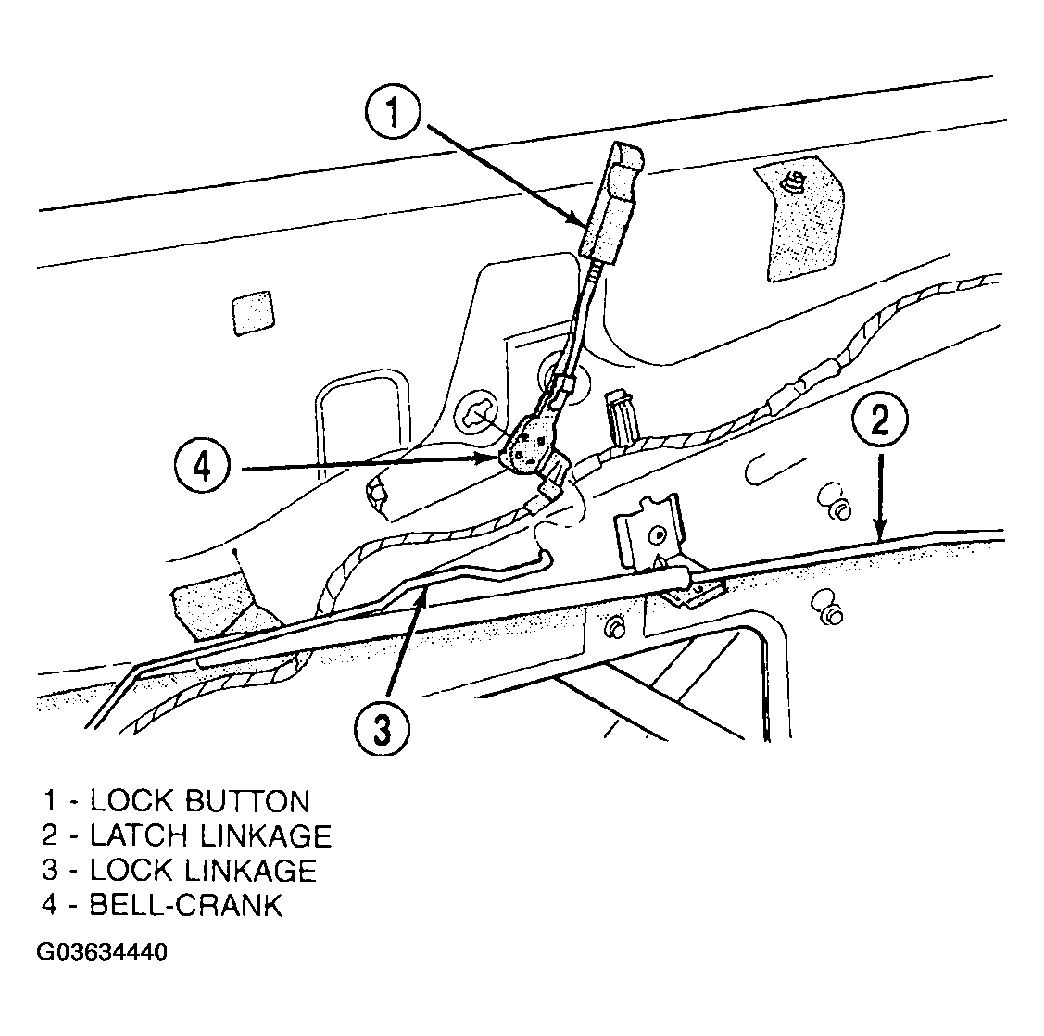

    Fig 1: Identifying Lock Button Bell Crank
    G03634440Courtesy of DAIMLERCHRYSLER CORP.
