Exterior Handle: Installation

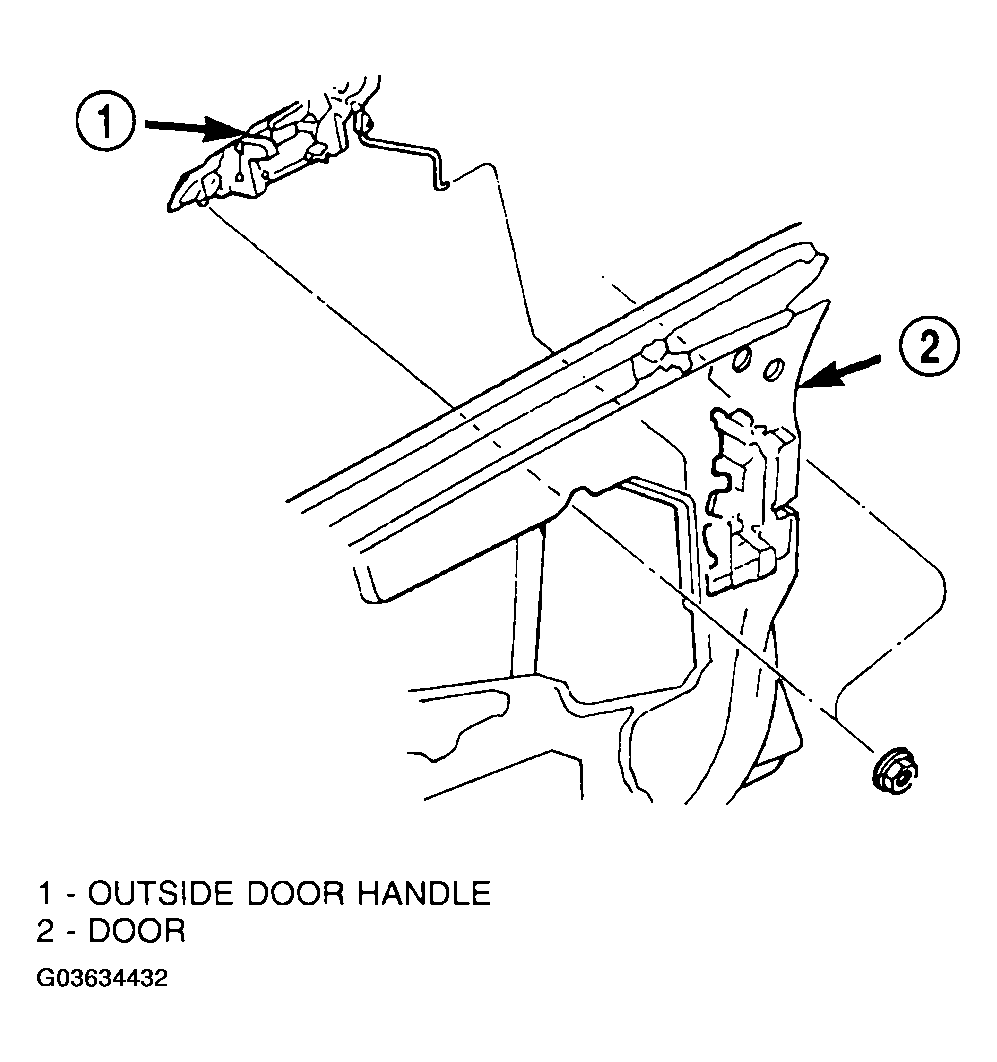

  1. Position outside door handle on door (Figure ).
  2. Install nuts attaching door handle to outer door panel.
  3. Connect latch rod at door latch.
  4. Install water dam (Refer to WATERSHIELD  ).
  5. Install door trim panel(Refer to TRIM PANEL  ).
  6. Verify door handle operation. Adjust door latch as necessary.
