Door Pin Assembly: Removal

  1. Open the door, remove the door pin bolts and remove the door pin. (Fig 1 )

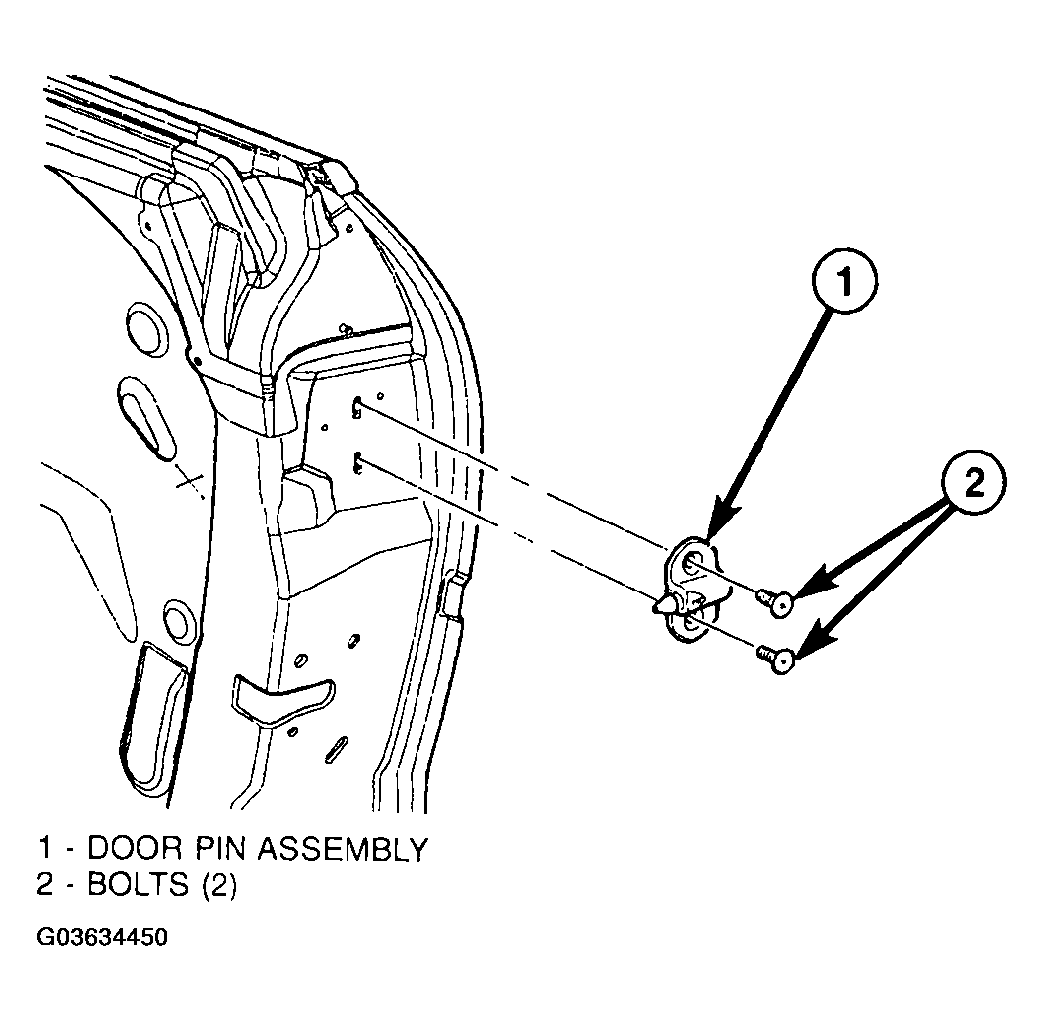

    Fig 1: Identifying Door Pin Assembly
    G03634450Courtesy of DAIMLERCHRYSLER CORP.
  2. Remove the receiver bolts and remove the receiver and shims if equipped. (Fig 2 )

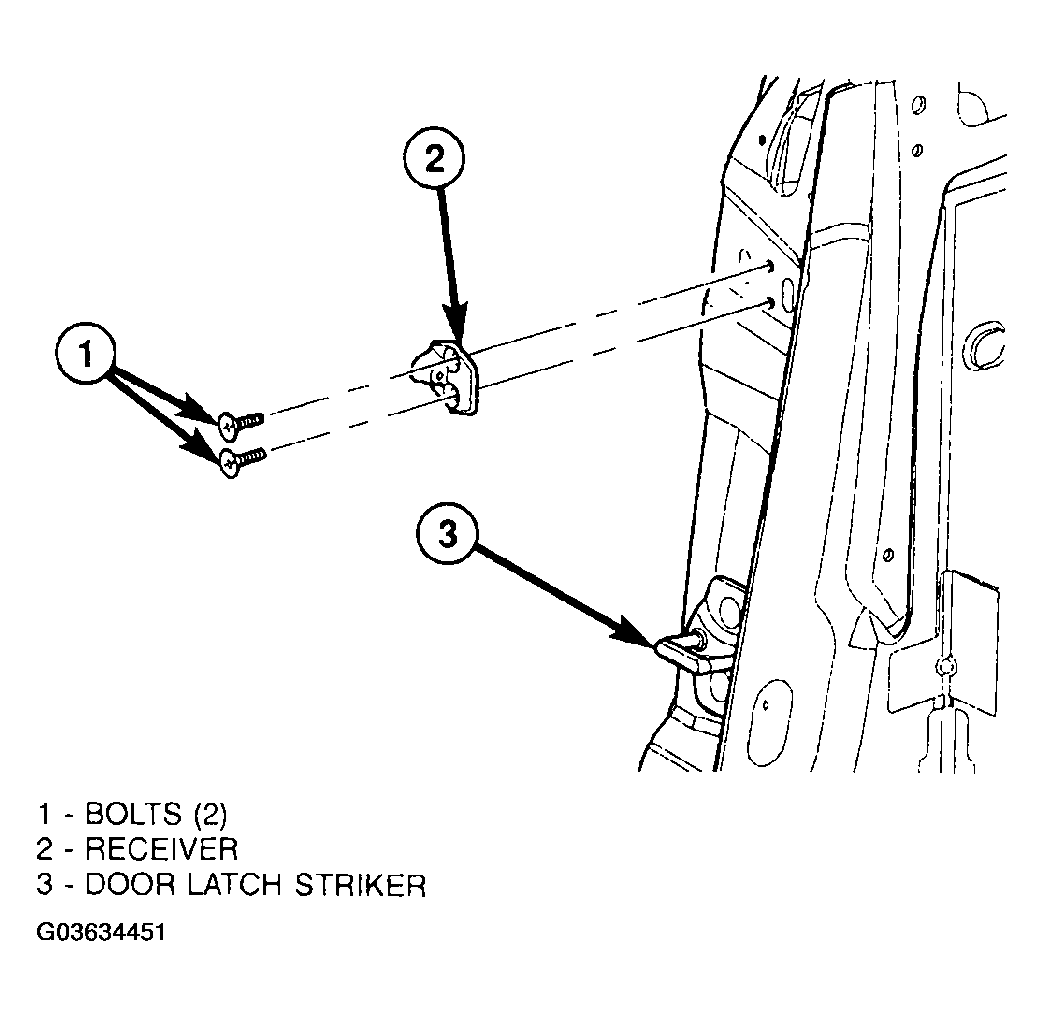

    Fig 2: Identifying Door Pin
    G03634451Courtesy of DAIMLERCHRYSLER CORP.
