Adjustable Quarter Glass - SEBRING Convertible: Removal
- Raise quarter glass to full up position, if possible, to aid in removal.
- Remove quarter trim panel.
- Partially lower convertible top.
- Disconnect wire connector to power window motor.

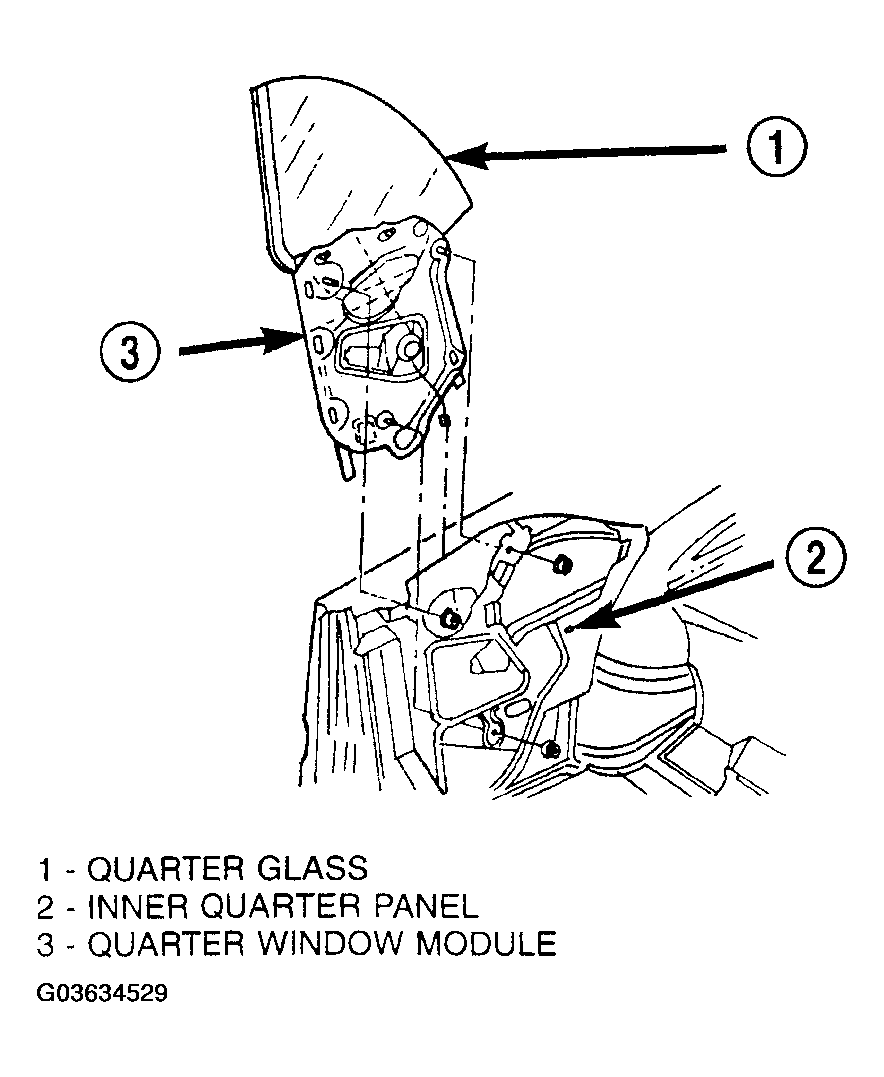

- Remove fasteners holding quarter window module to inner quarter panel (Fig 1
).
Courtesy of DAIMLERCHRYSLER CORP.
- Lift quarter window module upward and out opening at top of quarter panel.

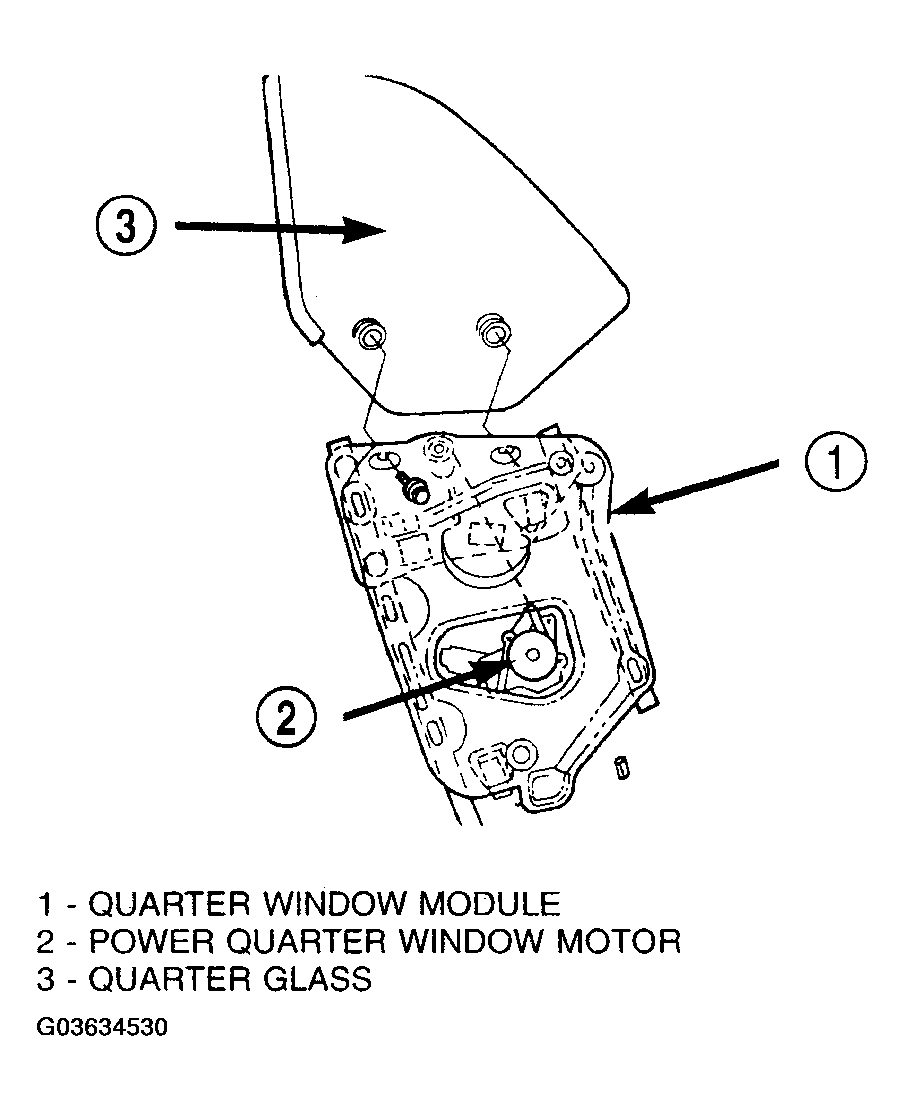

- Separate quarter glass from quarter window module (Fig 2
).
Courtesy of DAIMLERCHRYSLER CORP.
