Removal And Installation: Notes

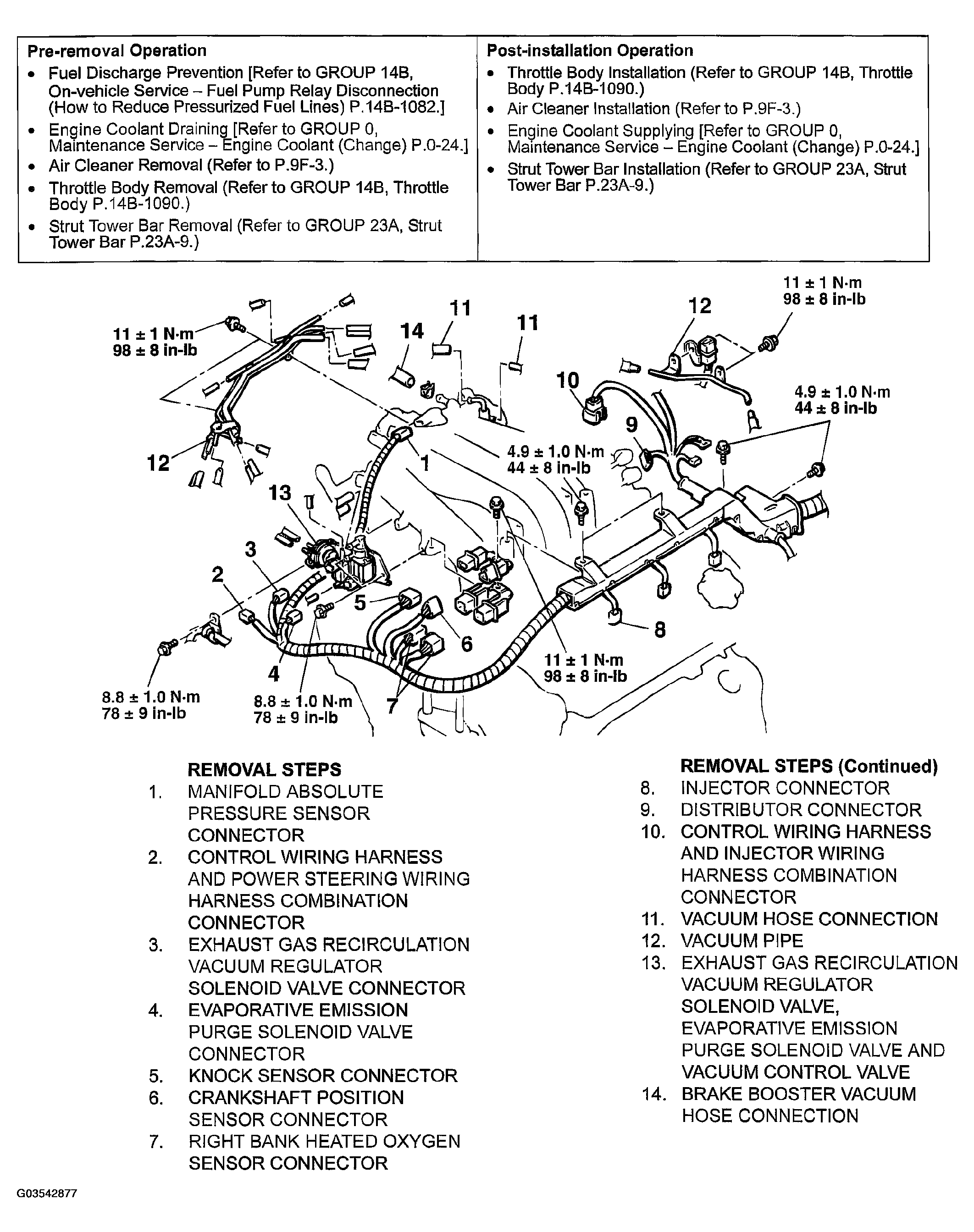

Fig 1: Removing Intake Manifold Plenum (1 Of 2)

G03542877

Courtesy of DAIMLERCHRYSLER CORP.

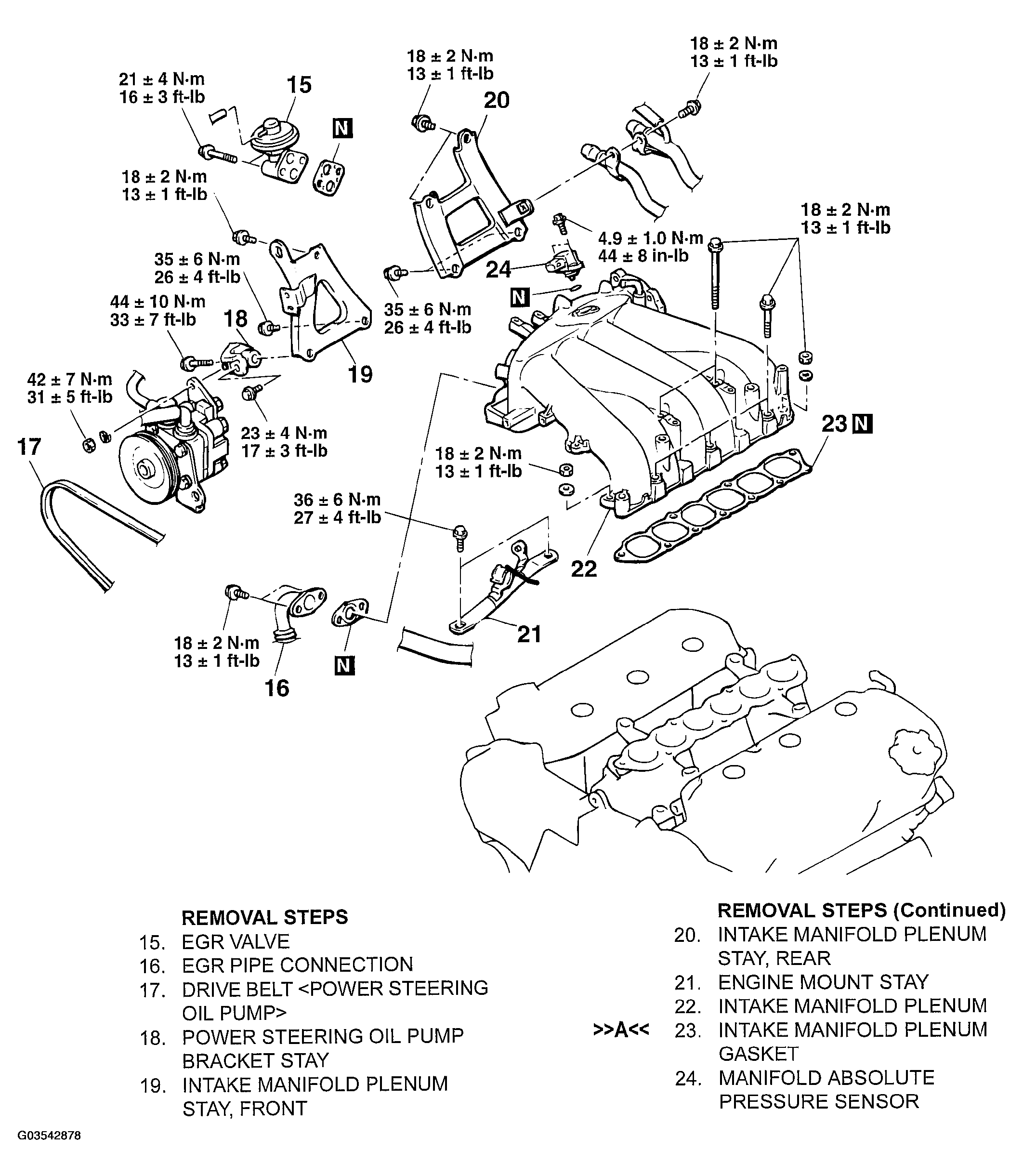

Fig 2: Removing Intake Manifold Plenum (2 Of 2)

G03542878

Courtesy of DAIMLERCHRYSLER CORP.
