Gearshift Cable: Installation

  1. Install gearshift cable to vehicle. Secure grommet.

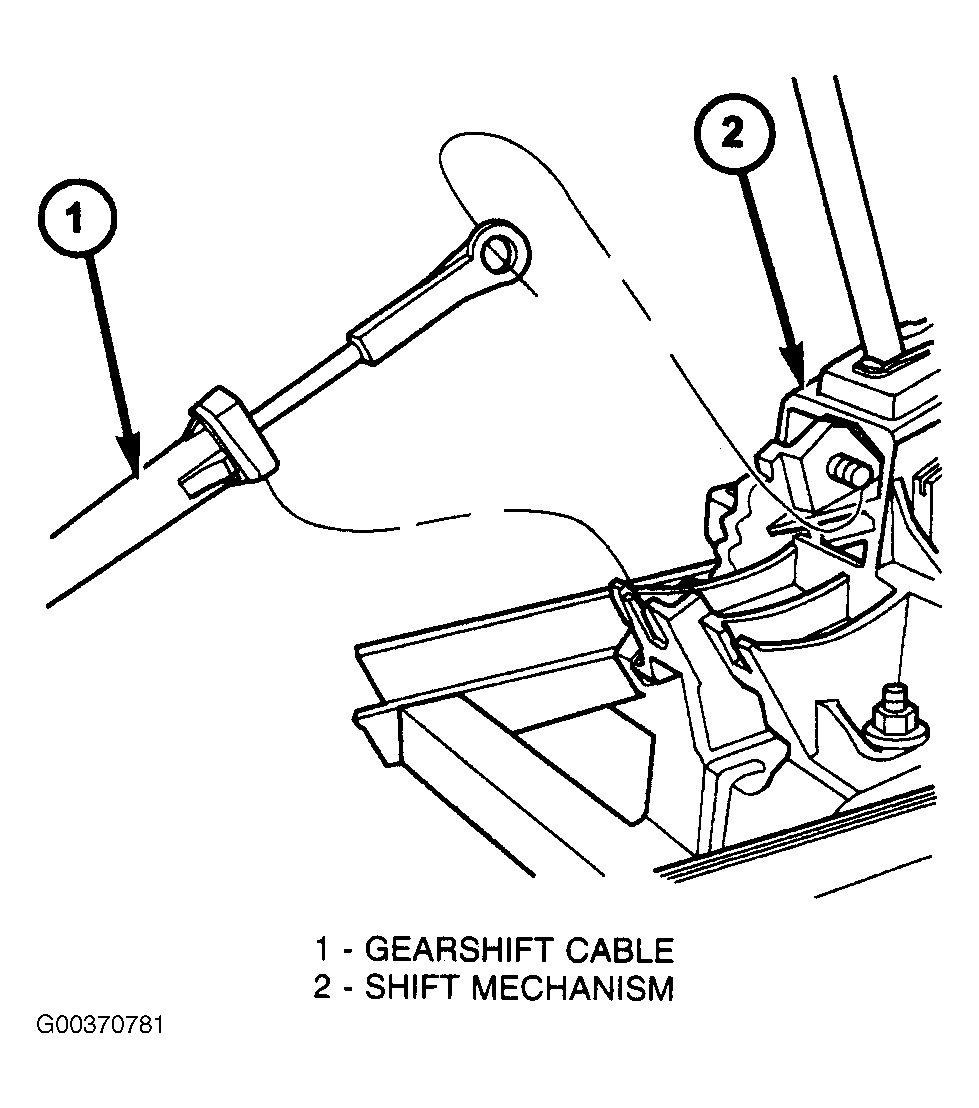

  2. Install gearshift cable to shift mechanism. See Figure .

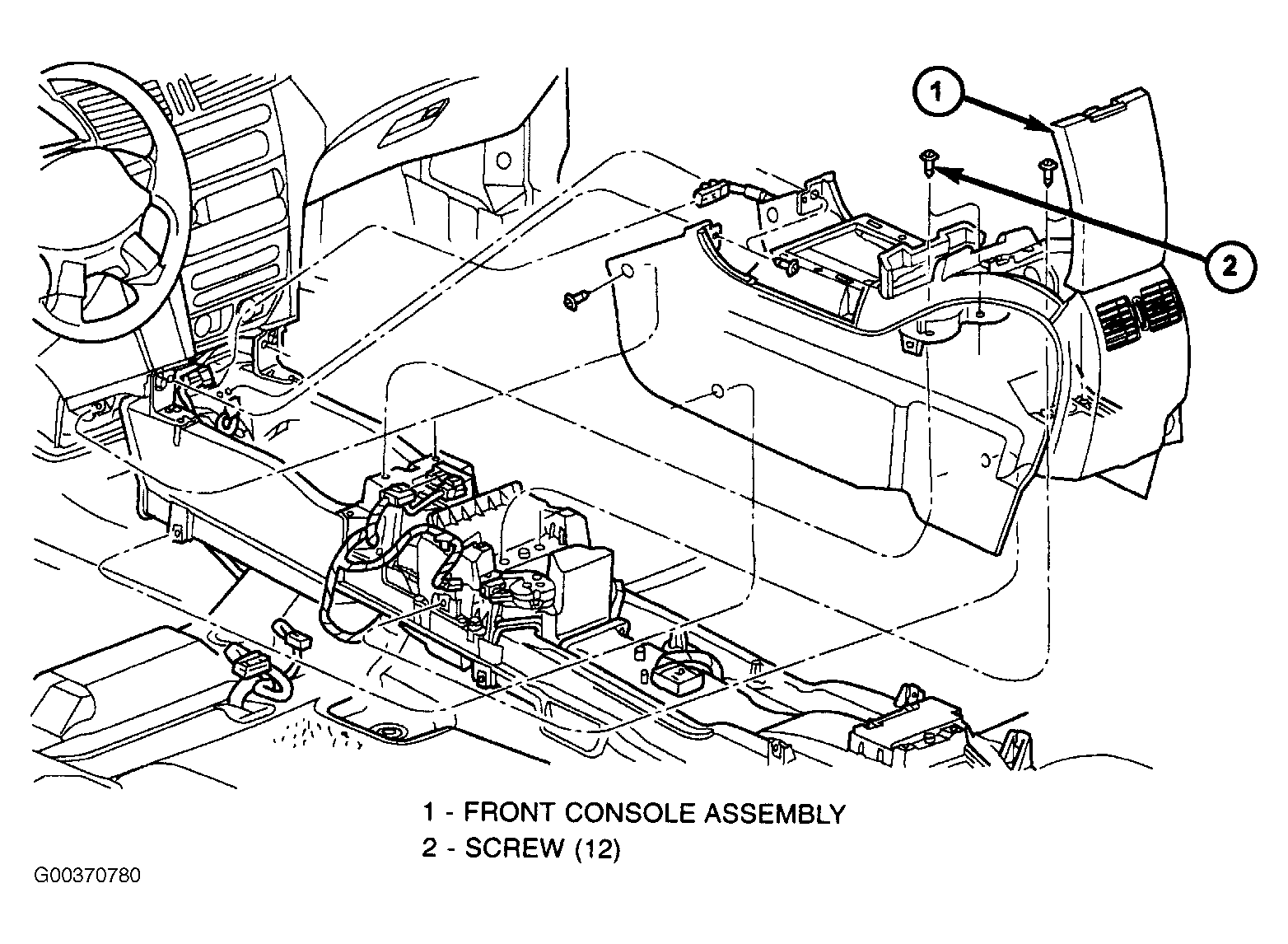

  3. Install center console assembly. See Figure .

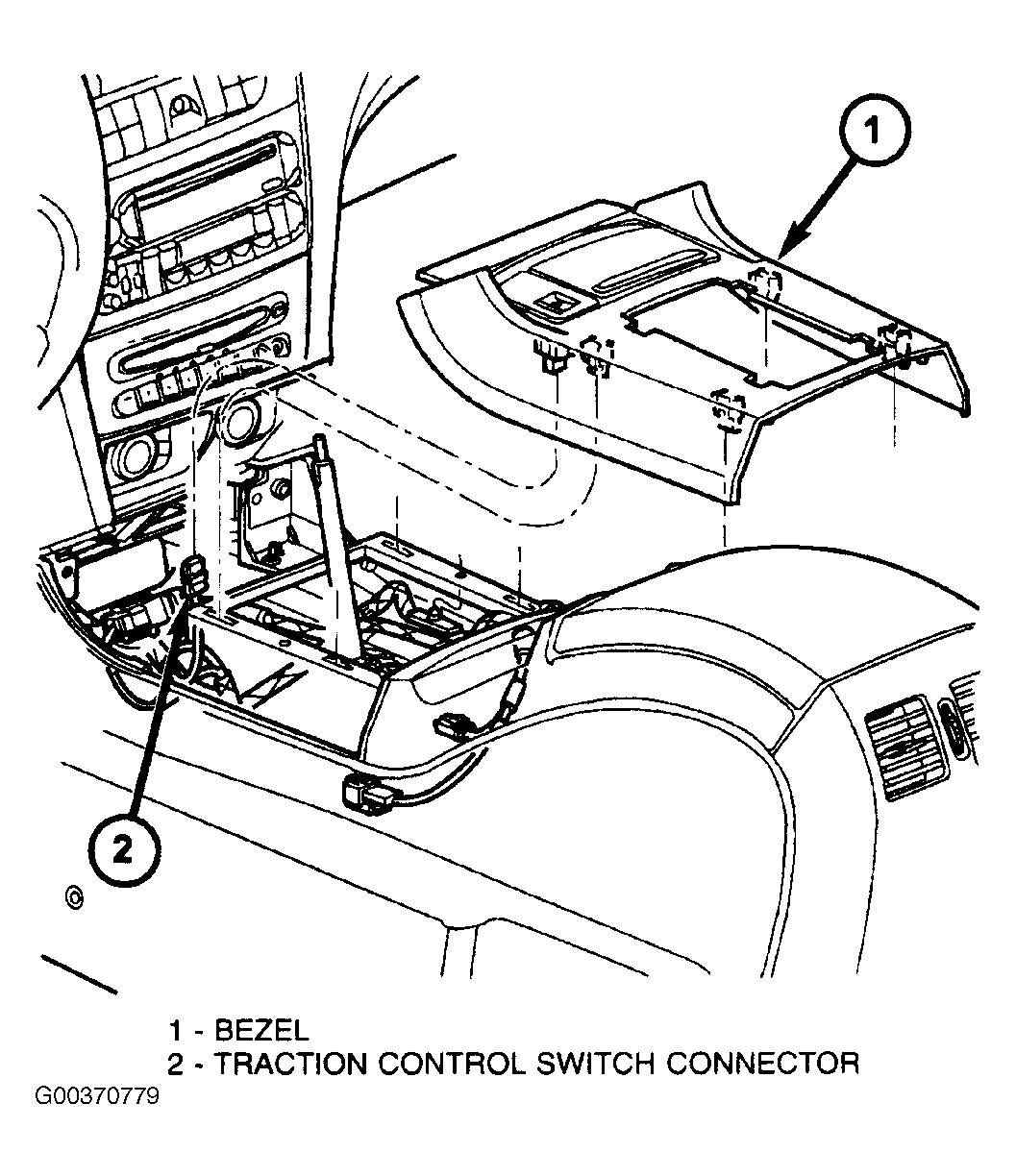

  4. Install PRNDL surround bezel. See Figure .

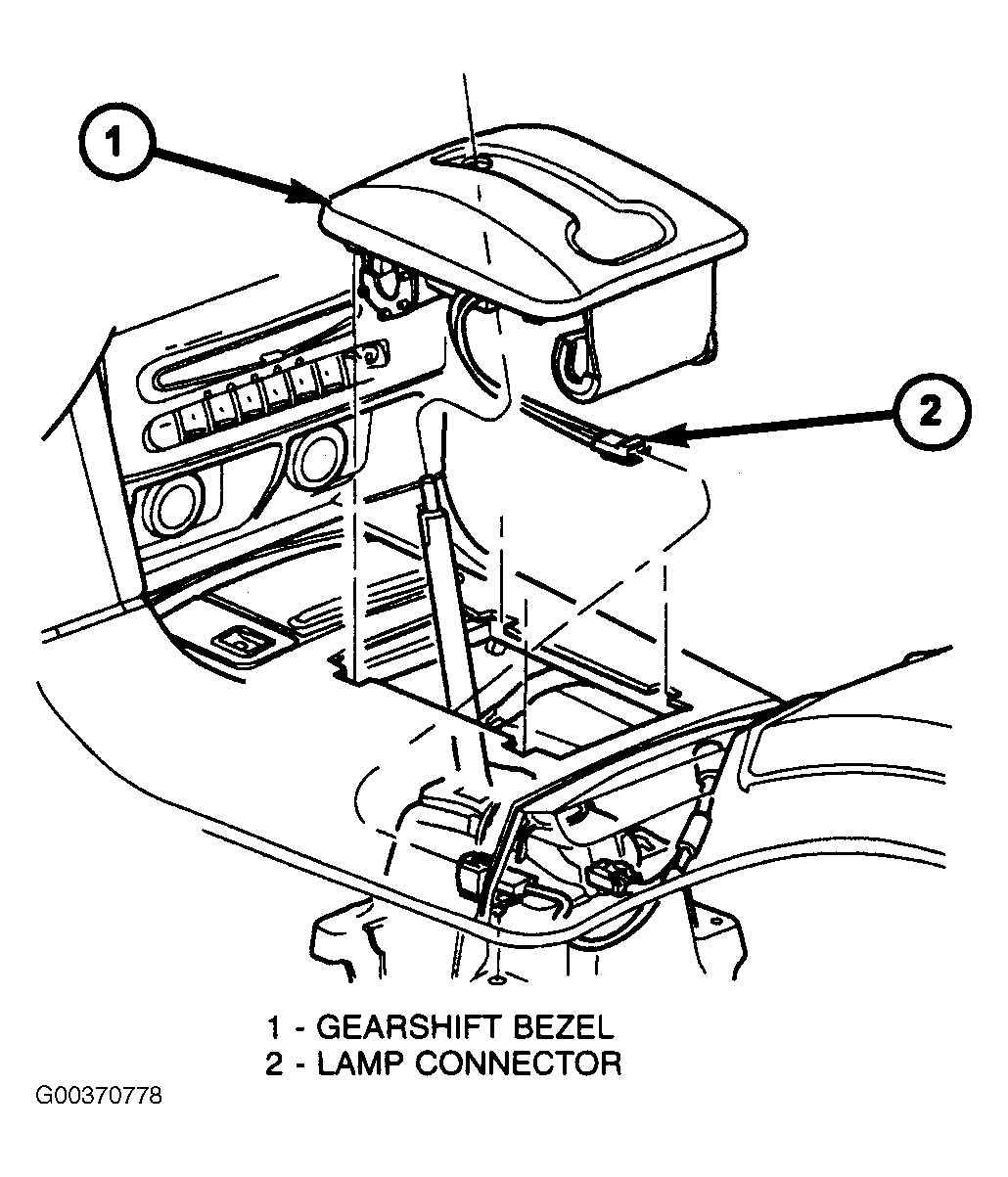

  5. Install gearshift bezel. See Figure .

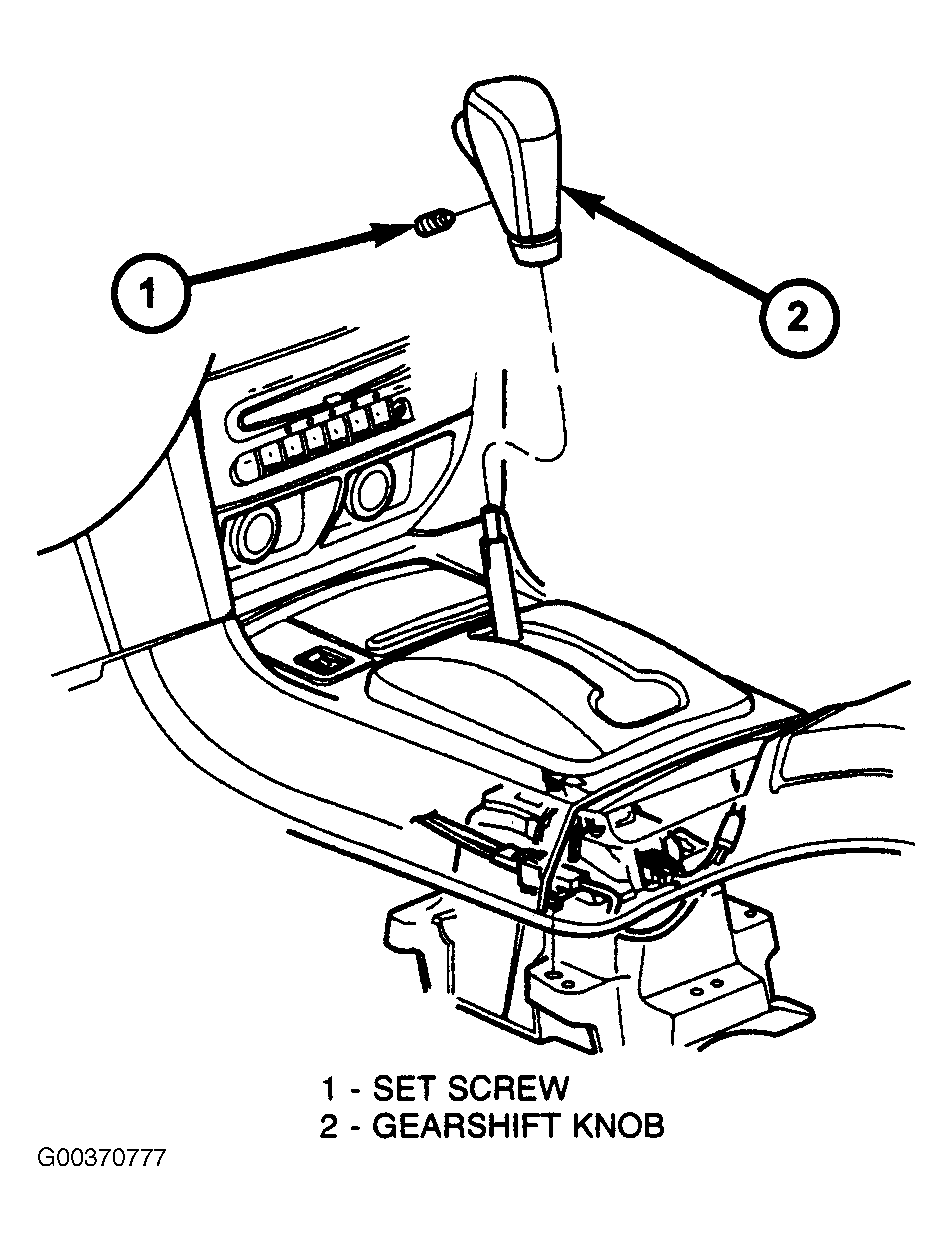

  6. Install gearshift knob. See Figure .

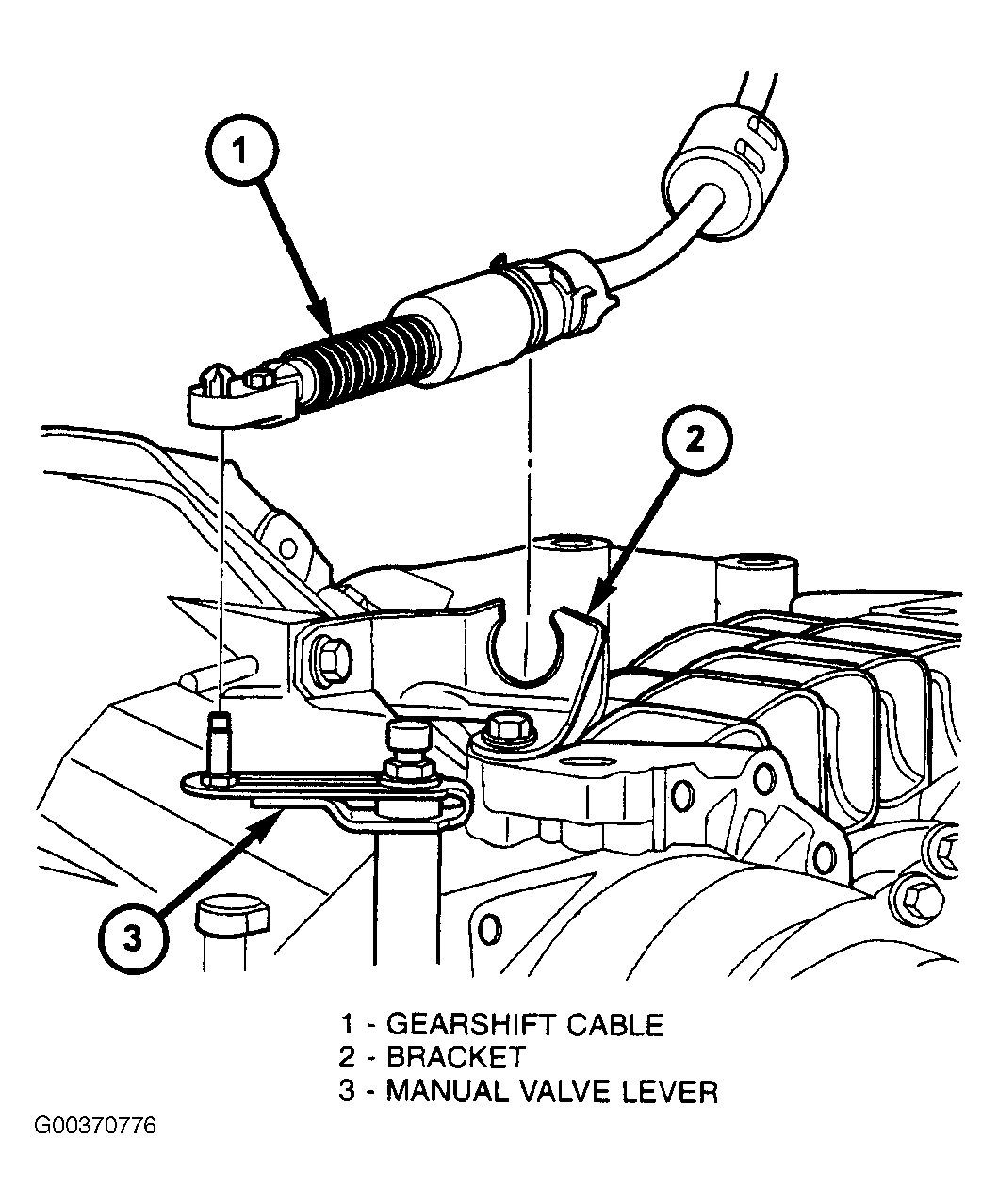

  7. From underhood, install gearshift cable to transaxle bracket. See Figure .
  8. Install cable to transaxle manual valve lever.
  9. Adjust gearshift cable.
  10. Connect battery negative cable.
