Heat Shields: Description

The exhaust system heat shields (Fig 1 ), (Fig 2 ), or (Fig 3 ) are attached to the under body of the vehicle.

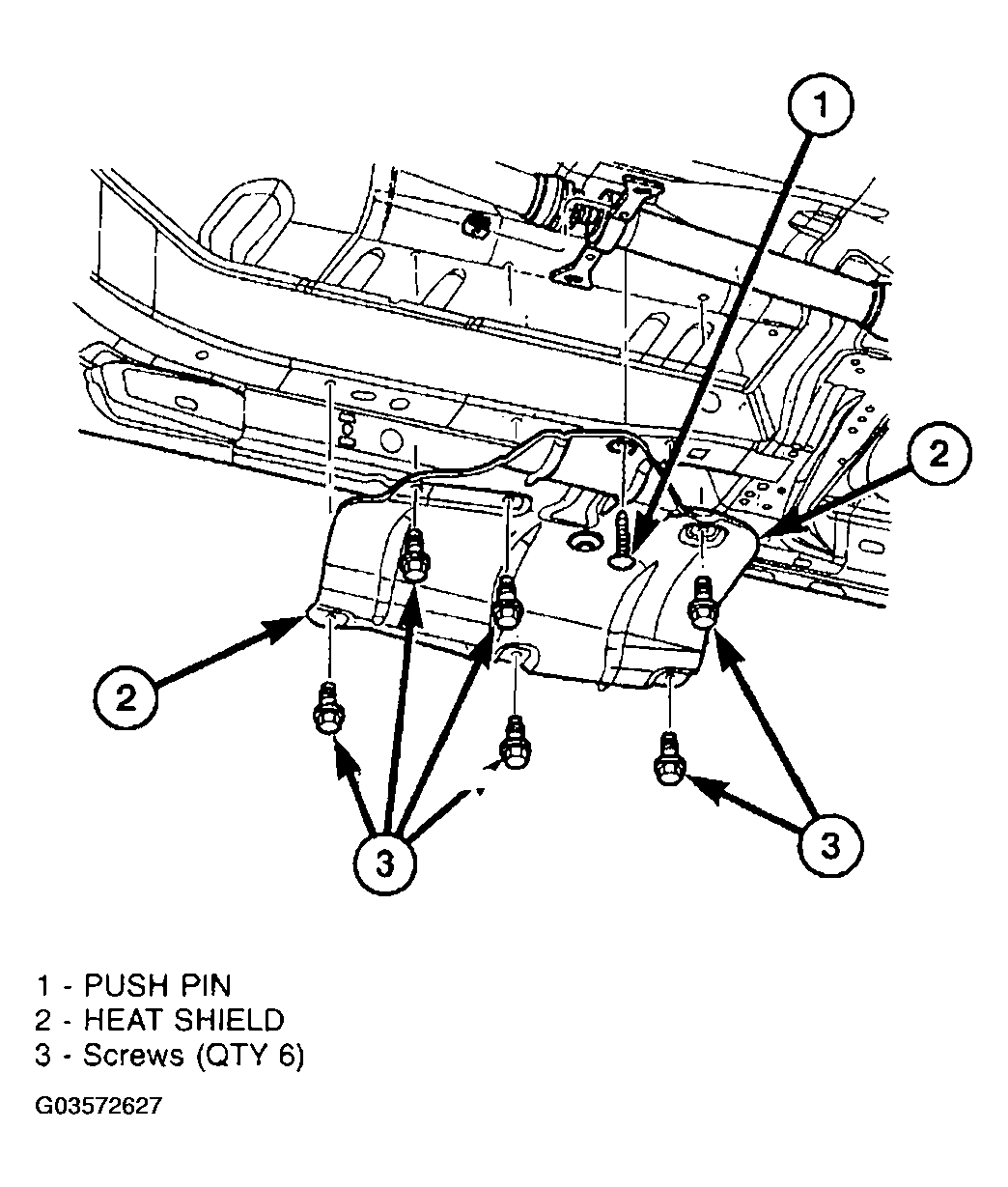

Fig 1: Identifying Forward Catalytic Converter Heat Shield

Courtesy of DAIMLERCHRYSLER CORP.

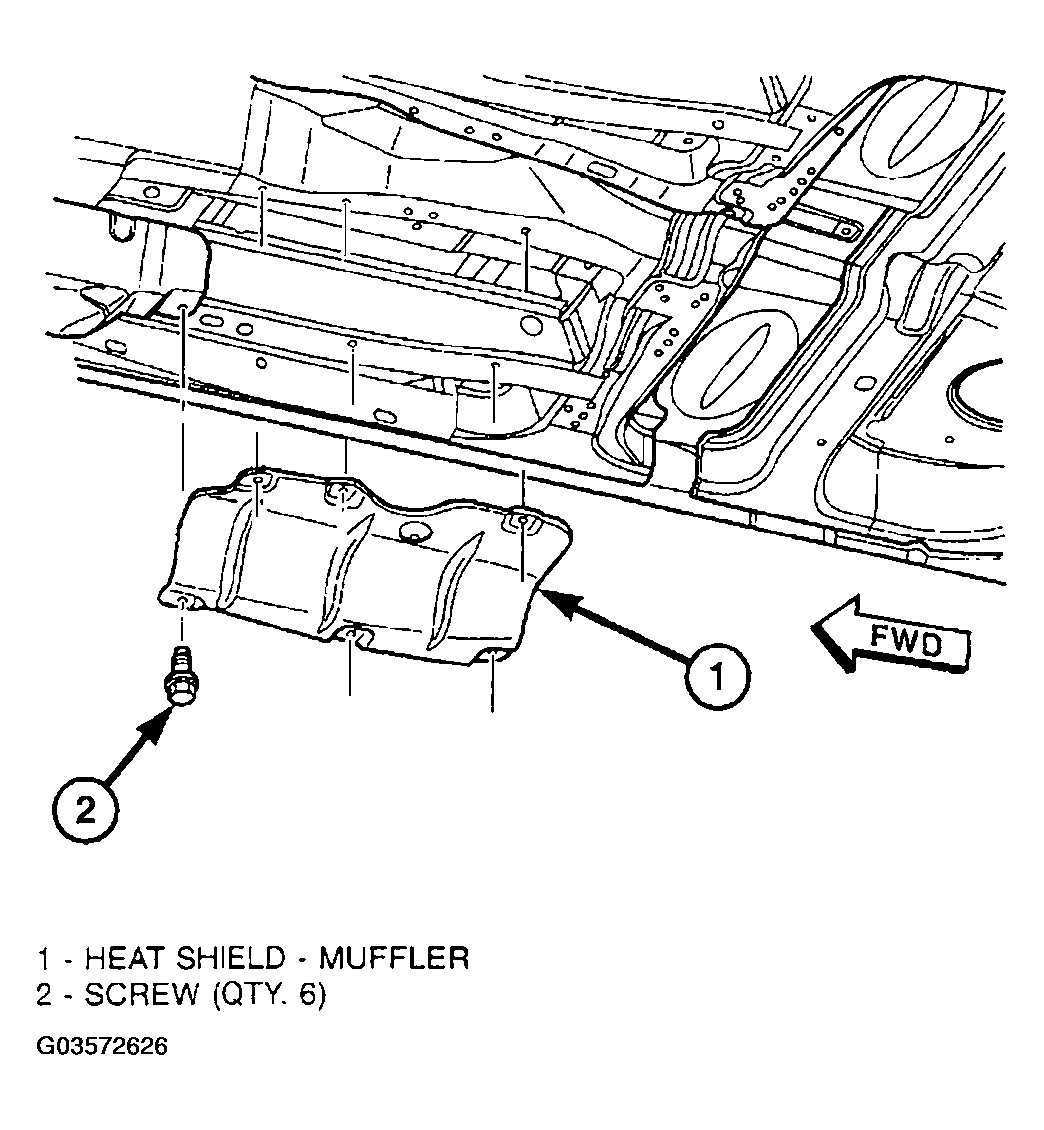

Fig 2: Identifying Muffler Heat Shield - FWD

Courtesy of DAIMLERCHRYSLER CORP.

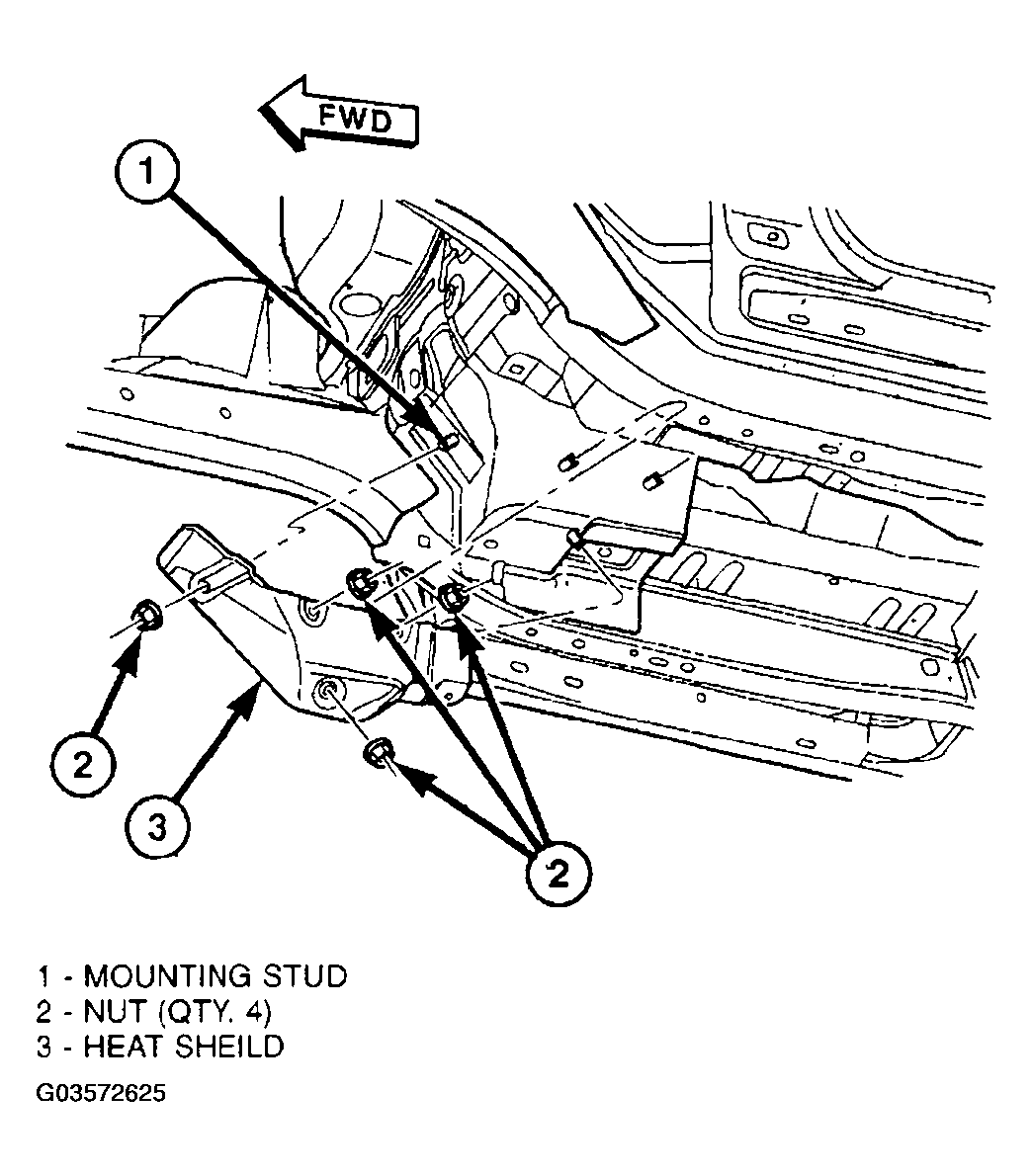

Fig 3: Identifying Muffler Heat Shield - AWD

Courtesy of DAIMLERCHRYSLER CORP.
