Cluster Lens: Installation

  1. Align the tabs over the retaining slots of the cluster housing. Be careful to align the trip odometer button through the cluster lens.
  2. Firmly push down until you seat all the retaining tabs.

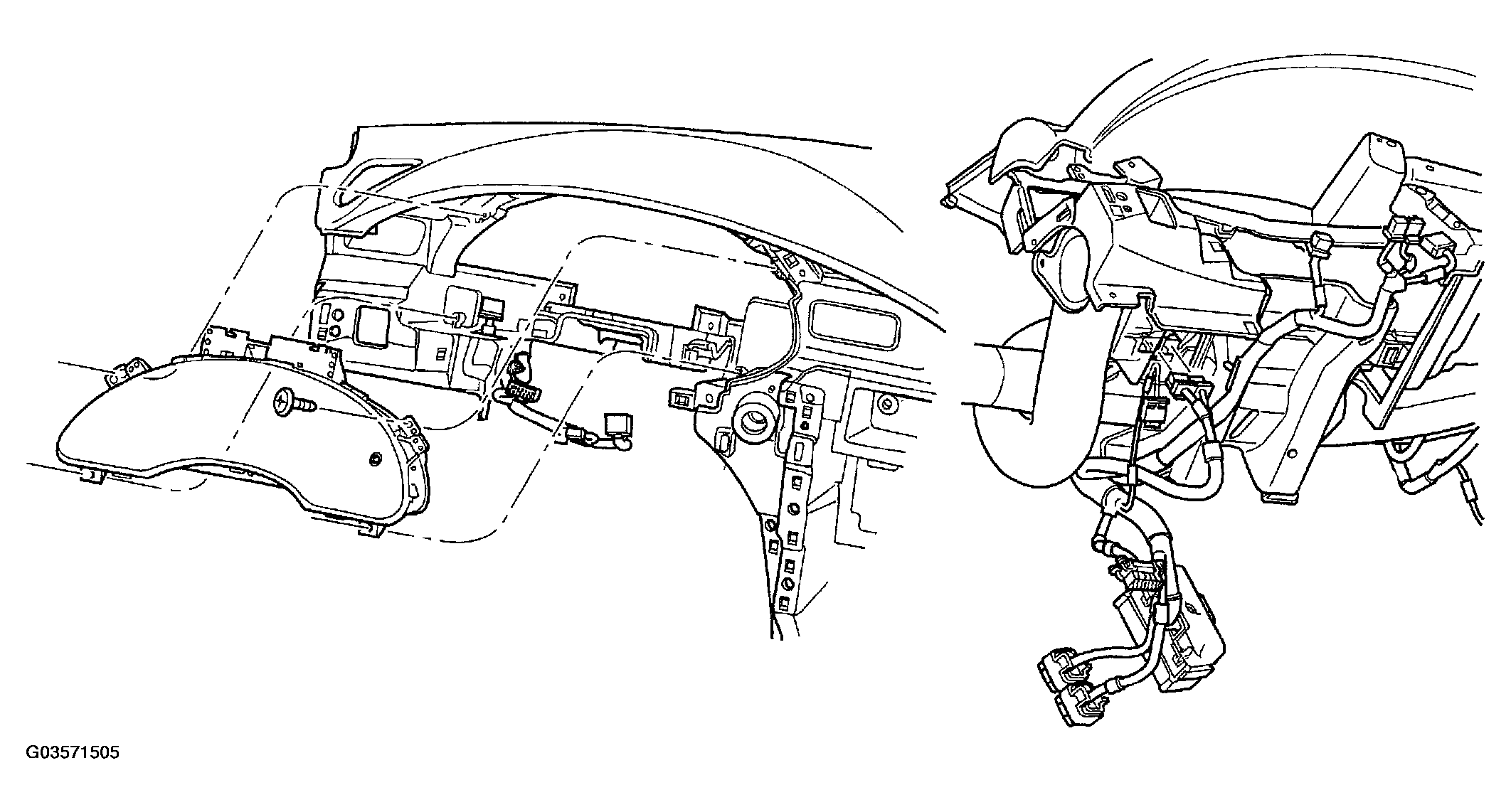

    Fig 1: Removing Instrument Cluster
    G03571505Courtesy of DAIMLERCHRYSLER CORP.

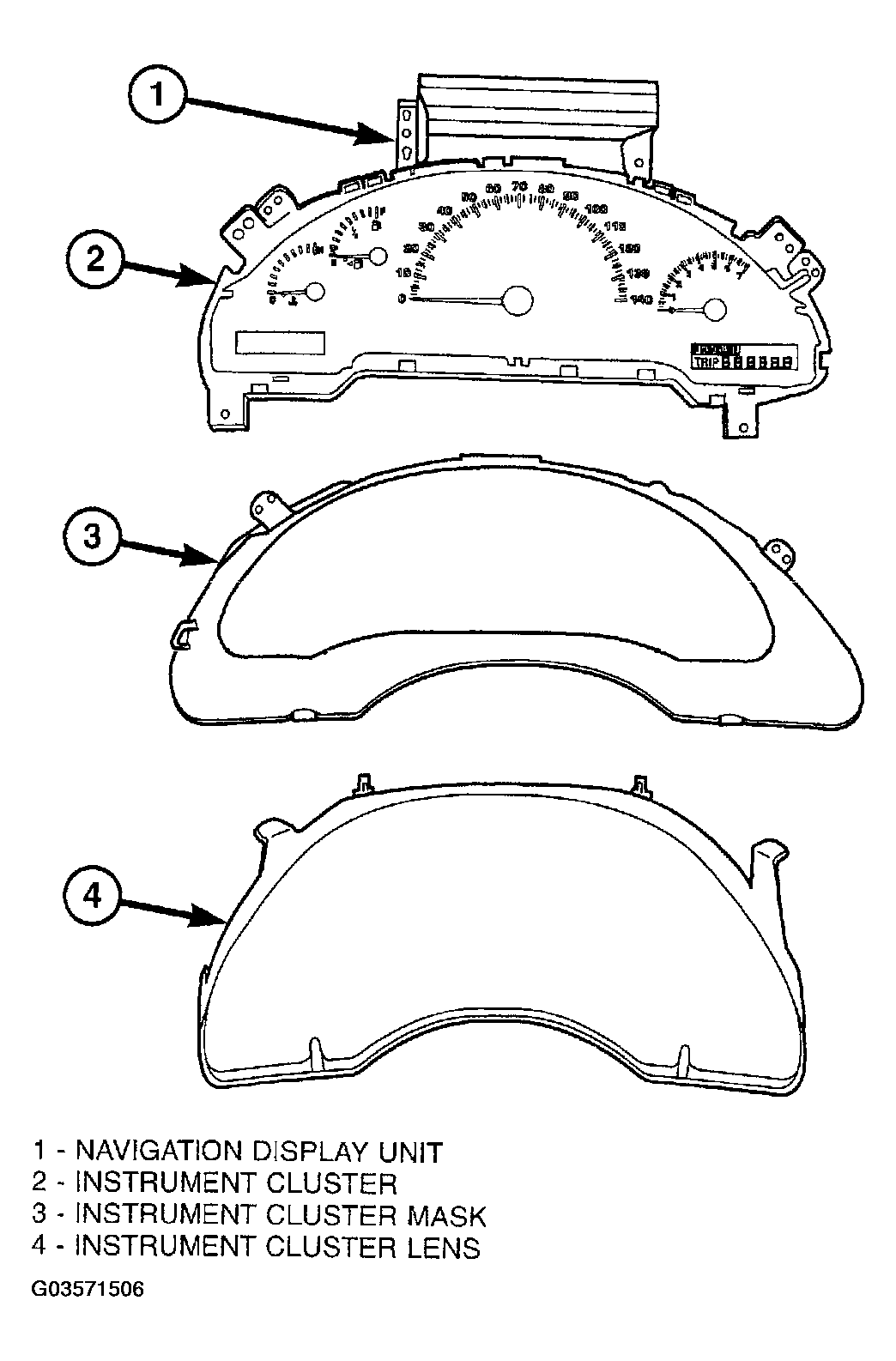

    Fig 2: Identifying Components Of Instrument Cluster
    G03571506Courtesy of DAIMLERCHRYSLER CORP.
  3. Install the two screws retaining the mask/lens to the cluster housing (Fig 2).
  4. Install the instrument cluster (Refer to INSTALLATION ).
  5. Verify vehicle and system operation.
