Door System - Front: WATERSHIELD: Installation

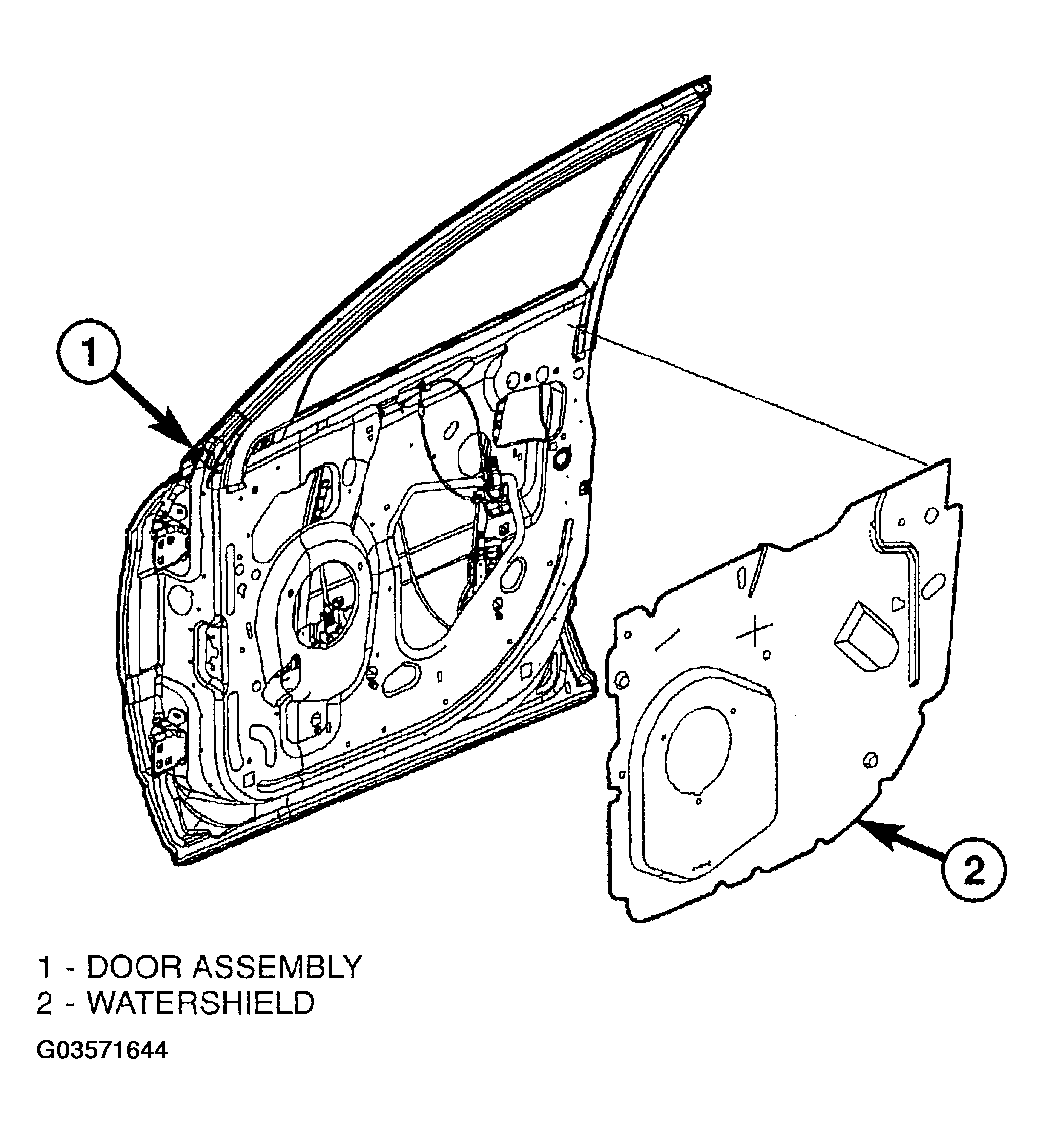

- Place watershield into position (Figure
).NOTE: Care must be taken when routing electrical wiring & cables through access holes to prevent tearing of liner material.
- Pull latch cable, through watershield.
- Pull courtesy light wiring, through watershield.
- Route wiring bundle for power locks, switch bezel, window switch, and memory switch (left door only) through watershield.
- Insure that enough adhesive remains to securely retain the watershield to inner door panel. Replace as necessary.
- Install door trim panel. (Refer to INSTALLATION ).
