Crankshaft Position Sensor Connector End View

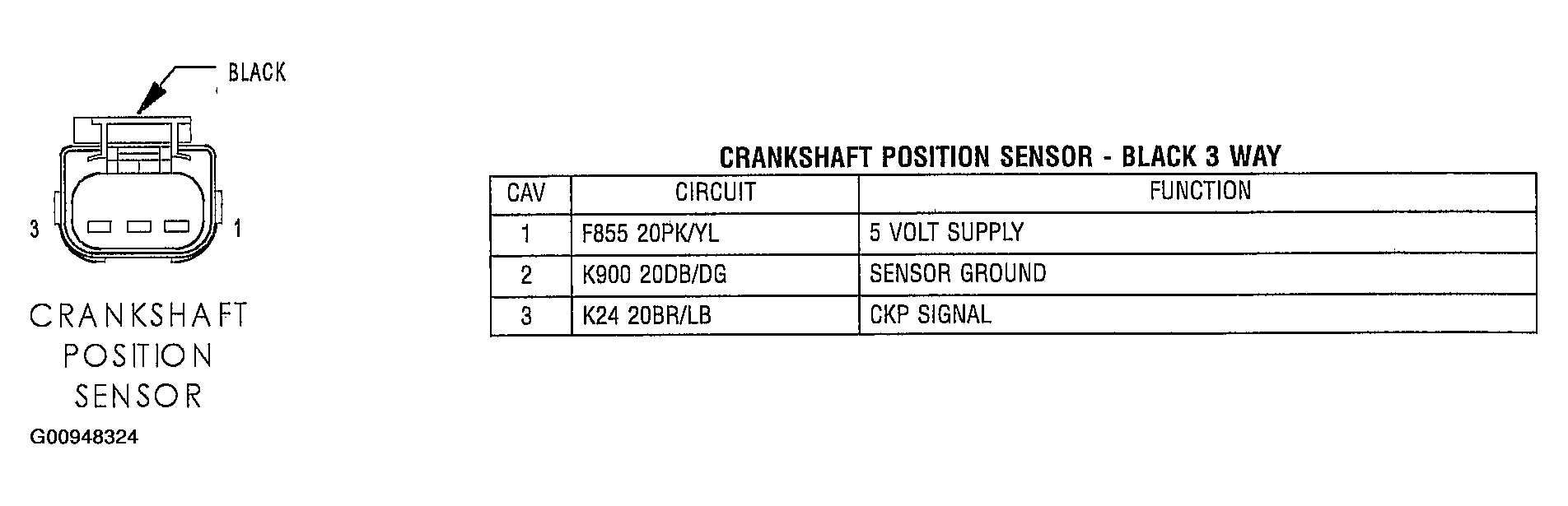

Fig 1: Identifying Crankshaft Position Sensor - Black 3 Way Connector

G00948324

Courtesy of DAIMLERCHRYSLER CORP.
