Integrated Power Module

For integrated power module location, see Fig 1.

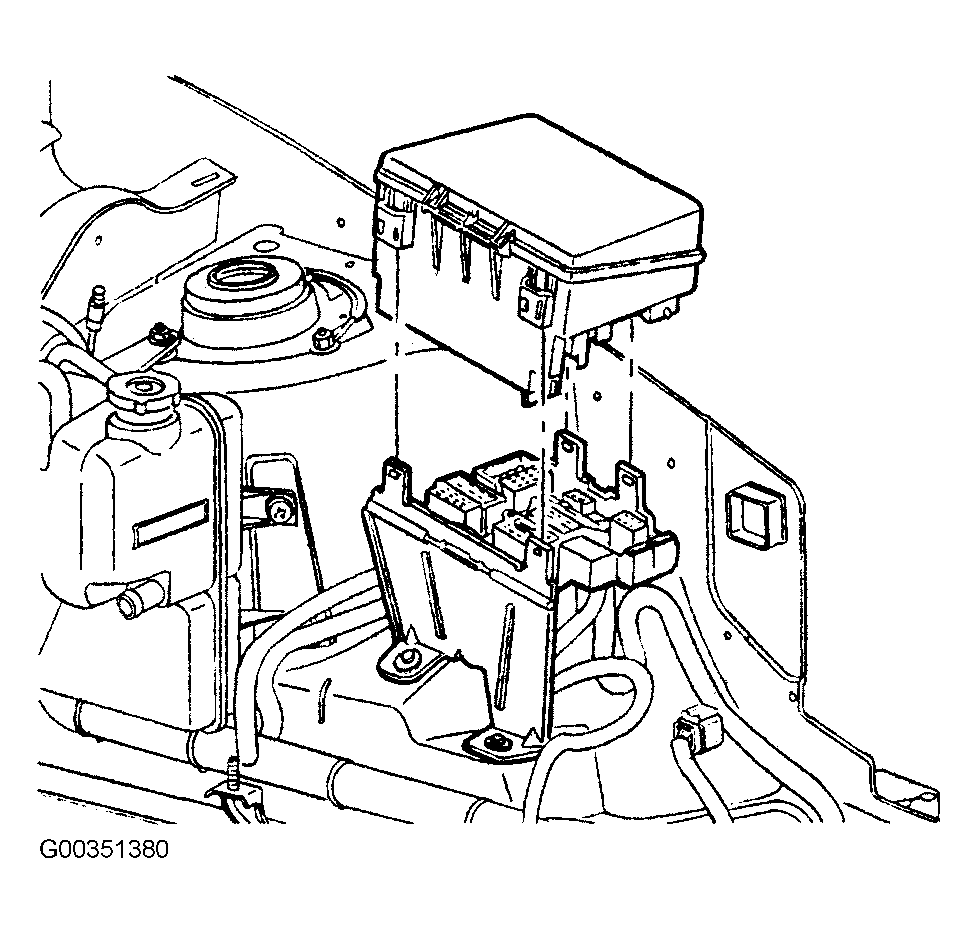

Fig 1: Locating Integrated Power Module

Courtesy of CHRYSLER CORP.

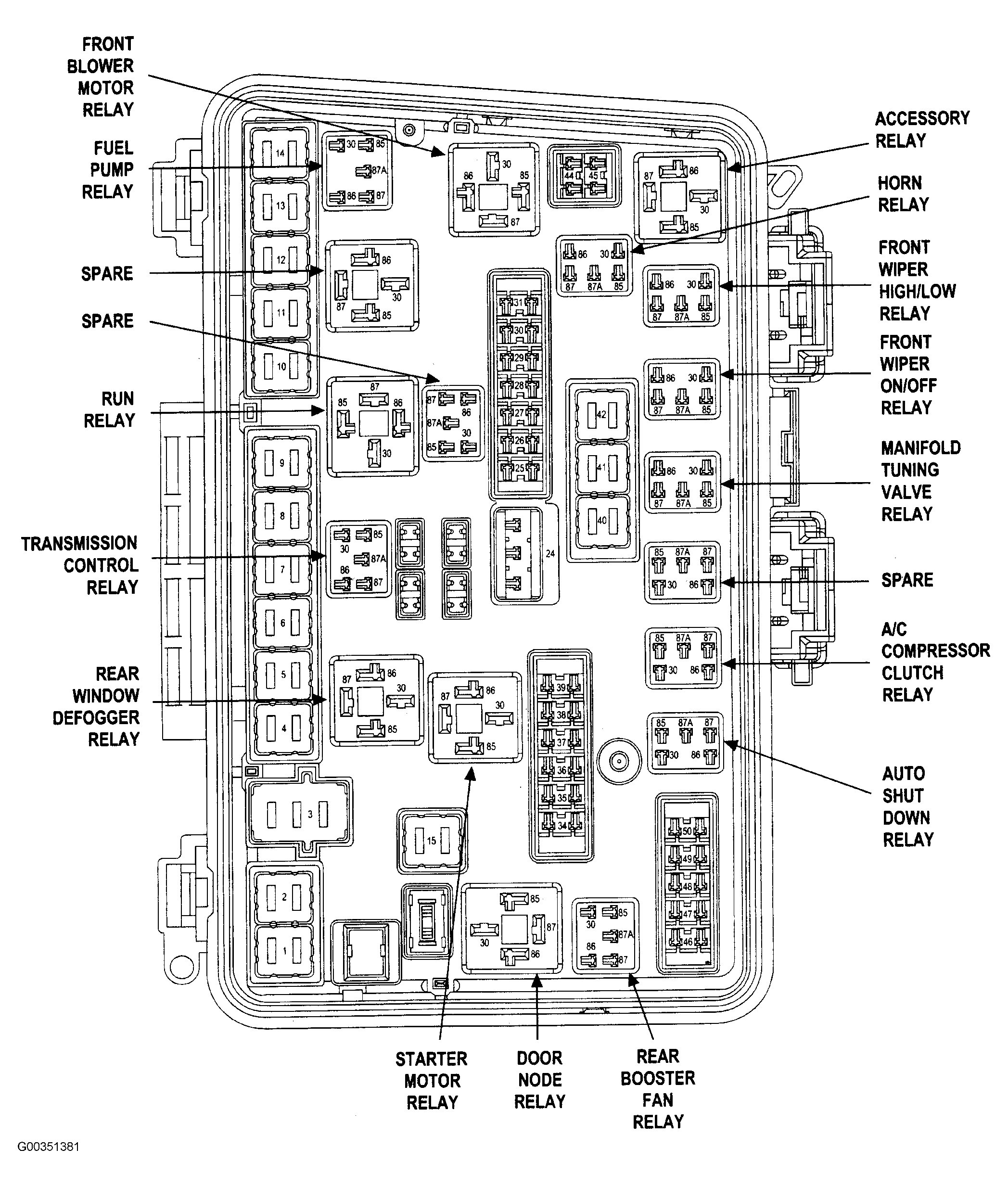

Fig 2: Identifying Integrated Power Module Components

Courtesy of CHRYSLER CORP.

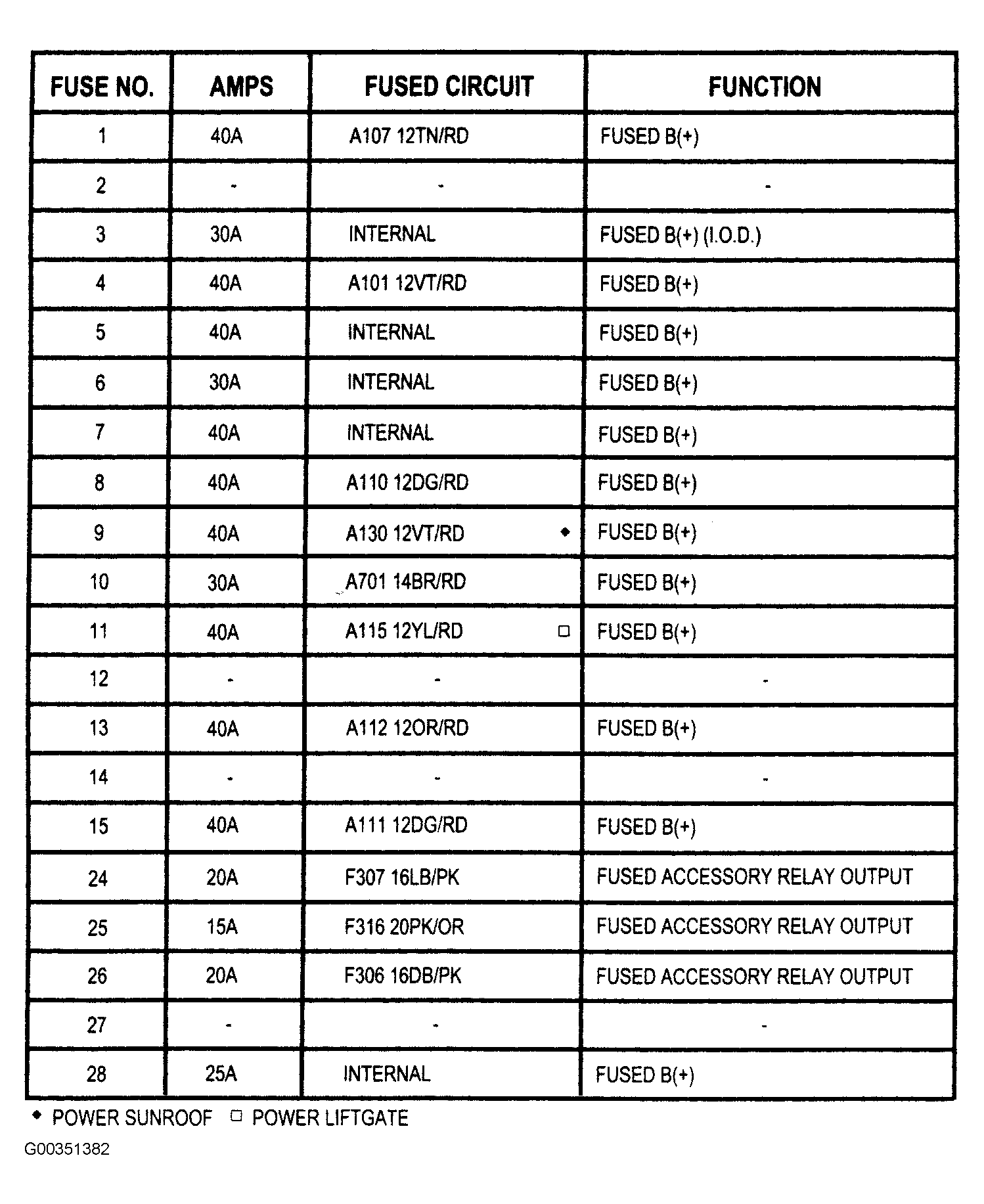

Fig 3: Integrated Power Module Legend (1 Of 2)

Courtesy of CHRYSLER CORP.

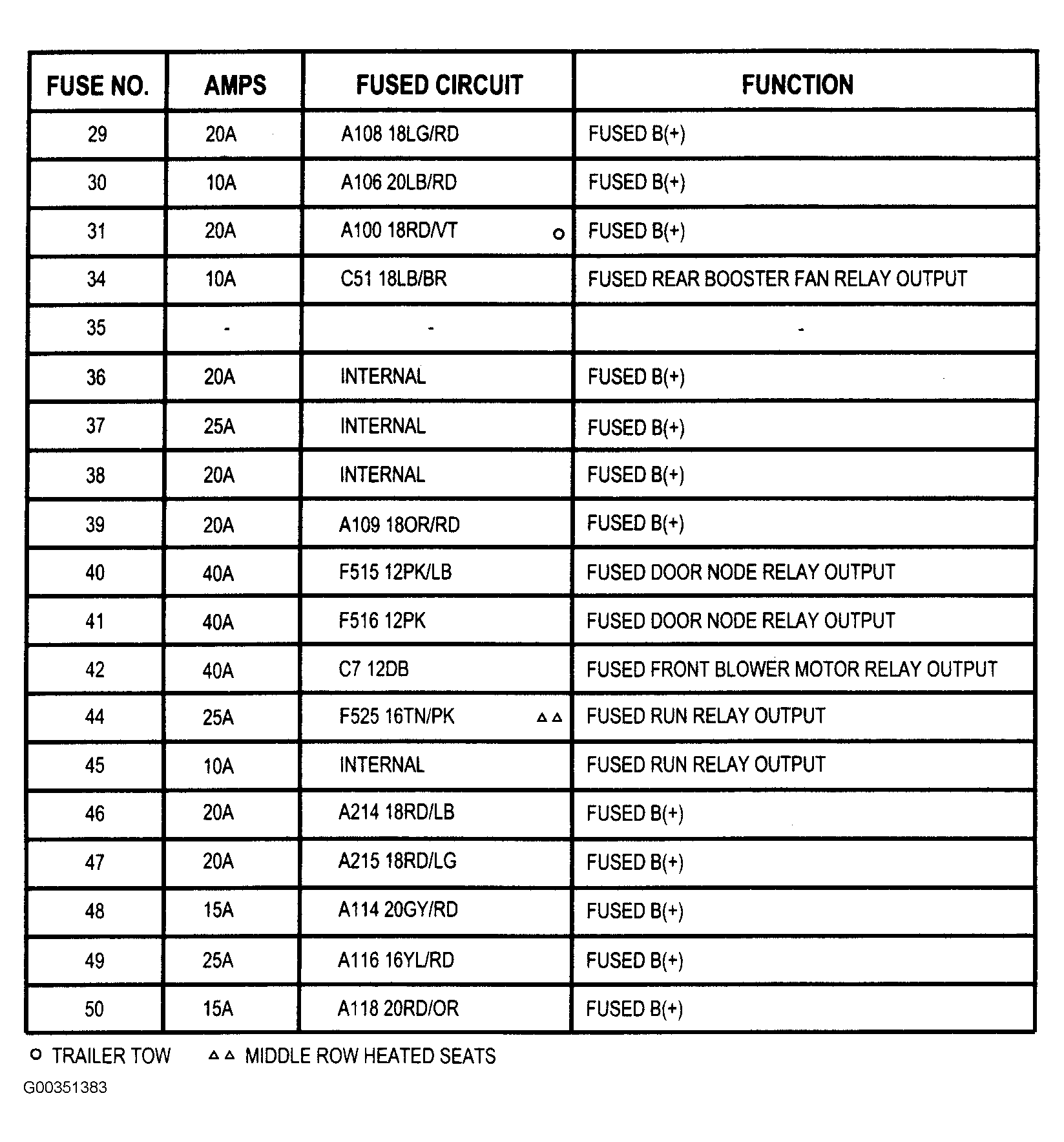

Fig 4: Integrated Power Module Legend (2 Of 2)

Courtesy of CHRYSLER CORP.

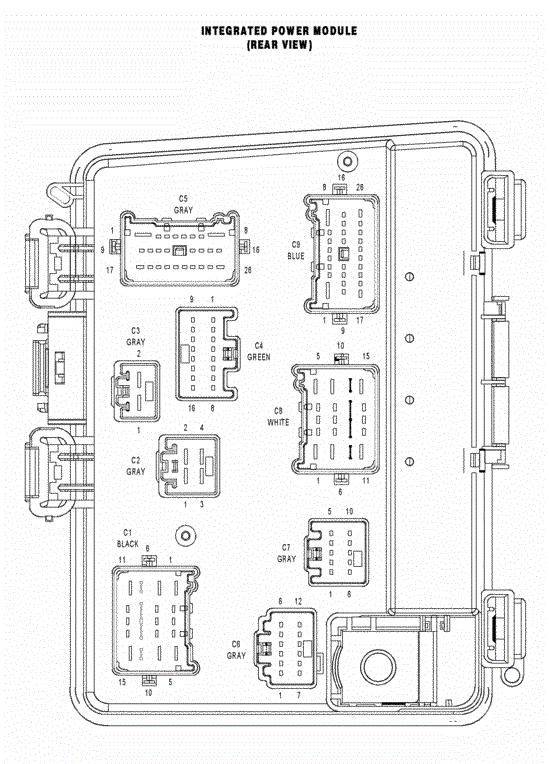

Fig 5: Integrated Power Module Connector Identification

Courtesy of CHRYSLER CORP.
