Solenoid/Pressure Switch ASSY: Installation

NOTE: If solenoid/pressure switch assembly is being replaced, it is necessary to perform the TCM Quick Learn Procedure. (Refer to STANDARD PROCEDURE - QUICK LEARN PROCEDURE )

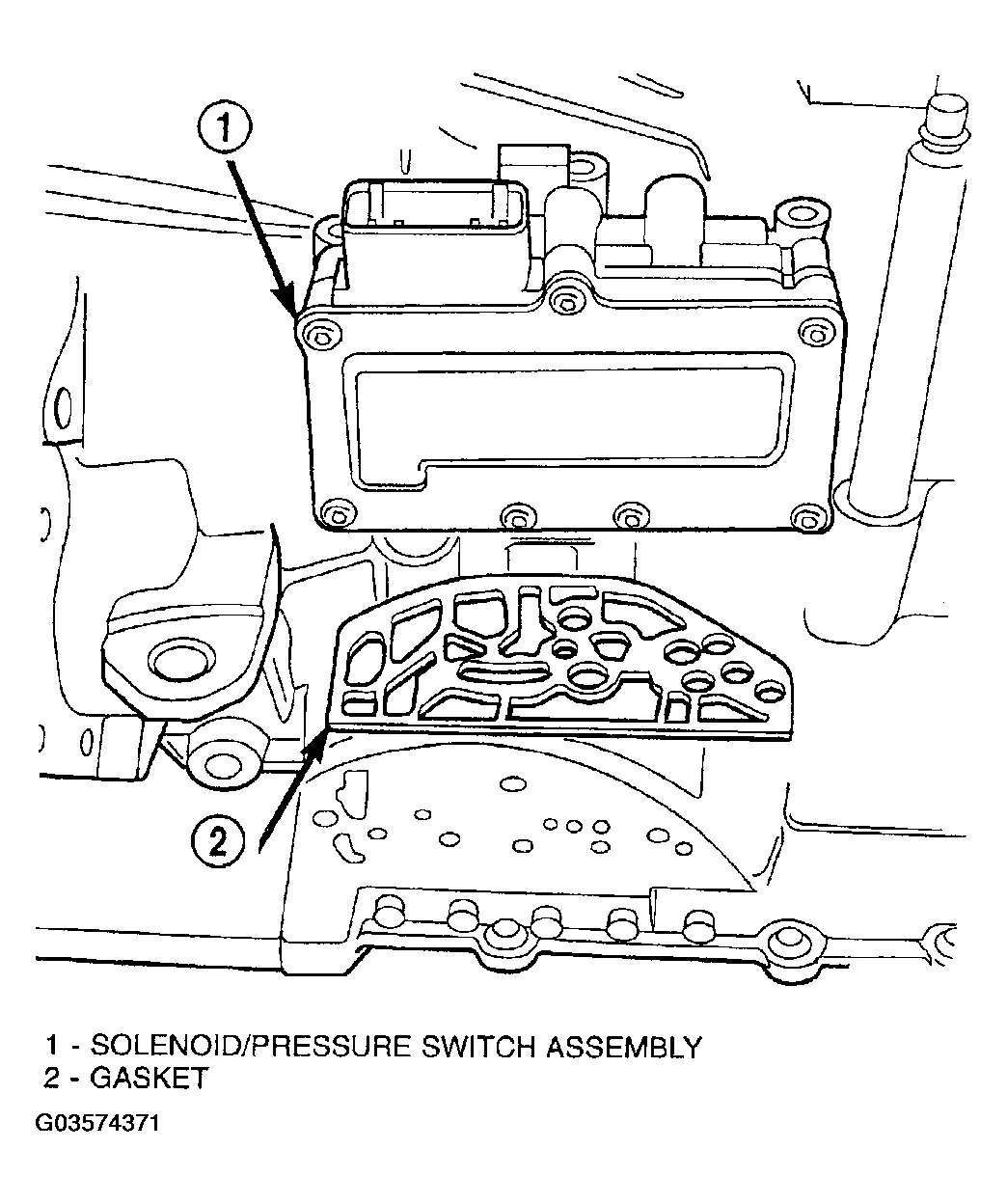

  1. Install solenoid/pressure switch assembly and new gasket to transaxle (Figure).

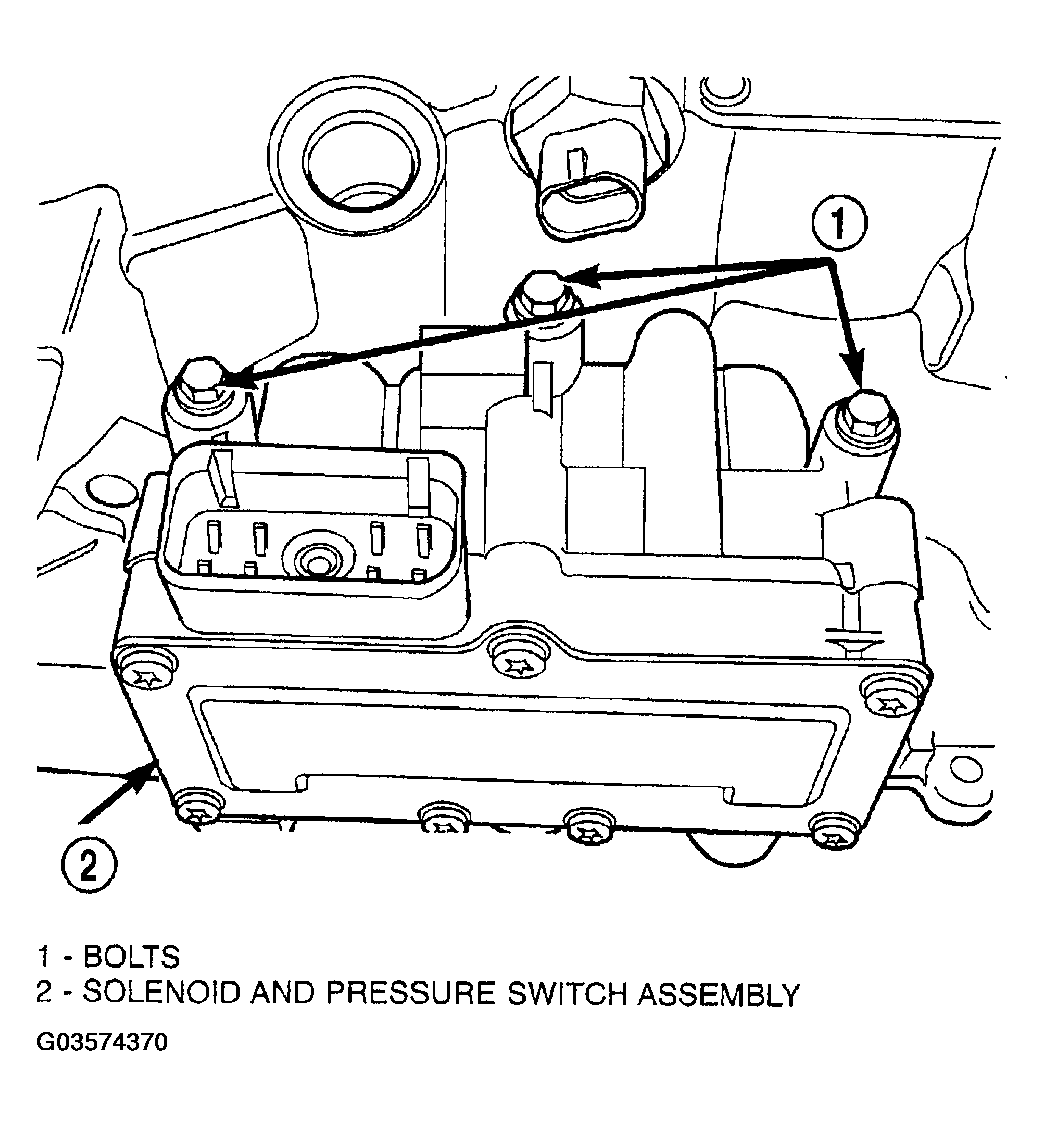

  2. Install and torque three (3) bolts (Figure) to 13 N.m (110 in. lbs.).

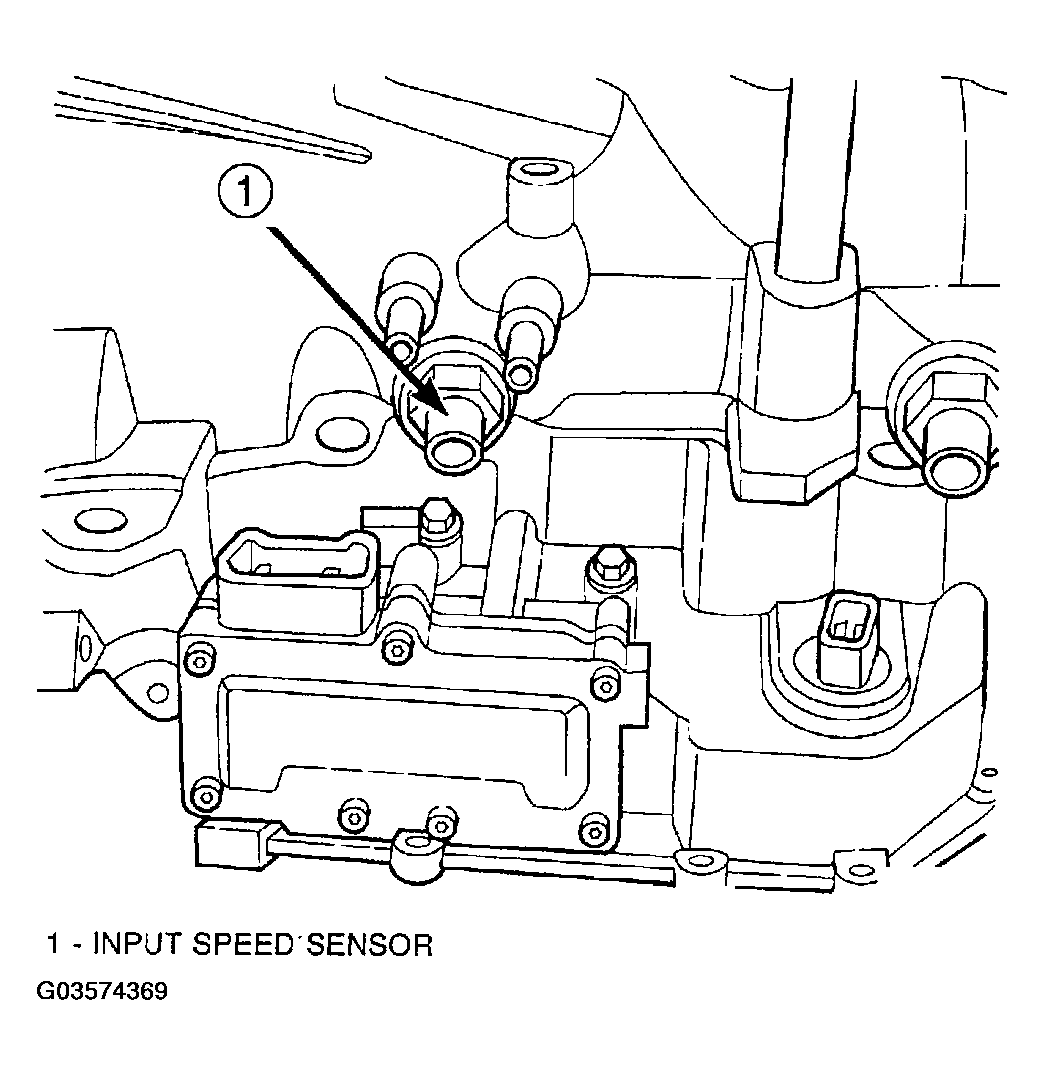

  3. Install input speed sensor (Figure) and torque to 27 N.m (20 ft. lbs.).

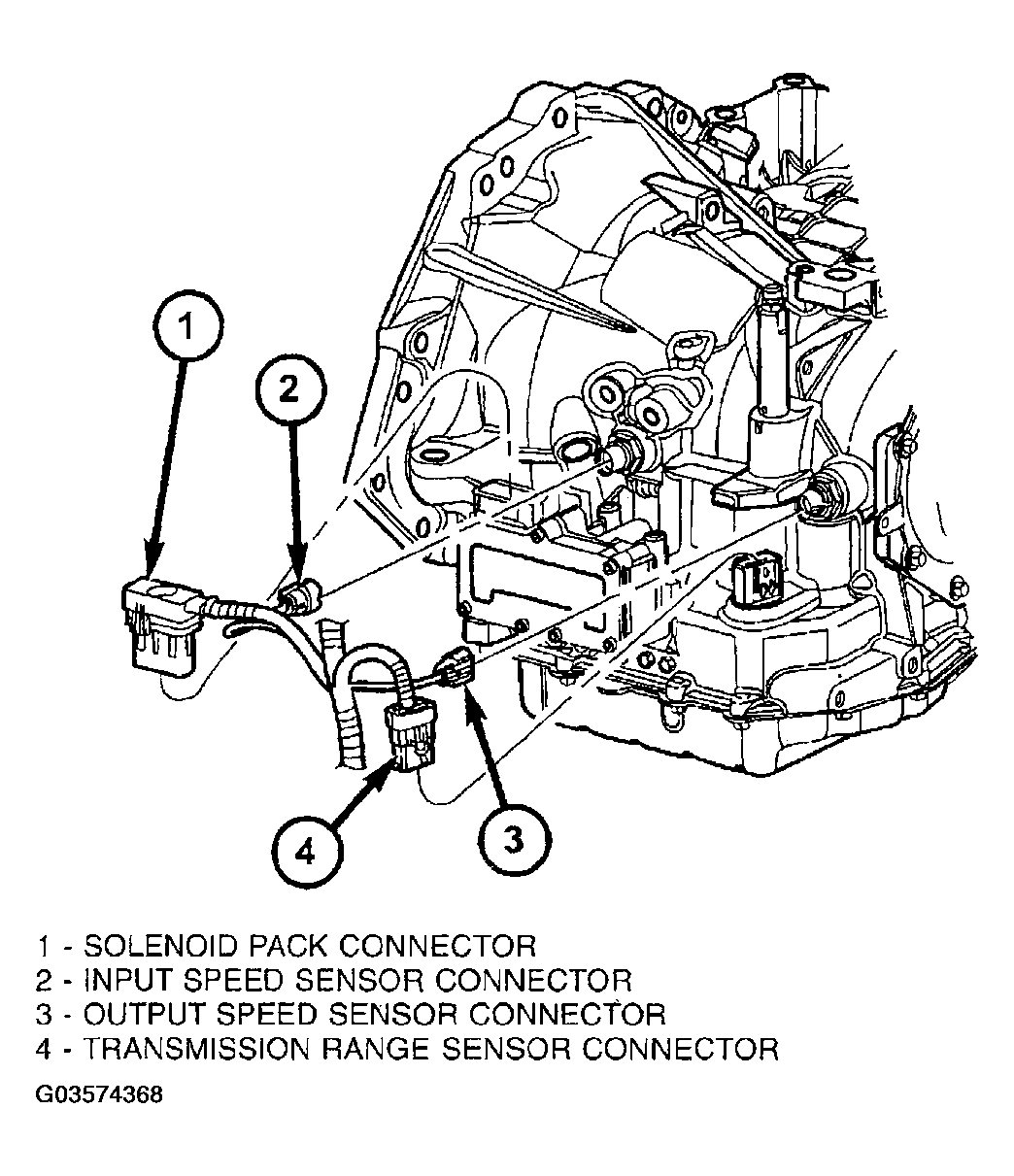

  4. Connect input speed sensor connector (Figure).
  5. Install solenoid/pressure switch 8-way connector and torque to 4 N.m (35 in. lbs.) (Figure).
  6. Install air cleaner assembly.
  7. Connect battery negative cable.
  8. If solenoid/pressure switch assembly was replaced, perform TCM Quick Learn procedure. (Refer to STANDARD PROCEDURE - QUICK LEARN PROCEDURE )
