Shift Mechanism: Removal

Remove gearshift knob. Loosen set-screw and remove knob (Fig 1).

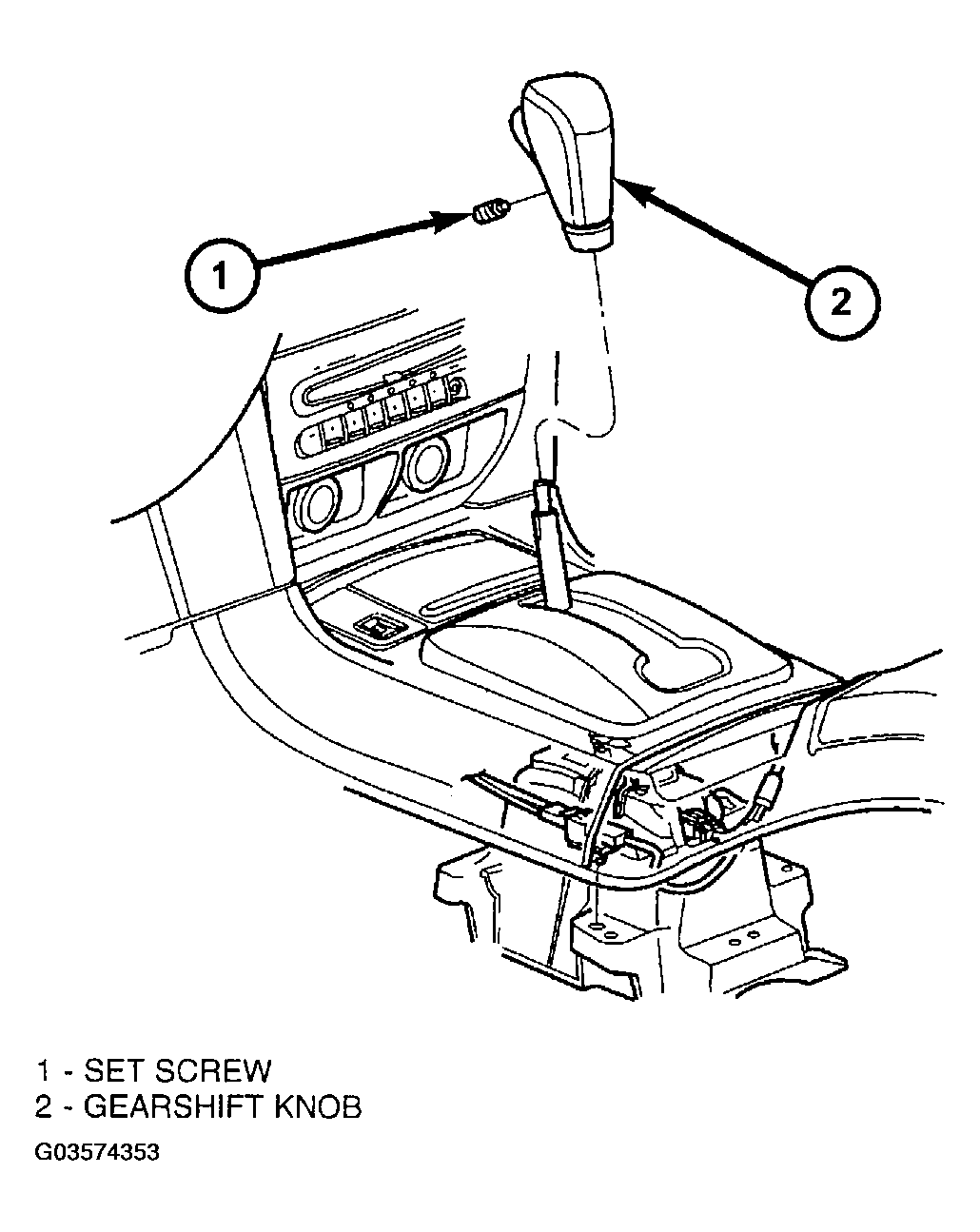

Fig 1: Removing Gearshift Knob
Courtesy of DAIMLERCHRYSLER CORP.
Remove gearshift bezel. Disconnect lamp connector (Fig 2).
Remove PRNDL surround bezel (Fig 3). If equipped, disconnect traction control switch connector.
Remove front center console assembly as shown in (Fig 4).

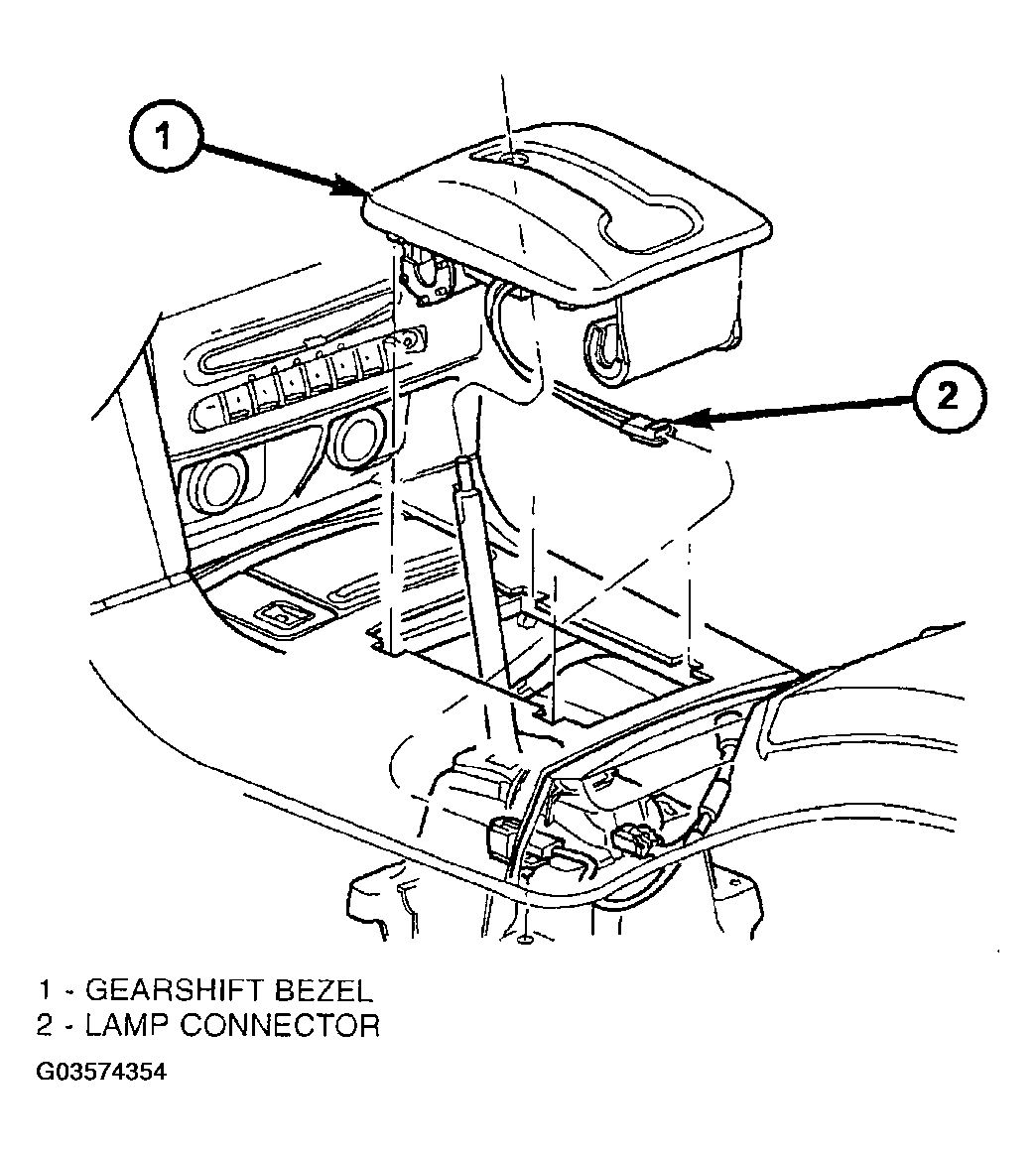

Fig 2: Removing Gearshift Bezel
Courtesy of DAIMLERCHRYSLER CORP.

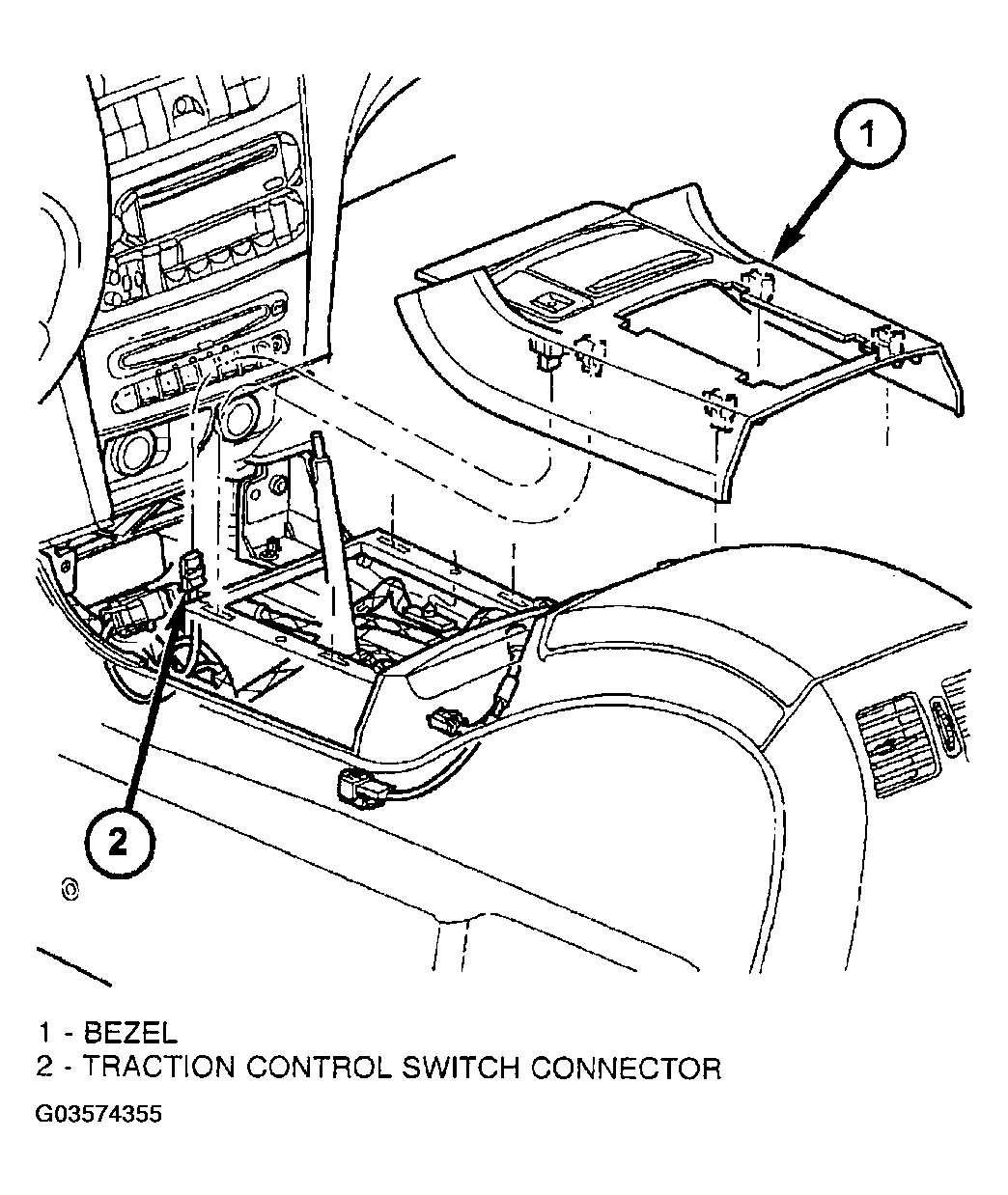

Fig 3: Removing PRNDL Surround Bezel
Courtesy of DAIMLERCHRYSLER CORP.

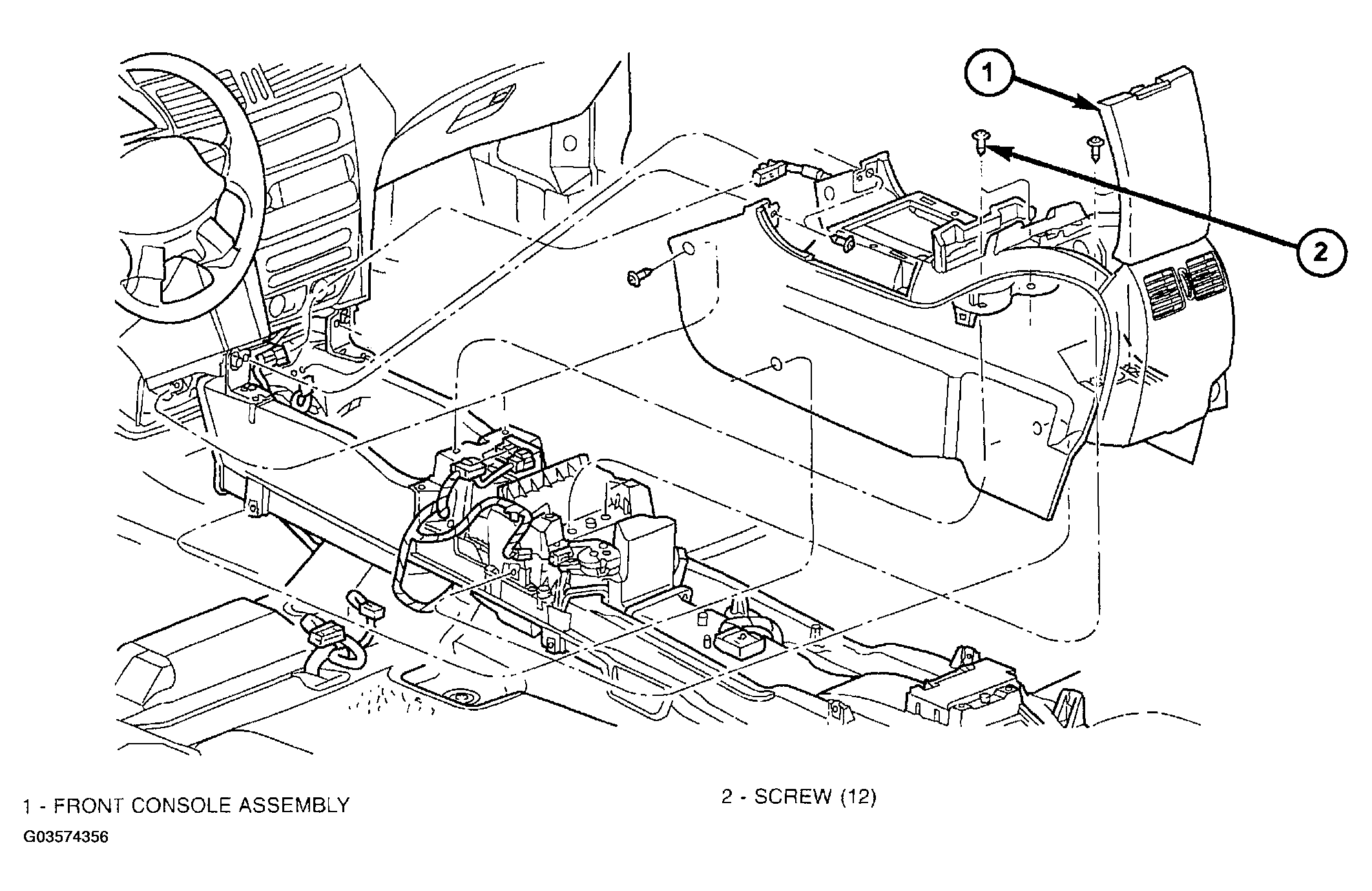

Fig 4: Removing Front Floor Console
Courtesy of DAIMLERCHRYSLER CORP.
Disconnect BTSI cable from shift mechanism (Fig 5).

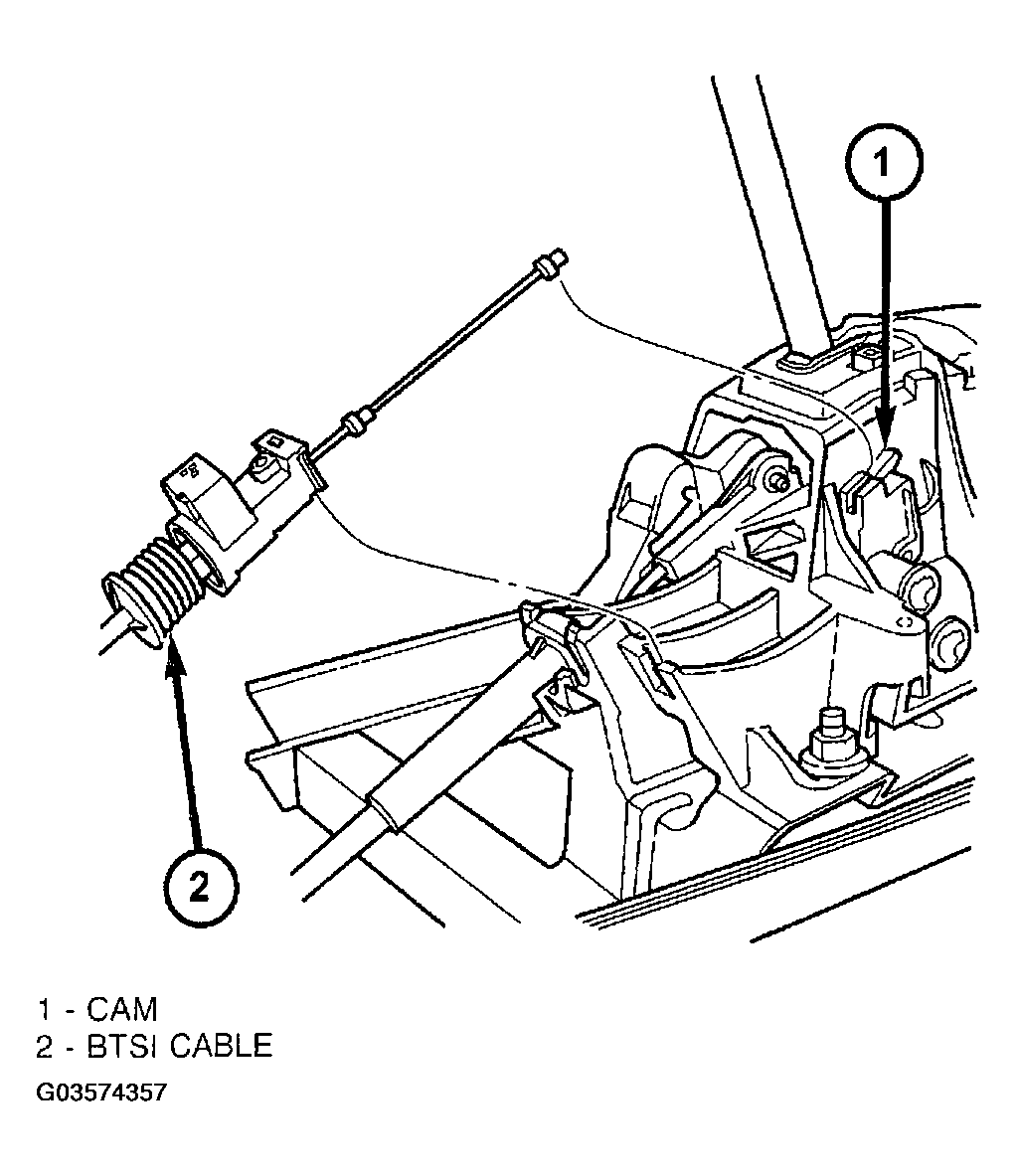

Fig 5: Disconnecting BTSI Cable From Shift Mechanism
Courtesy of DAIMLERCHRYSLER CORP.
Disconnect and remove gearshift cable from shift mechanism (Fig 6).

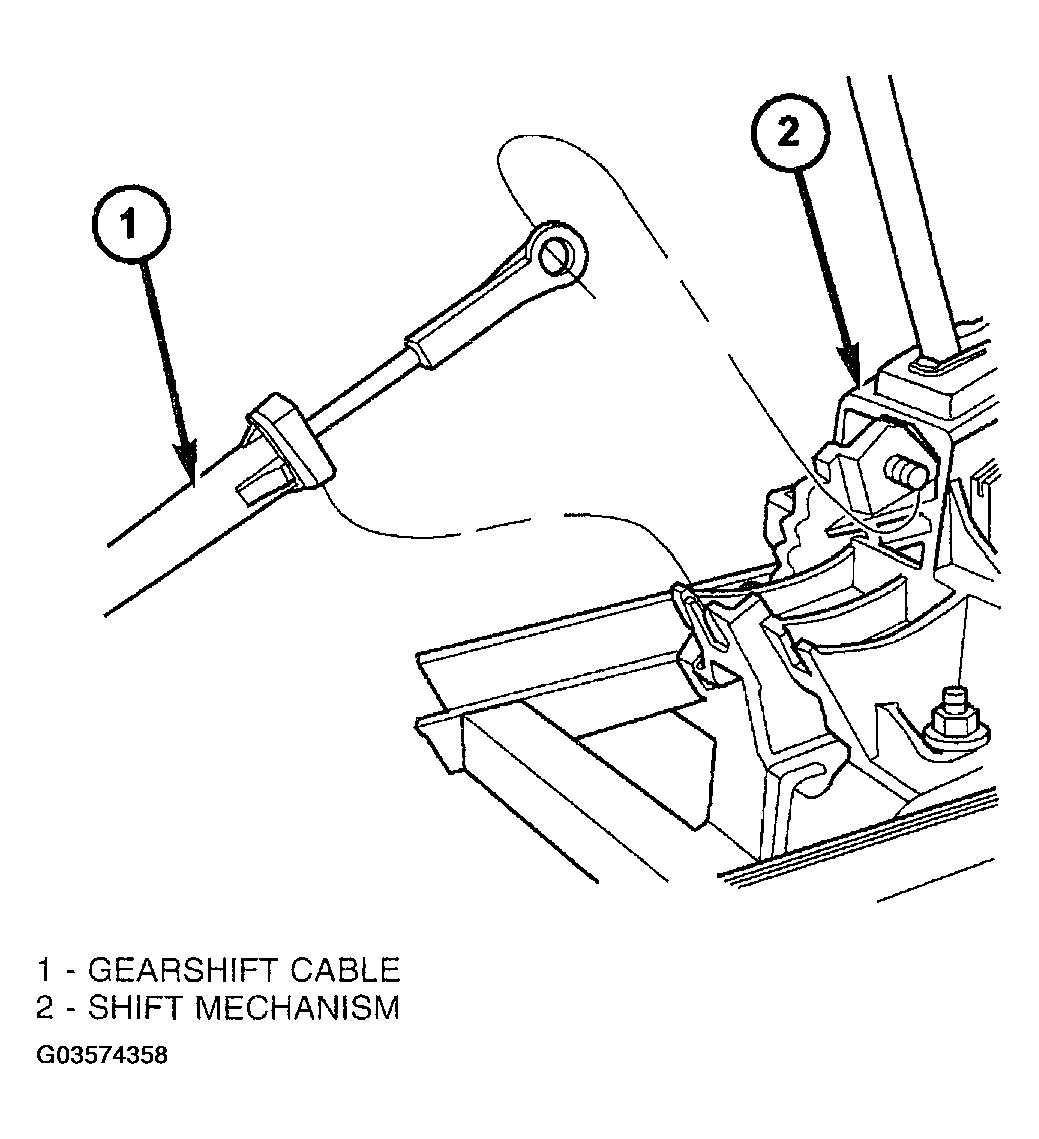

Fig 6: Removing Gearshift Cable From Shift Mechanism
Courtesy of DAIMLERCHRYSLER CORP.
Disconnect Autostick switch connector.
Remove four (4) shift mechanism-to-lower console nuts. Remove shift mechanism (Fig 7).

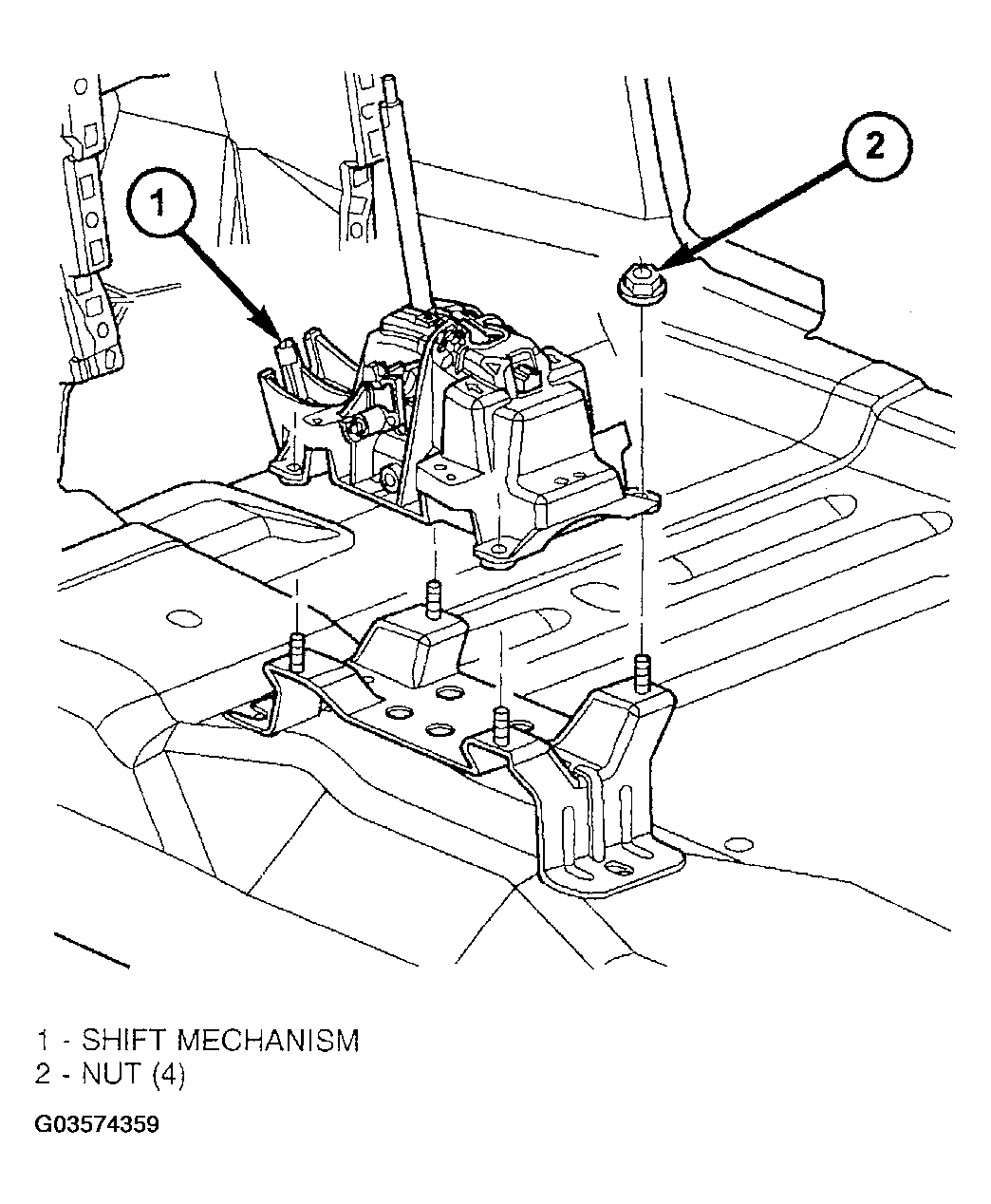

Fig 7: Removing Gearshift Mechanism
Courtesy of DAIMLERCHRYSLER CORP.
