Oil Pump: Assembly

  1. Assemble oil pump as shown in (Fig 1)
  2. Install and torque reaction shaft support-to-oil pump housing bolts to 28 N.m (20 ft. lbs.) torque.

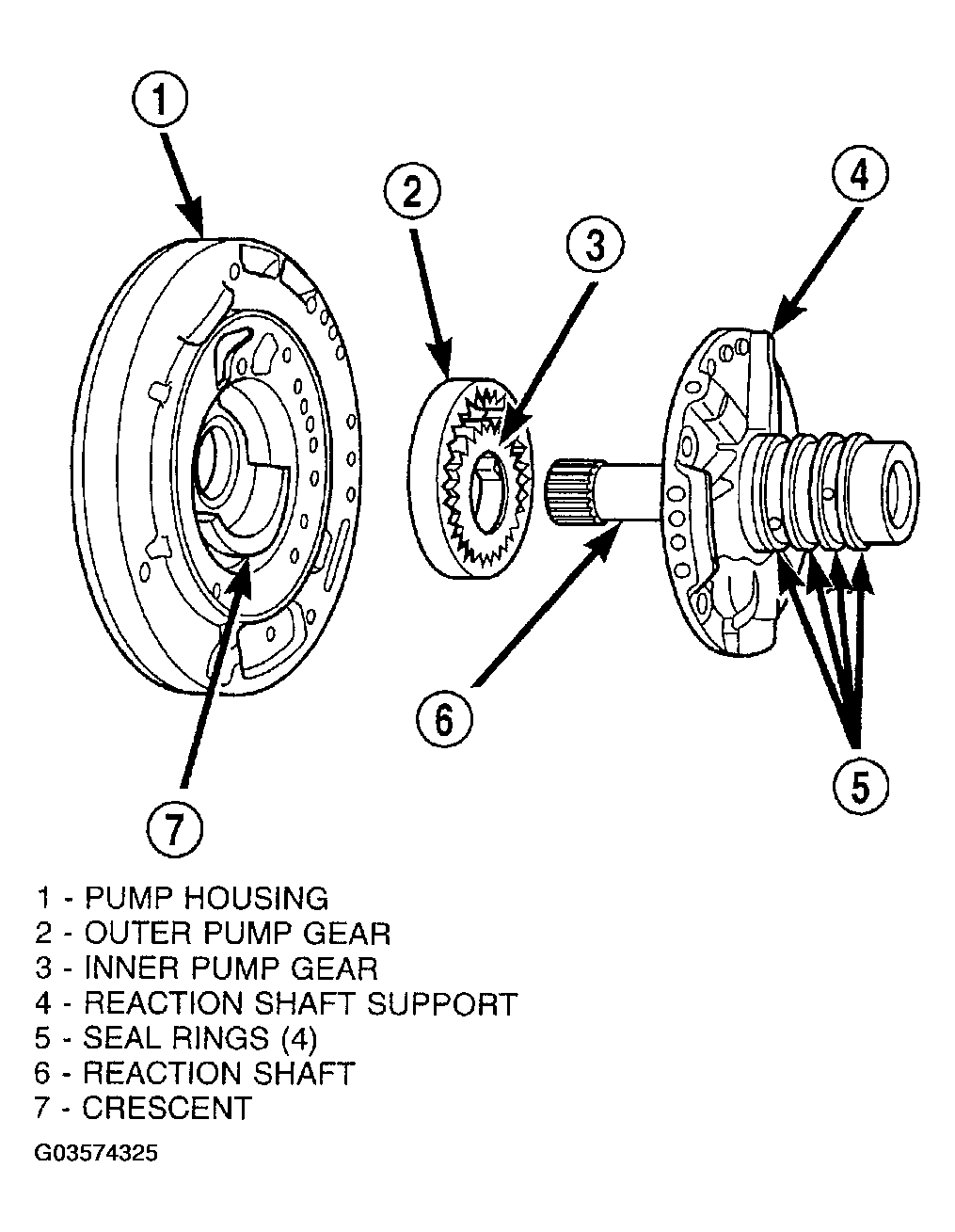

    Fig 1: Identifying Oil Pump Assembly
    G03574325Courtesy of DAIMLERCHRYSLER CORP.
