Gear Shift Bezel: Installation

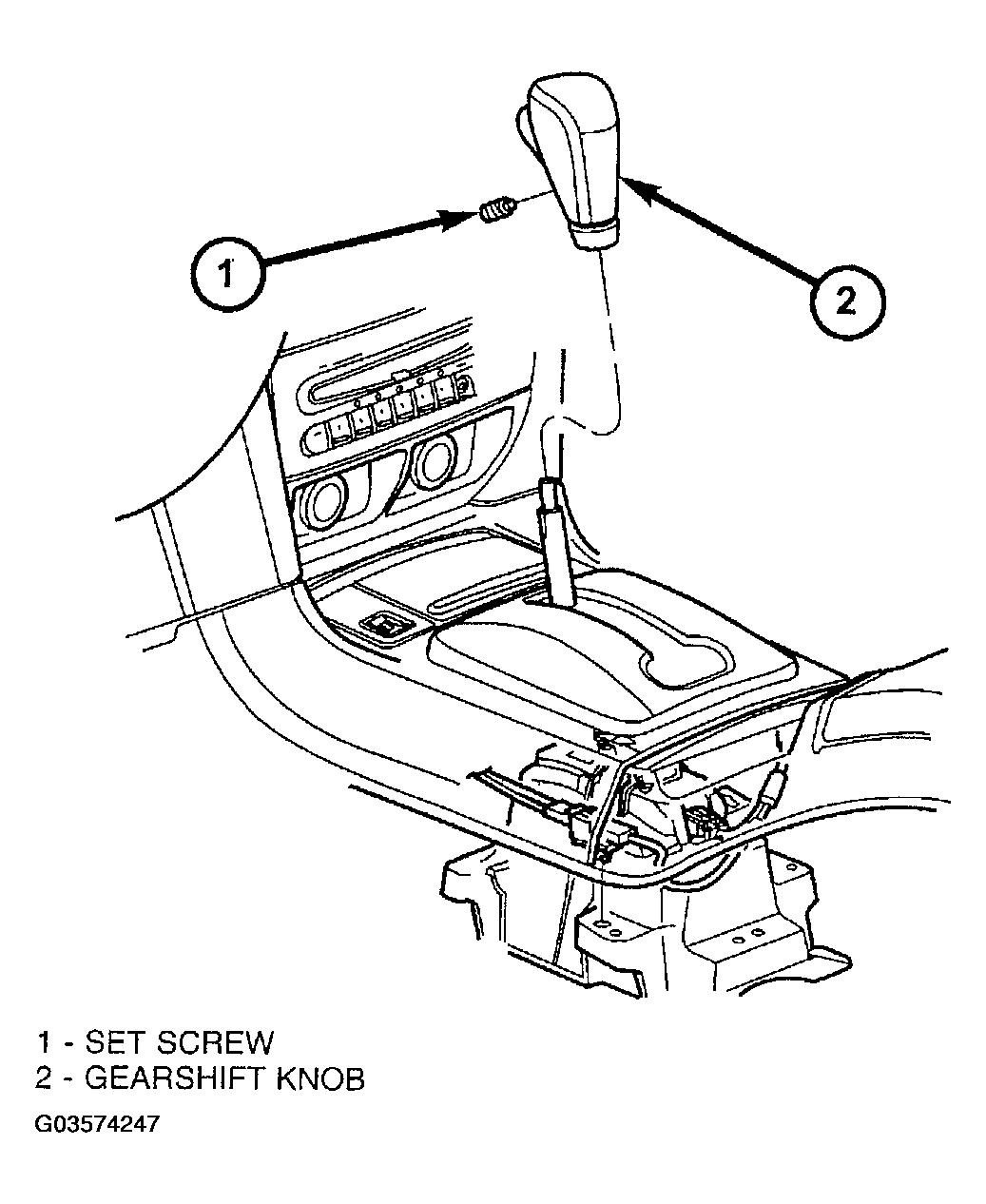

  1. Connect lamp and install gearshift bezel assembly (Figure).
  2. Install gearshift knob (Figure). Torque gearshift knob-to-mechanism set-screw to 2 N.m (20 in. lbs.).
