Powertrain Control Module C2 - Black/Orange 38 Way

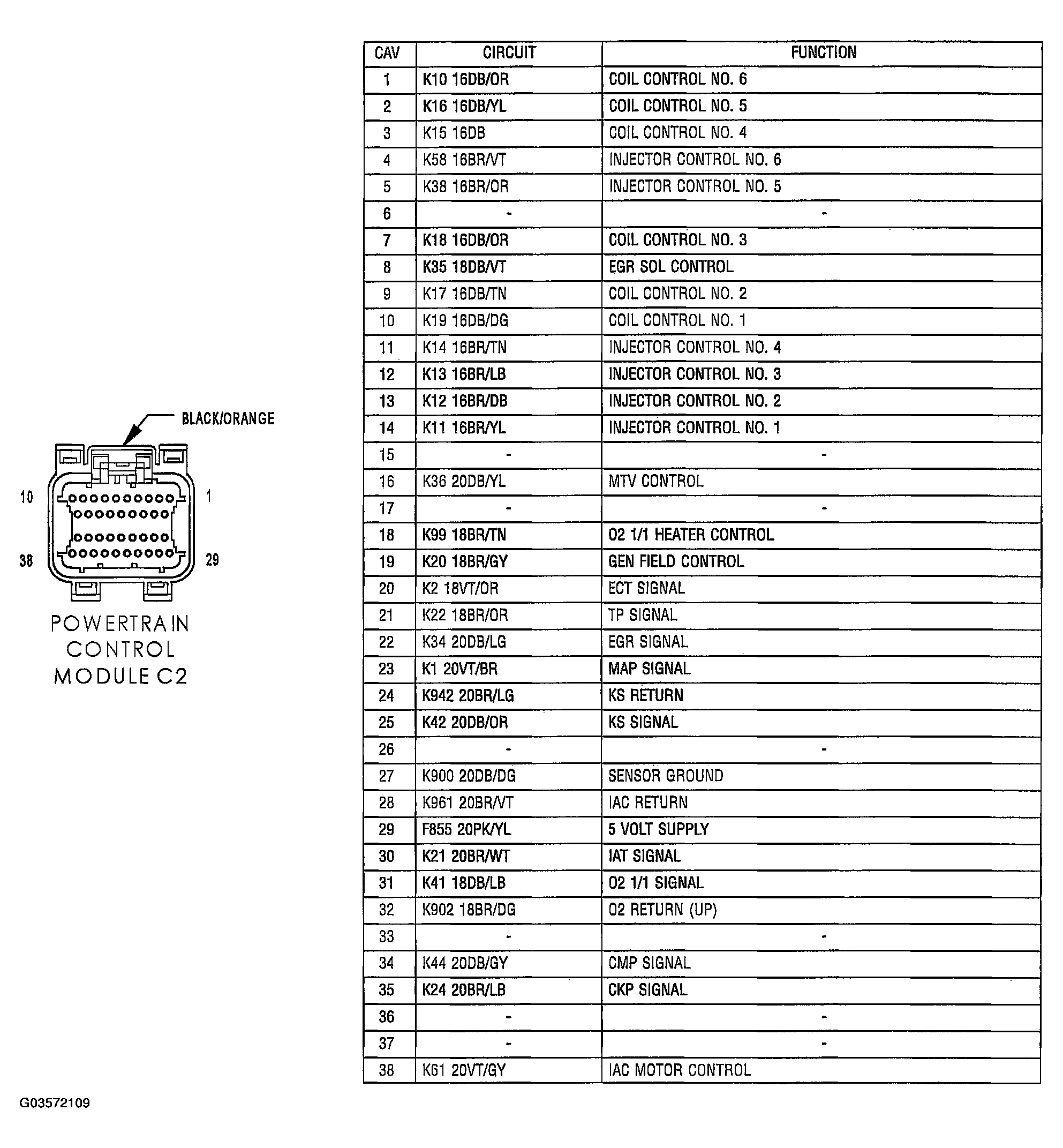

Fig 1: Identifying Powertrain Control Module C2 - Black/Orange 38 Way Connectors

G03572109

Courtesy of DAIMLERCHRYSLER CORP.
