Power Steering Pump: Reservoir: Installation
- Slide fluid reservoir over lower mounting bolt and into place on engine.

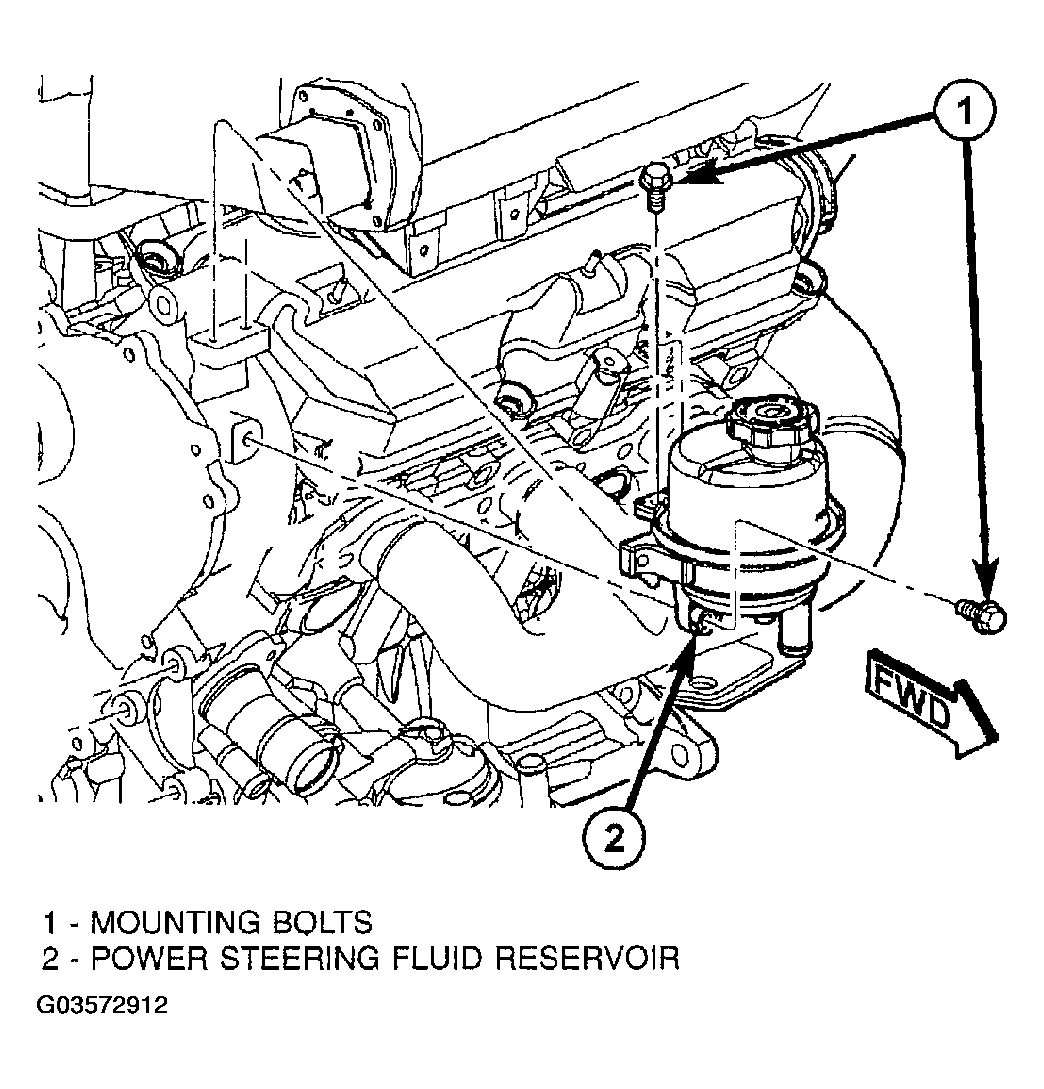

- Install two upper mounting bolts securing reservoir in place (Fig 2
).
- Tighten all three reservoir mounting bolts to 12 N.m (105 in. lbs.) torque.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.

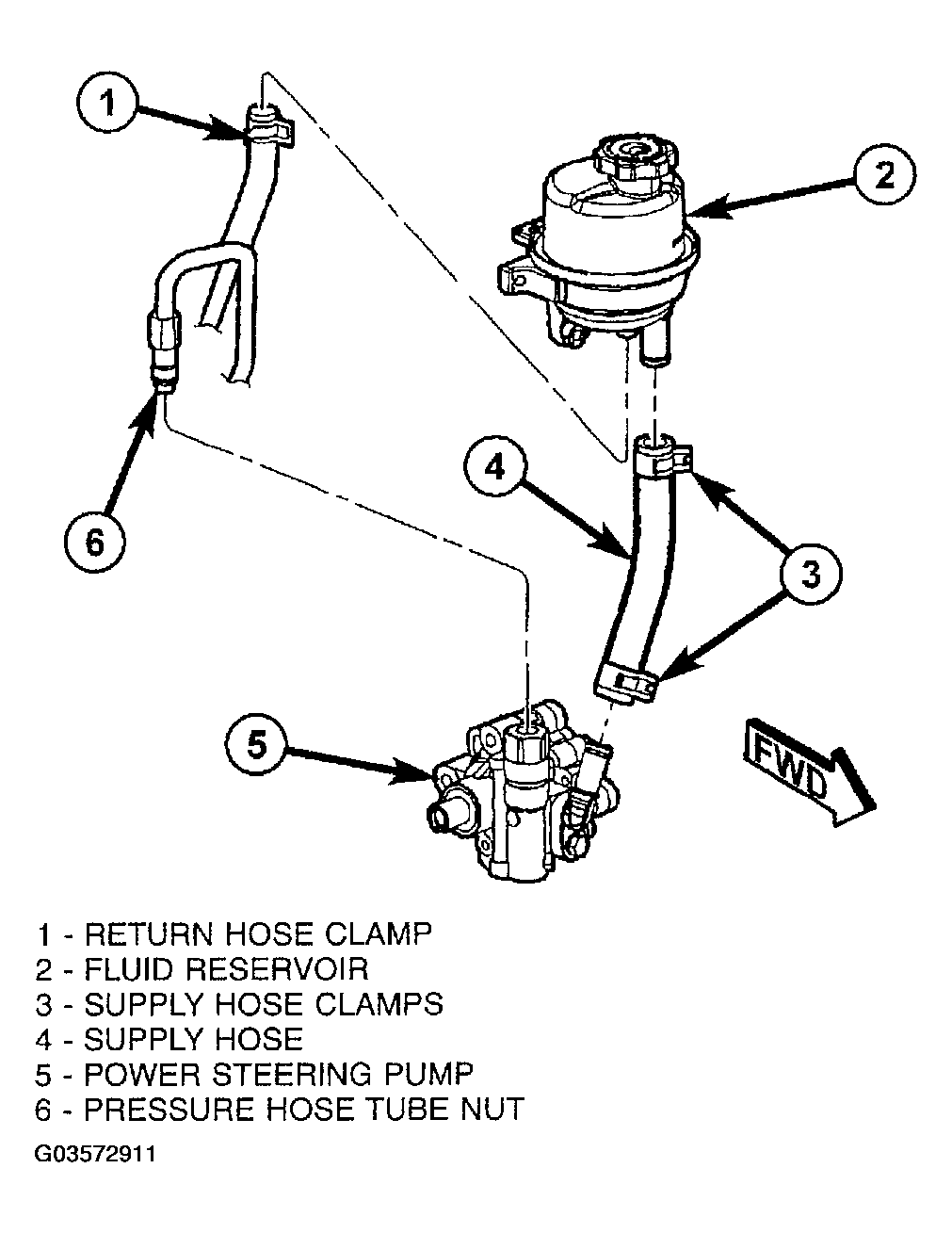

- Install supply hose onto reservoir (Fig 1
). Slide hose clamp into position on fluid reservoir and attach it. Be sure hose clamp in installed past bead on fluid reservoir fitting.

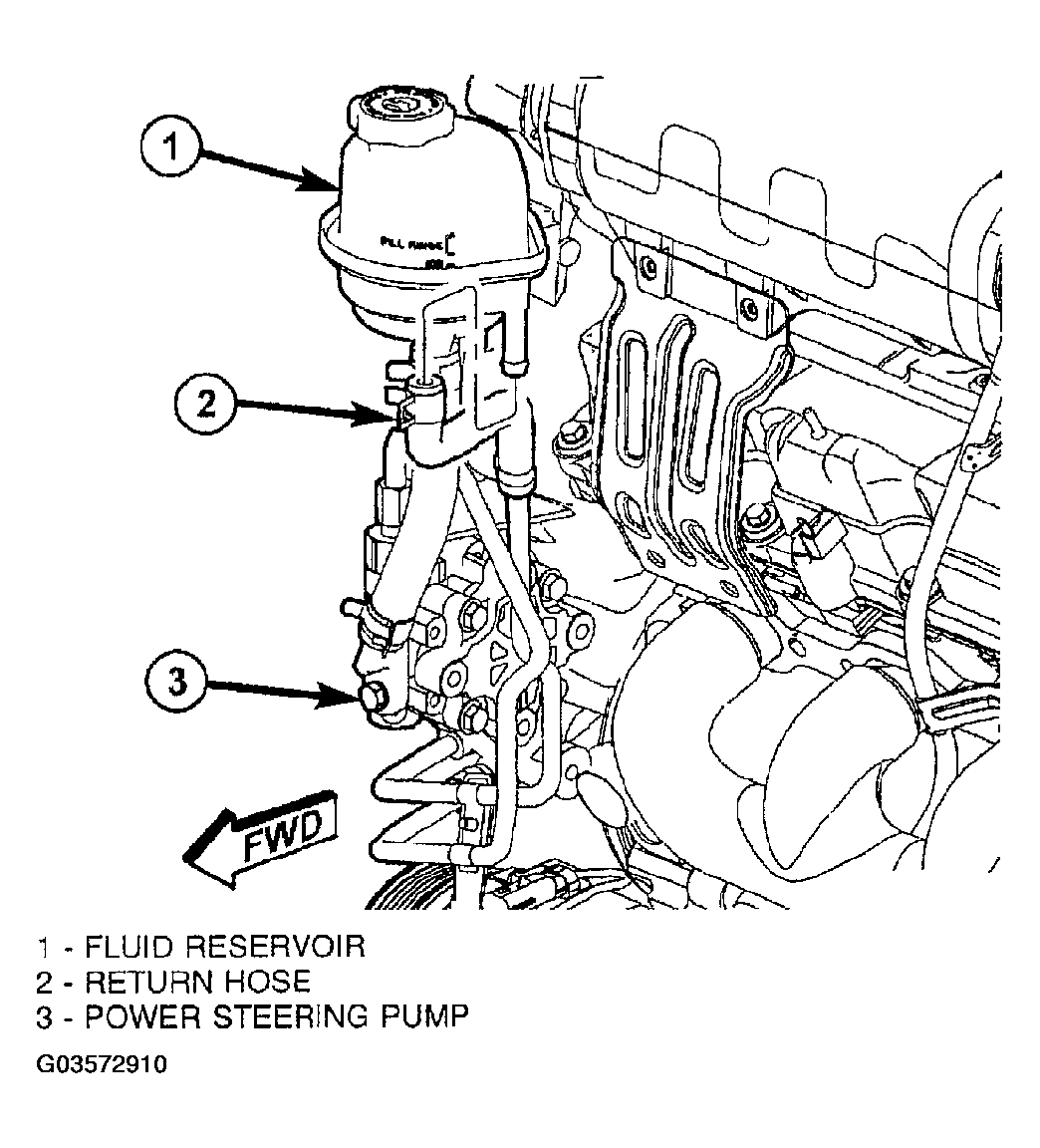

- Install return hose onto reservoir (Figure
). Slide hose clamp into position on fluid reservoir and attach it. Be sure hose clamp in installed past bead on fluid reservoir fitting.
- Install engine appearance cover.
- Connect negative (-) battery cable on negative battery post.
- Fill and bleed power steering system using Power Steering Pump Initial Operation Procedure. (Refer to STANDARD PROCEDURE - POWER STEERING PUMP INITIAL OPERATION
)
- Inspect system for leaks.
