Powertrain Control Module C2 - Black/Orange 38 Way Connector End View

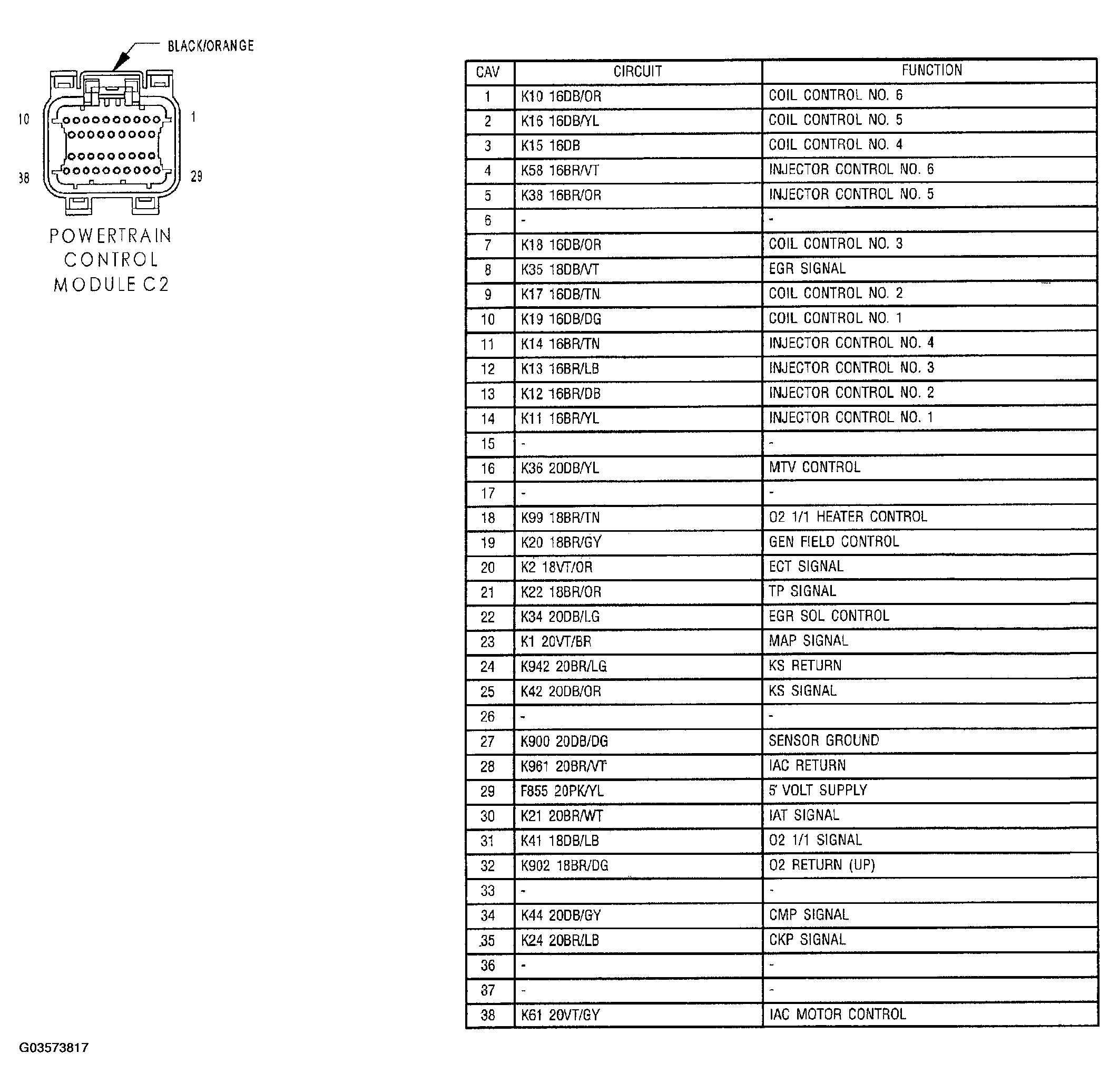

Fig 1: Powertrain Control Module Connector End View (C2)

G03573817

Courtesy of DAIMLERCHRYSLER CORP.
