Hands Free Module - Gray 22 Way Connector End View

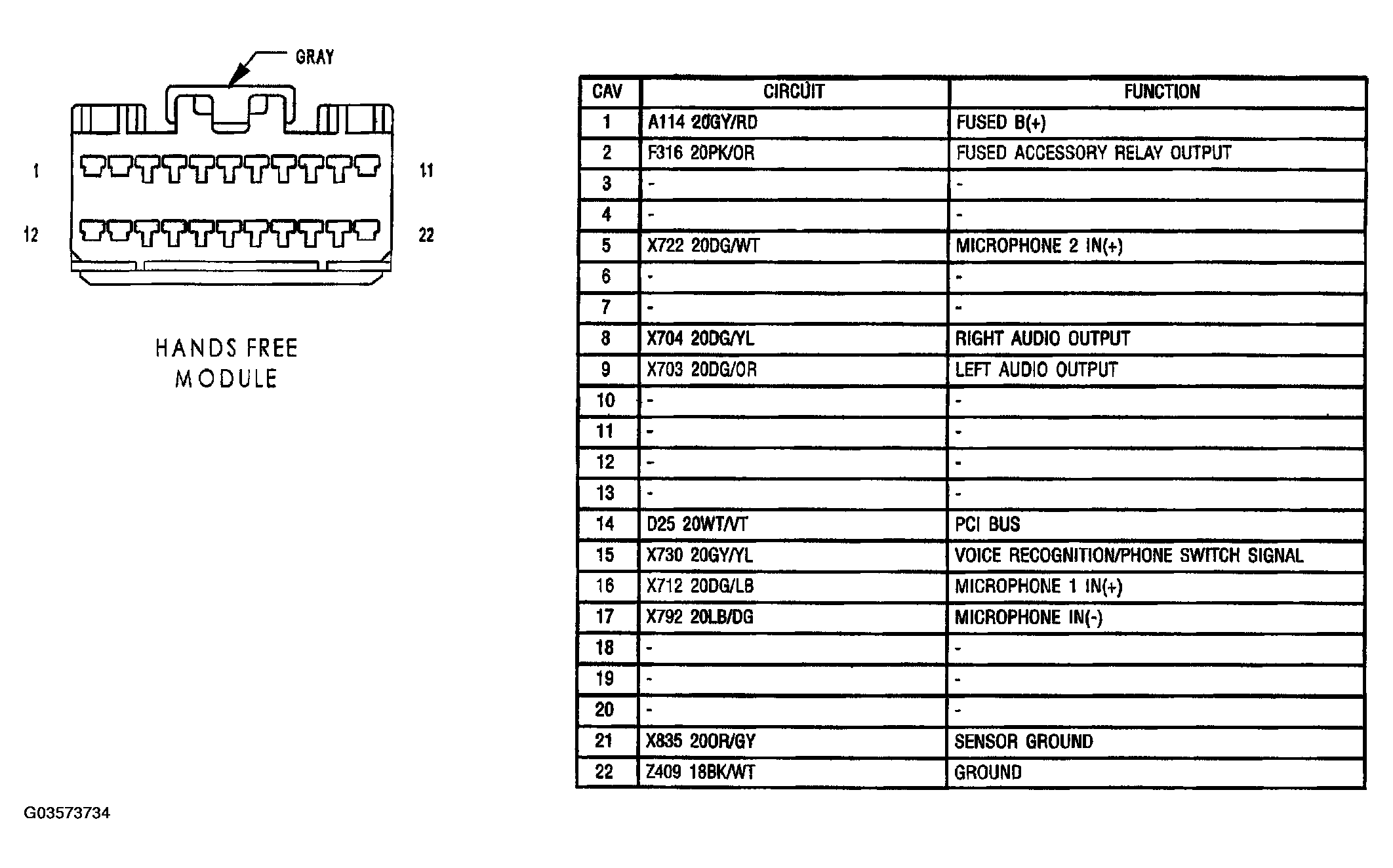

Fig 1: Hands Free Module Connector End View

G03573734

Courtesy of DAIMLERCHRYSLER CORP.
