Body Control Module C2 - Black/Green 34 Way Connector End View

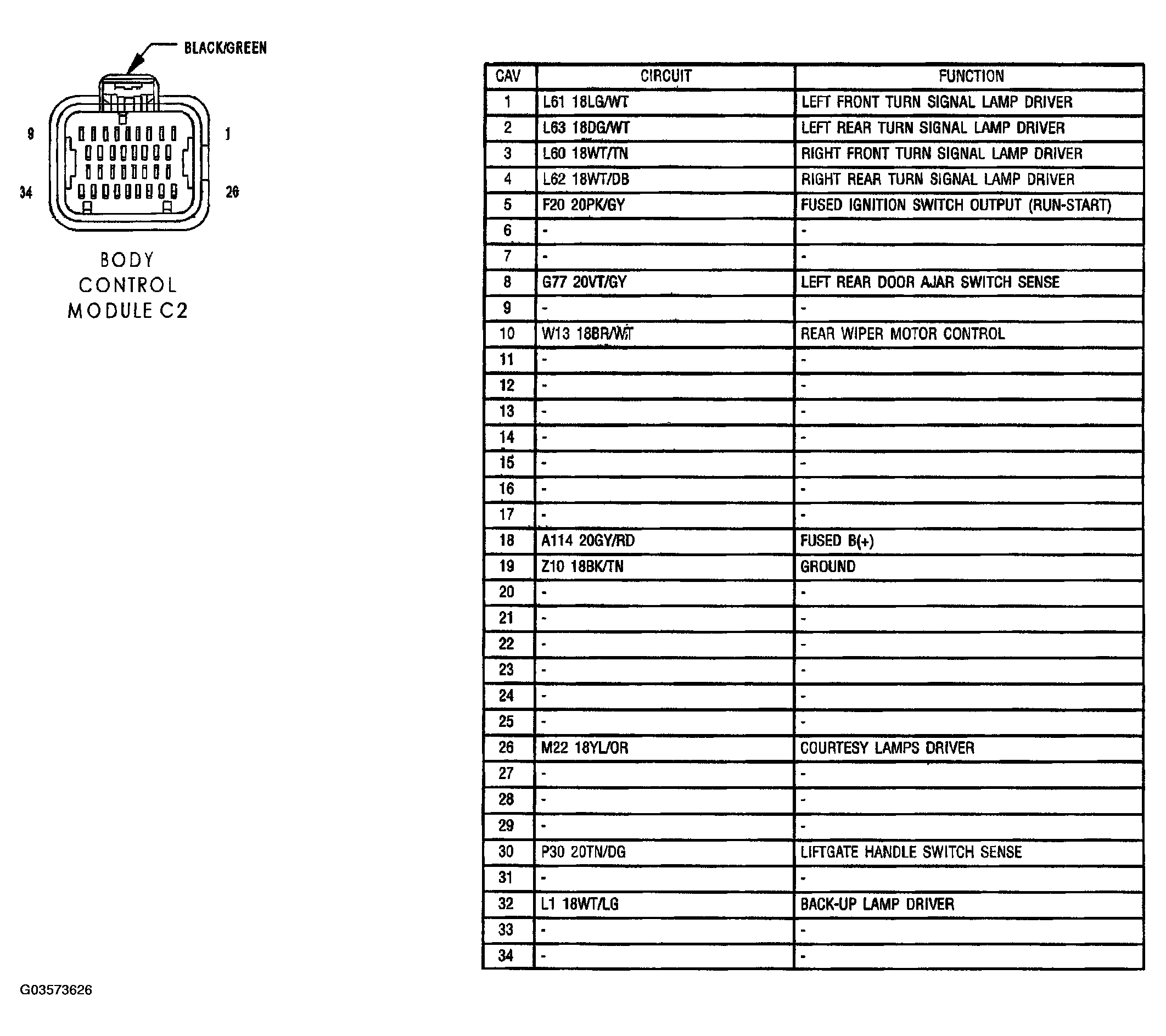

Fig 1: Body Control Module Connector End View (C2)

G03573626

Courtesy of DAIMLERCHRYSLER CORP.
