Natural Vacuum Leak Detection Assembly Connector End Views
Natural Vacuum Leak Detection Assembly Connector End Views

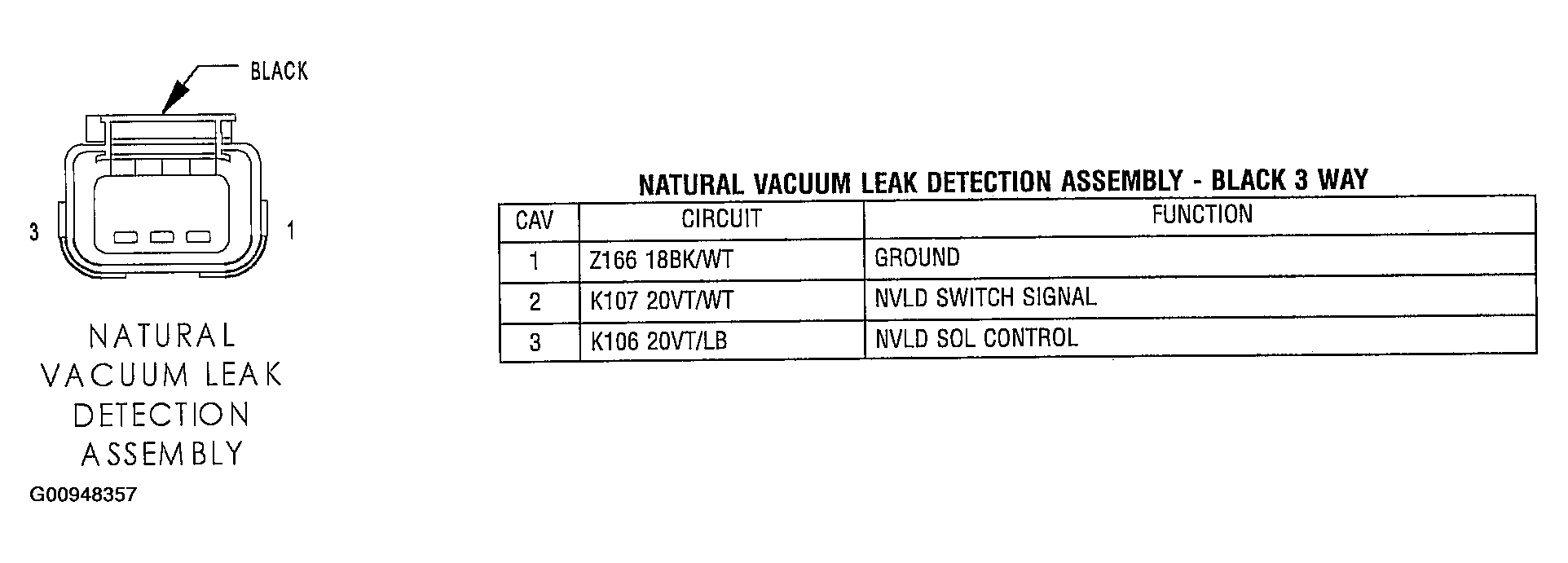

Fig 1: Identifying Natural Vacuum Leak Detection Assembly - Black 3 Way Connector
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
