Structural Cover: Installation
CAUTION:
The collar must be tightened using this service procedure, as damage to collar and/or oil pan may occur.

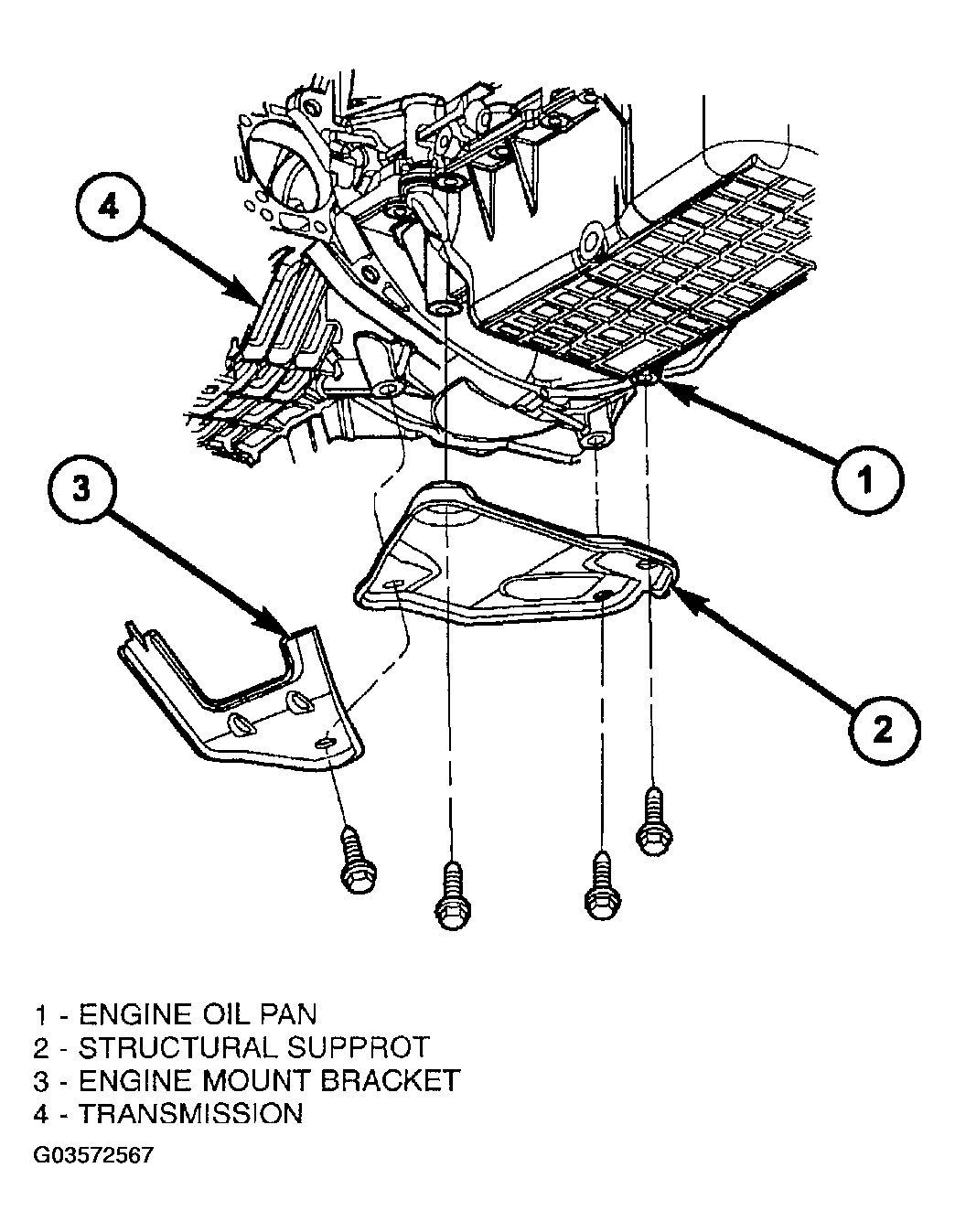

- Install structural collar (Figure
) using the following tightening sequence:
- Loosely install the collar to oil pan bolts.
- Loosely install the collar to transmission bolts.
- Initial torque bolts to 27 N.m (20 ft. lbs.).
- Final torque bolts to 55 N.m (40 ft. lbs.).
- Lower vehicle.
