Oil Pressure Sensor/Switch: Installation

  1. Apply Mopar(R) Thread Sealant to the switch threads.

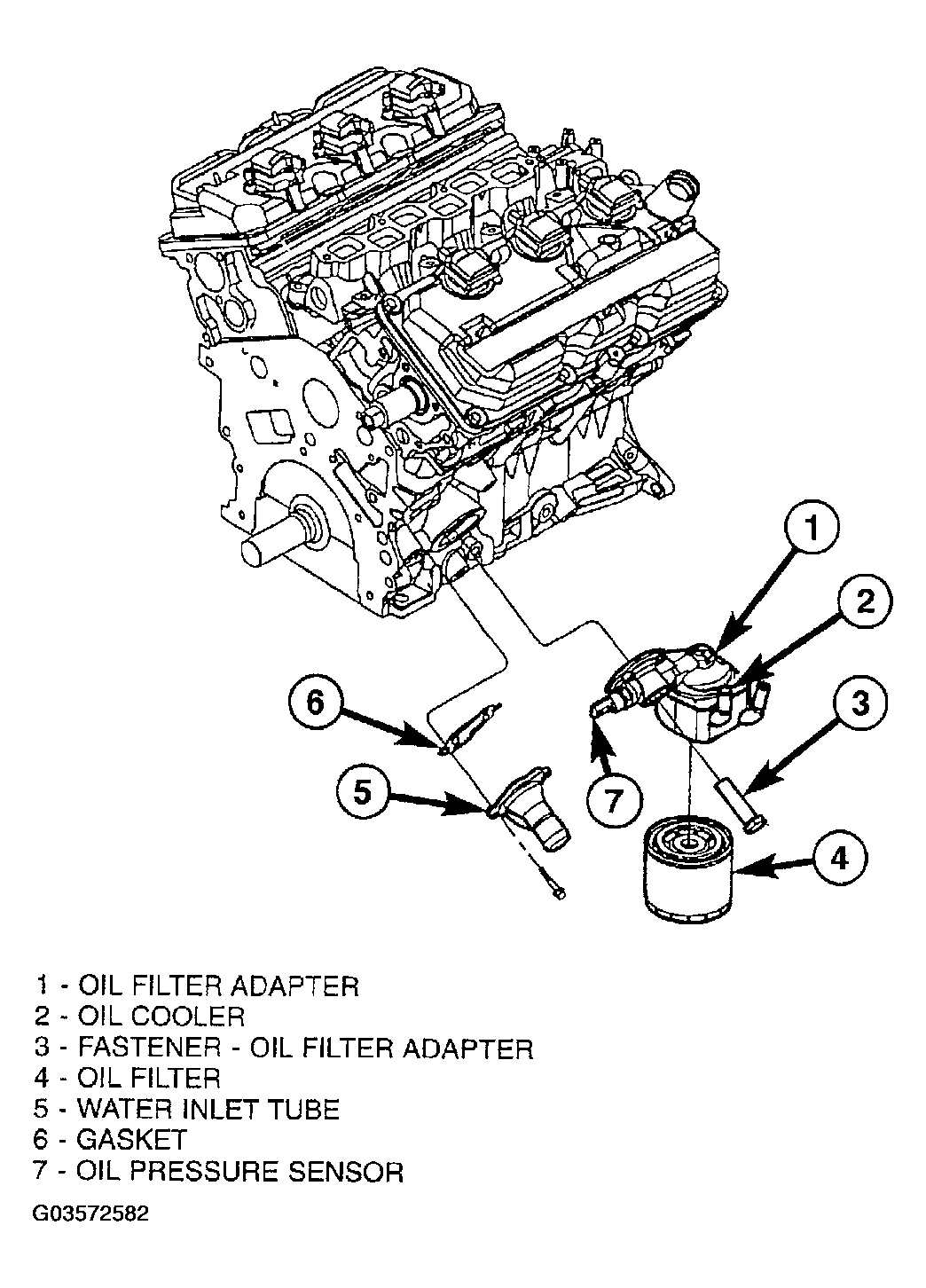

  2. Install oil pressure switch to fitting (Figure ).
  3. Connect electrical connector.
  4. Lower vehicle.
  5. Start engine and check for leaks.
  6. Check engine oil level and adjust as neccessary.
