Liftgate Handle Switch - Black 2 Way Connector End View

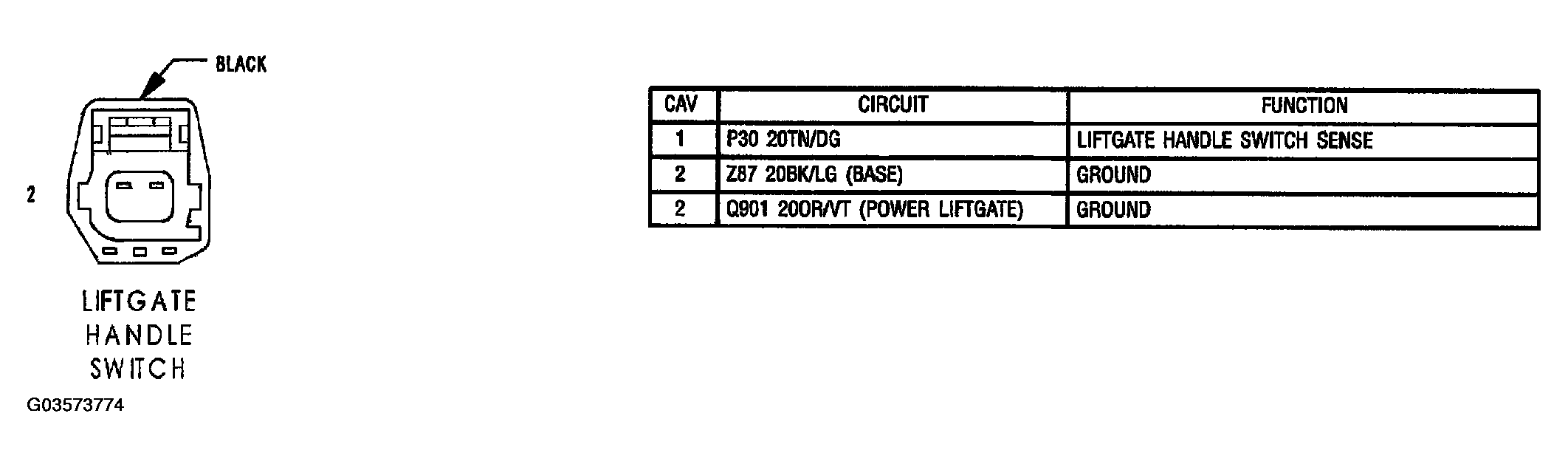

Fig 1: Liftgate Handle Switch Connector End View

G03573774

Courtesy of DAIMLERCHRYSLER CORP.
