Instrument Panel Top Cover: Installation

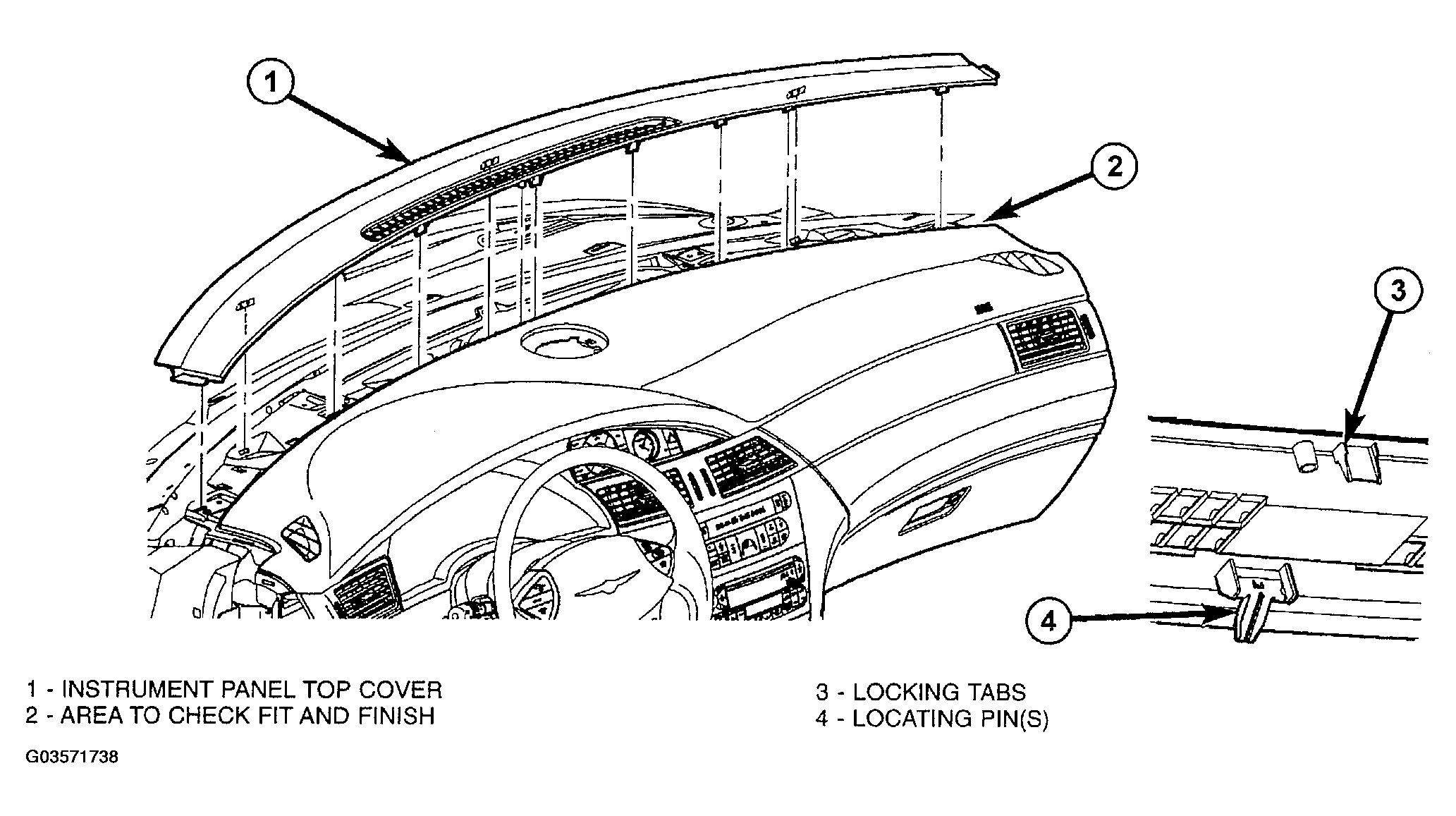

  1. Place instrument panel top cover into position (Figure ).
  2. Push top cover forward to engage mounting clips front of top cover.
  3. Pulling top cover rearward to engage locking tabs until tight against instrument panel while applying downward hand pressure.
  4. Check for proper fit and finish.
  5. Install A-pillar trim. (Refer to A-PILLAR TRIM ).
