Instrument Panel Floor Bracket: Installation

  1. Place floor bracket into position.

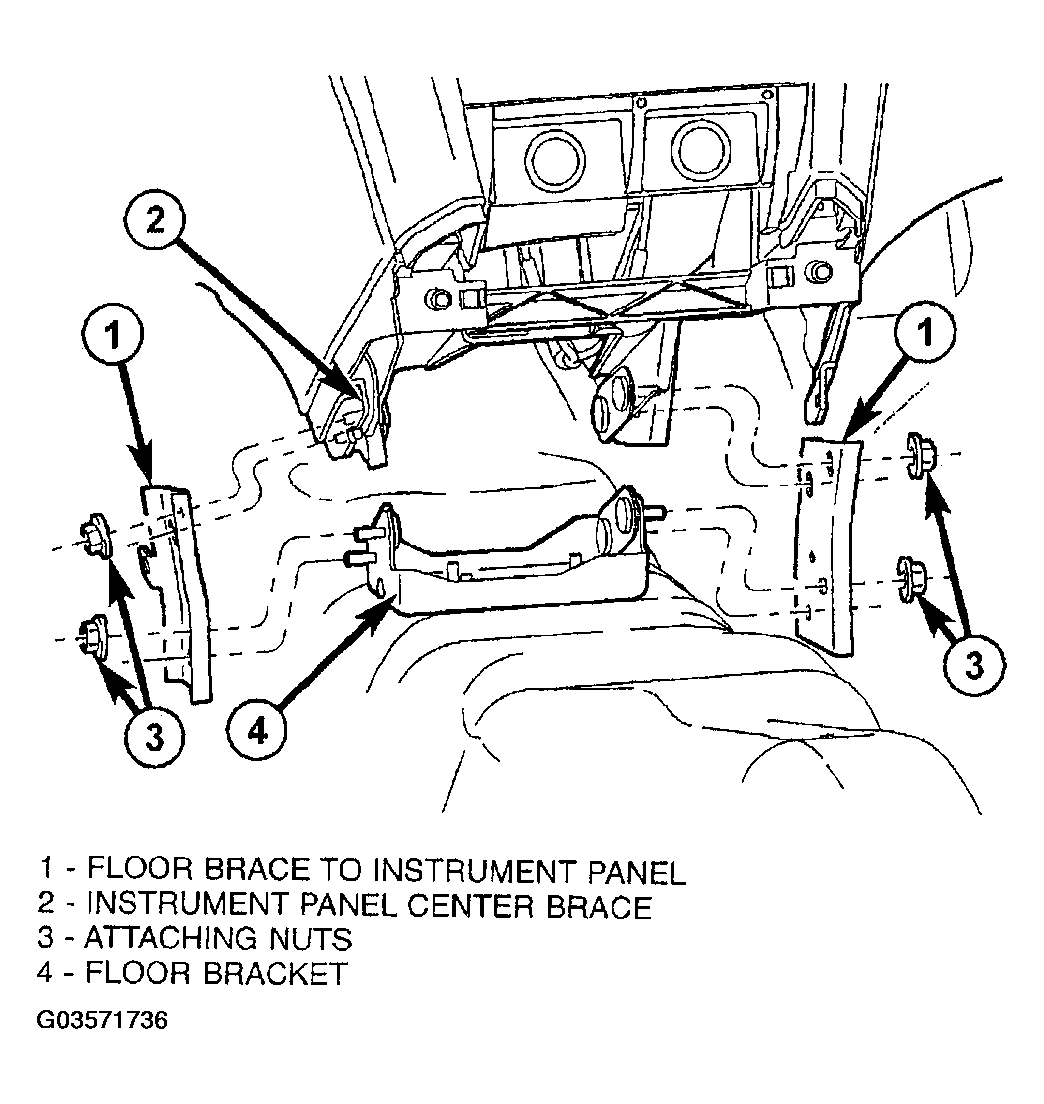

  2. Install attaching nuts (Figure ).
  3. Place right and/or left floor brace into position.
  4. Install brace(s) attaching nuts.
  5. Install center console closeout panel.(Refer to CENTER CONSOLE CLOSEOUT PANEL )
  6. Install front floor console. (Refer to FRONT FLOOR CONSOLE ).
