Instrument Panel Center Bezel: Installation

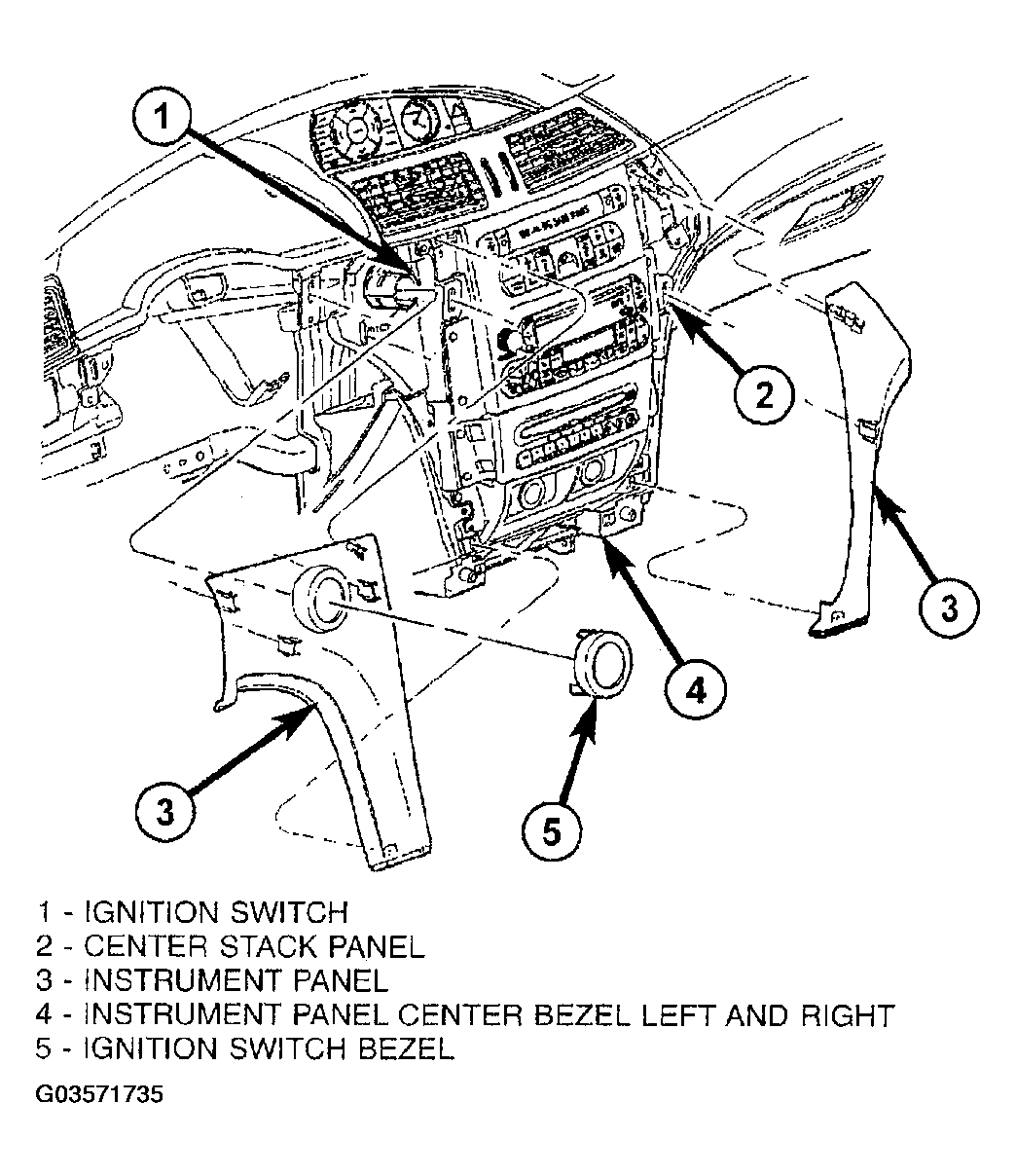

  1. Place instrument panel center bezel(s) right and left side into position (Figure ).
  2. Apply pressure on instrument panel center bezel right and/or left side to engage the locking tabs.
  3. Install ignition switch bezel.
