Integrated Power Module C9 - Blue 26 Way Connector End View

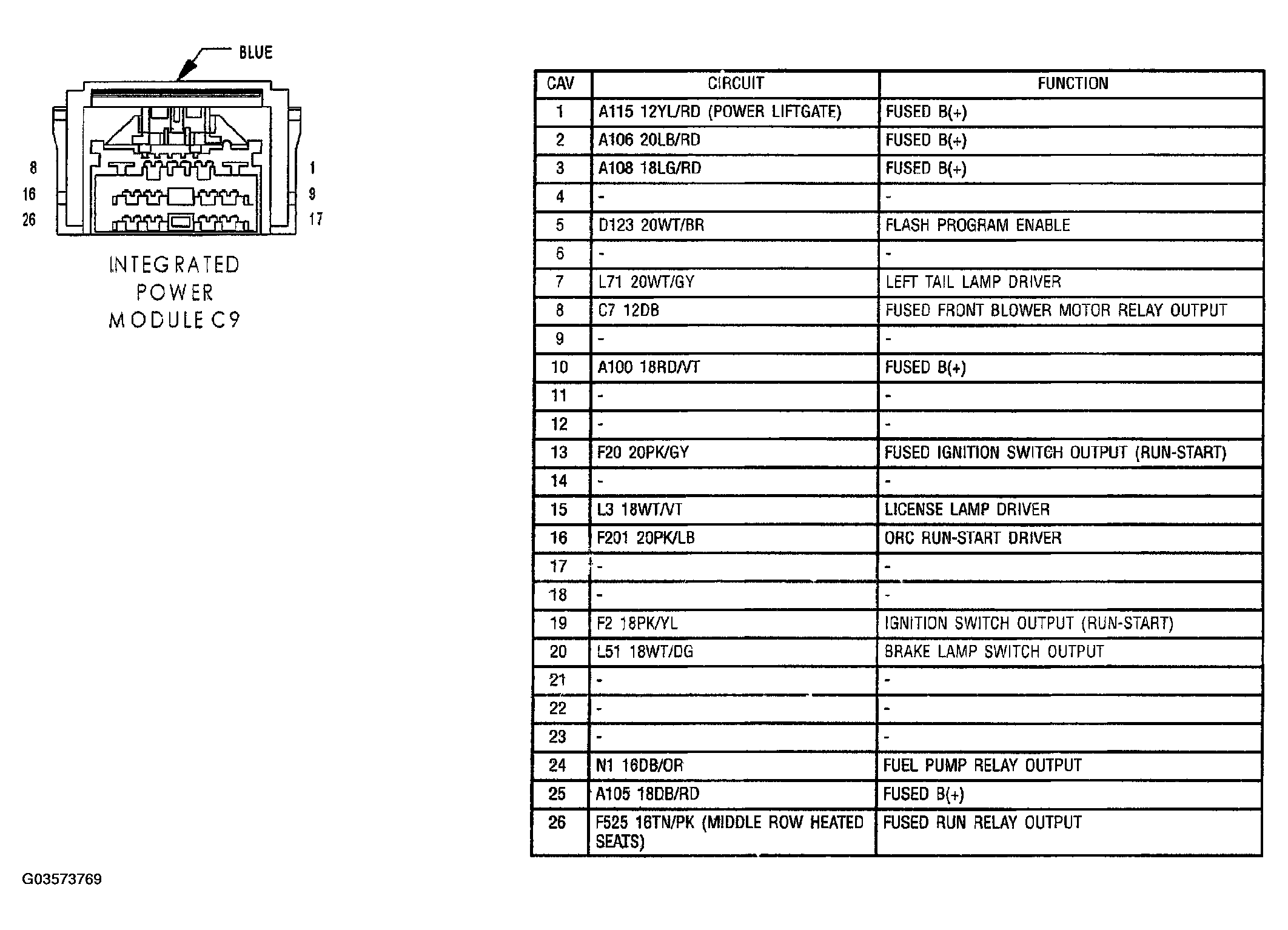

Fig 1: Integrated Power Module Connector End View (C9)

G03573769

Courtesy of DAIMLERCHRYSLER CORP.
