Fuel Pump Module - Black 6 Way Connector End View

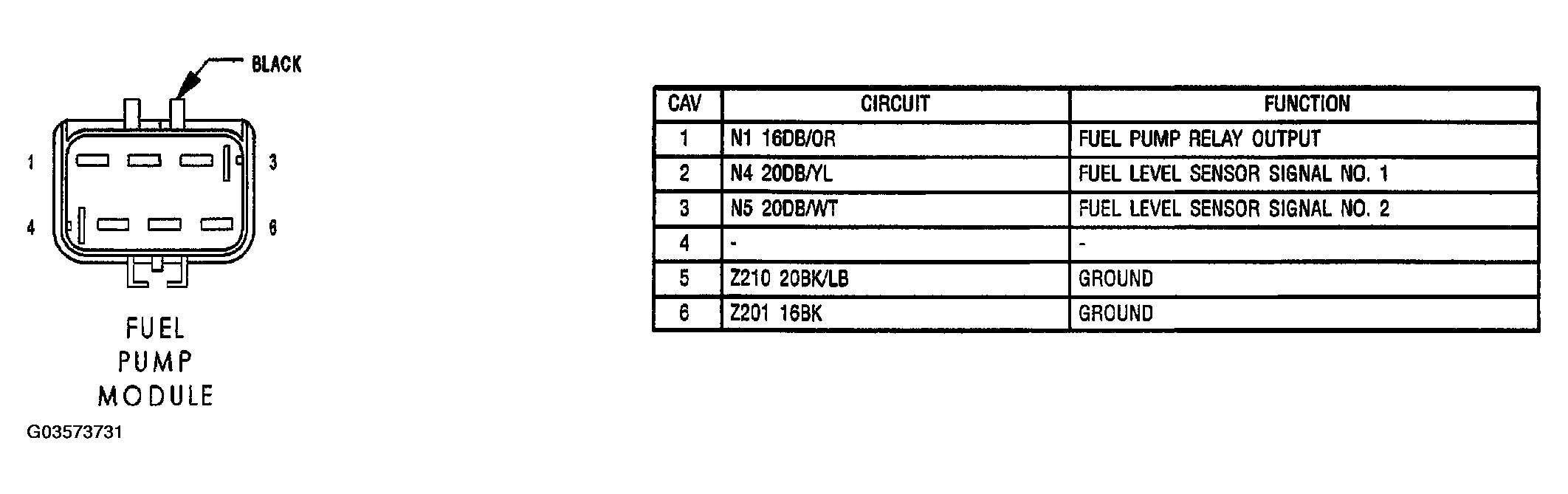

Fig 1: Fuel Pump Module Connector End View

G03573731

Courtesy of DAIMLERCHRYSLER CORP.
